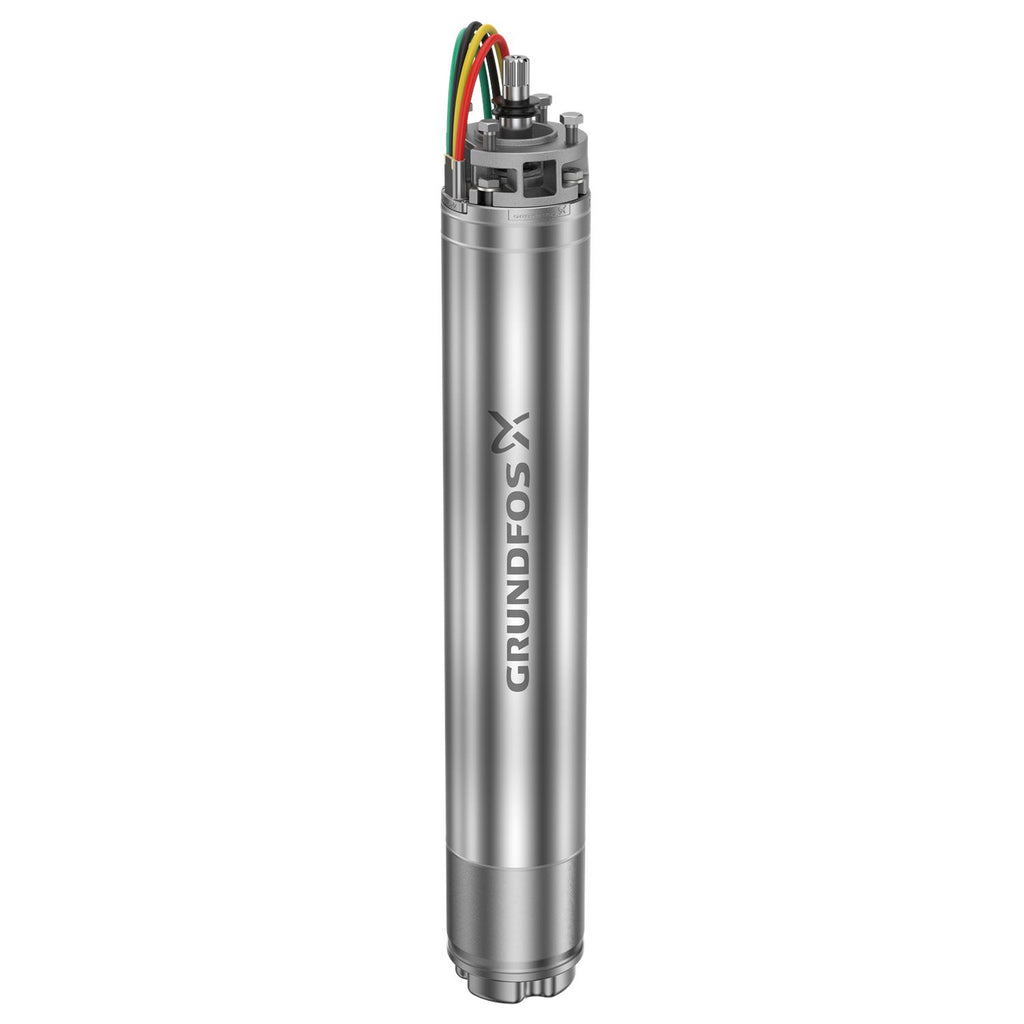

Grundfos 99445229 - MS6000QFXT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 99445229

Price:
Sale price$3,241.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99445229 - MS6000QFXT40 is a high-efficiency submersible motor designed for demanding well and dewatering applications. This MS6000-series motor suits technicians and installers replacing larger submersible motor units.

Key features

  • Single-phase canned-type motor with sand shield for extended operation in sandy environments
  • Fits 6" and larger submersible motor installations and related Grundfos controls & accessories
  • Liquid-lubricated bearings and pressure-equalizing diaphragm provide reliable cooling and pressure balance for longer service life

Applications

Typical uses include deep well pumps, dewatering systems, and larger submersible pump assemblies where a robust, serviceable motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99445229

EAN 5713829240131
Applications Motors
Axial load max 27 kN
Breakdown torque 2
Built-in motor protection NONE
Built-in temp. transmitter no
CE approved (Yes/No) N
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
KVA code D
Locked-rotor torque 1
Mains frequency 60 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Maximum current consumption 27.5 A
Model C
Moment of inertia 0.107 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 83.8 lb
Power factor 1 0.98
Product family MS6000
Rated current 27.5 A
Rated full-load torque 1 8.629 ft lb
Rated power - P2 4 kW
Rated speed 3500 rpm
Rated voltage 1 x 230 V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Service factor 1.15
Shaft seal for motor SIC/SICNBR
Start. method direct-on-line
Starting current 3.9
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +10/-10 %
Windings Enamelled

Motor Curves

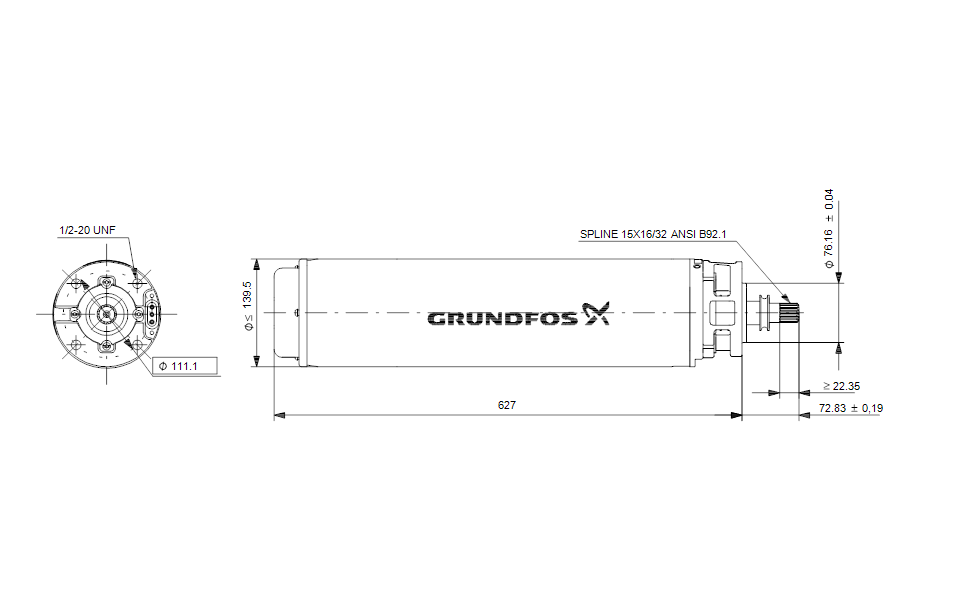

Dimensional Drawing

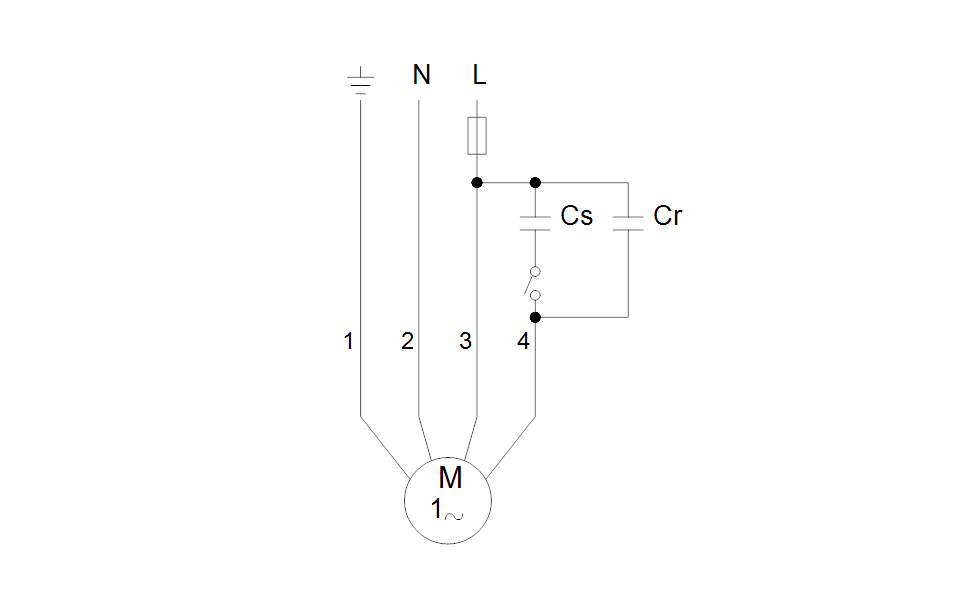

DWiring Diagram
