Grundfos 96446900 - In-line Water meter with pulse signal

This item ships free!
GRUNDFOSSKU: 96446900

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

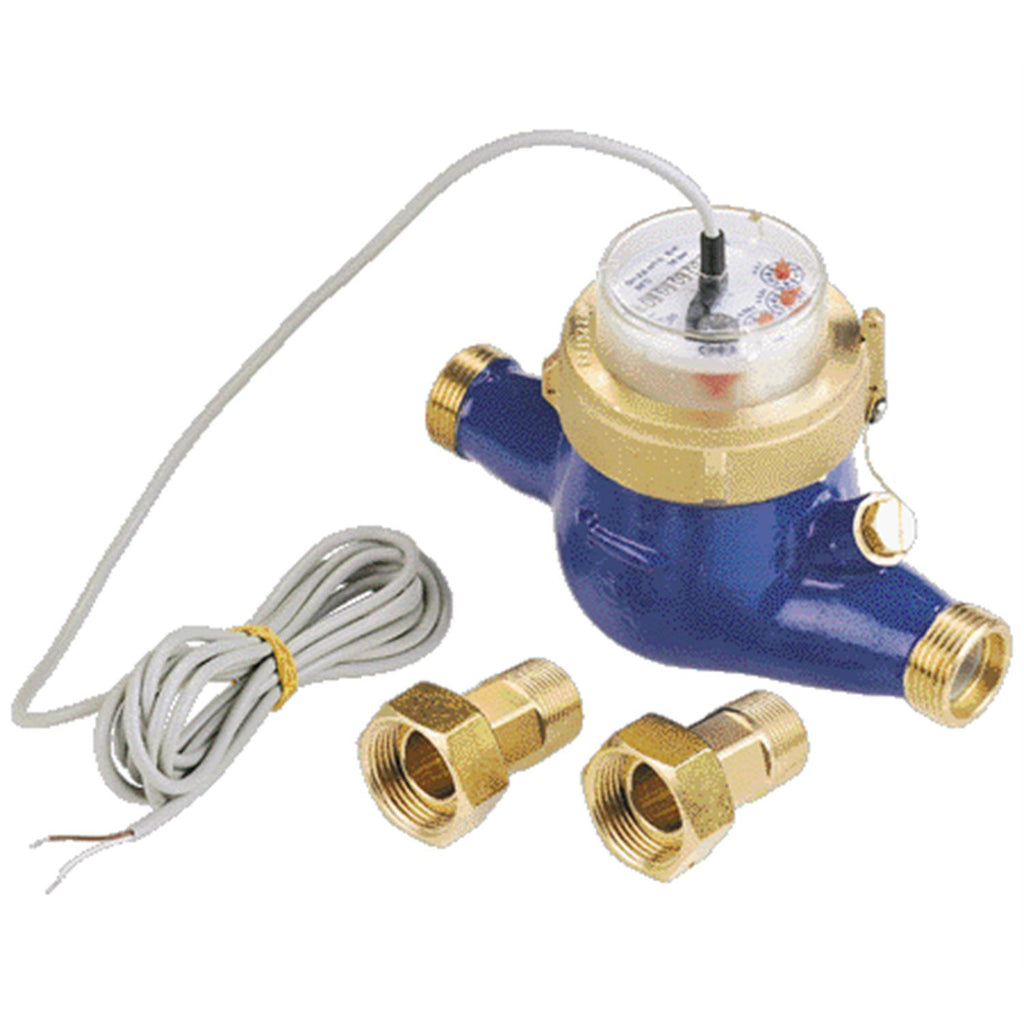

In-line water meter with pulse signal In-line water meter with potential-free pulse signal foruse in flow-proportional dosing applications. Meters from DN 20 to DN 25 are of the multi-jet, dry dialtype for cold water up to 86°F or hot water up to 194°F. Meters from DN 50 to DN 150 are of the helical vanetype for cold water up to 122°F or hot water up to 248°F. The meter is supplied with threaded connections orflanges, depending upon size.

EAN 5700394170758
Connection DN 80
Flange standard DIN
Material Pricing Group 43
Max flow 40 m³/h
Maximum liquid temperature 248 °F
Maximum operating pressure 10 bar
Pipework connection DN 80
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size DN 80
Standard DIN
