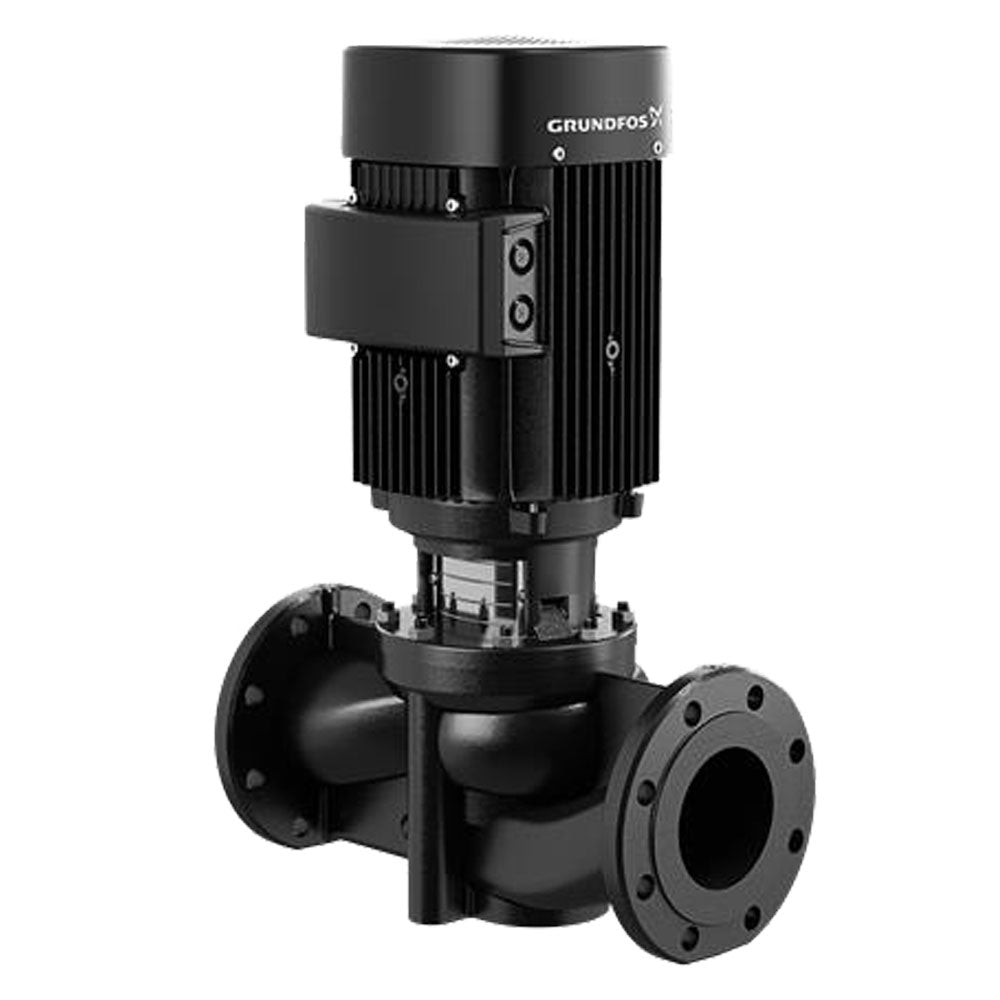

Grundfos 97567365 TP Series Direct Coupled

This item ships free!
GrundfosSKU: 97567365

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
97567365 · Inline Single-Stage Centrifugal Pump
TP2HP208-230/460V3.0-Phase60 HzIP54Stainless steel

The Grundfos 97567365 is a Inline Single-Stage Centrifugal Pump. Single-stage close-coupled inline pump for HVAC heating and cooling. Suction and discharge on the same centerline. Nominal performance: 242US gpm at 22.31ft. Rated 208-230/460V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating.

Power
2HP
Voltage
208-230/460V
Phase
3.0-Phase
Max Flow
242US gpm
Max Head
22.31ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 97567365
Series: TP
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: RUUE
Flange Rating: 125 lb.
Technical Specifications
Model Number 97567365
Product Series TP
Series Description Inline Single-Stage Centrifugal Pump
Power 2HP
Voltage 208-230/460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 1750rpm
Full Load Current 6.4-6.2/3.1A
Motor Type BALDOR
Insulation Class B
Protection Class (IP) IP54
Nominal Flow 242US gpm
Nominal Head 22.31ft
Max Operating Pressure 145.04psi
Max Fluid Temperature 140°F
Max Ambient Temperature 131°F
Min Ambient Temperature -22°F
Nominal Pipe Bore 4"
Pipe Pressure Rating 125 lb.
Pipe Standard ANSI
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal RUUE
Applications
HVAC: Heating
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230/460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 140°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. TP pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — TP Series
✓ Product Data Sheet — 97567365
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700318648165
Applications Chillers / Hot Water Systems, Cooling Tower, Cooling Water Systems, District Heating, HVAC, Municipal Drinking Water, Recirculation, Refrigeration & Air Conditioning, Water Treatment
Connections_Discharge_Inches 4\"
Rated power - P2 2
Voltage 230/460
