Grundfos 99918031 - CRN 32-1 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $3,315.72
GRUNDFOSSKU: 99918031

Price:
Sale price$4,431.28 Regular price$7,747.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 32-1 A-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715114128834
Applications Industrial applications
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 PN 16
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.885
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 13.6/6.79 A
Gross weight 222.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 88,5%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 95.15 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model B
Motor 182TC
Motor efficiency at 1/2 load 0.875
Motor efficiency at 3/4 load 0.885
Motor efficiency at full load 1 0.885
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3500rpm
Net weight 204.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 5 HP
P2 kW 3.7kW
Phase 3
Power (P2) required by pump 5 HP
Power factor 1 0.89
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CRN 32
Pump 5 HP
Pump housing Stainless steel
Pump inlet 2.5
Pump outlet 2.5
Pump version A
Pumped liquid Water
Rated current 11.8/5.9 A
Rated flow 159 US gpm
Rated flow 2 159 US gpm
Rated head 67.59 ft
Rated head 2 67.59 ft
Rated power - P2 5 HP
Rated speed 3500 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Stages 1
Standard NEMA
Starting current 7.8
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

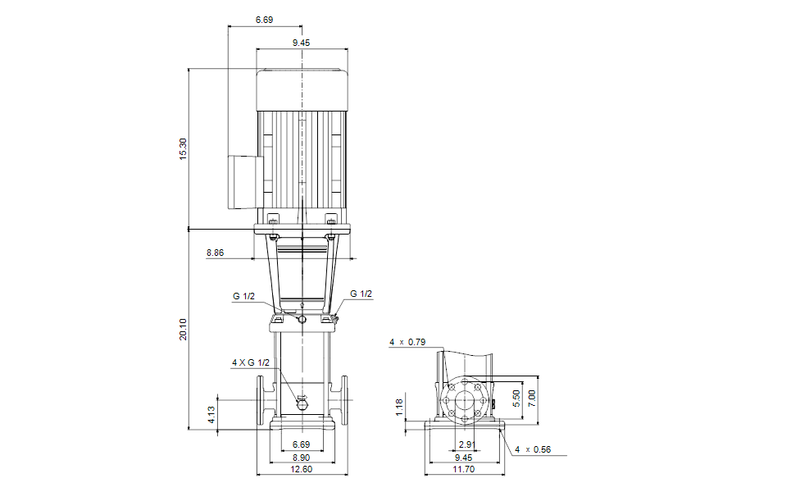

Dimensional Drawing

DWiring Diagram
