Grundfos 95701170 - DIS-G-P, CCA-X-X, W-H

This item ships free!
GRUNDFOSSKU: 95701170

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

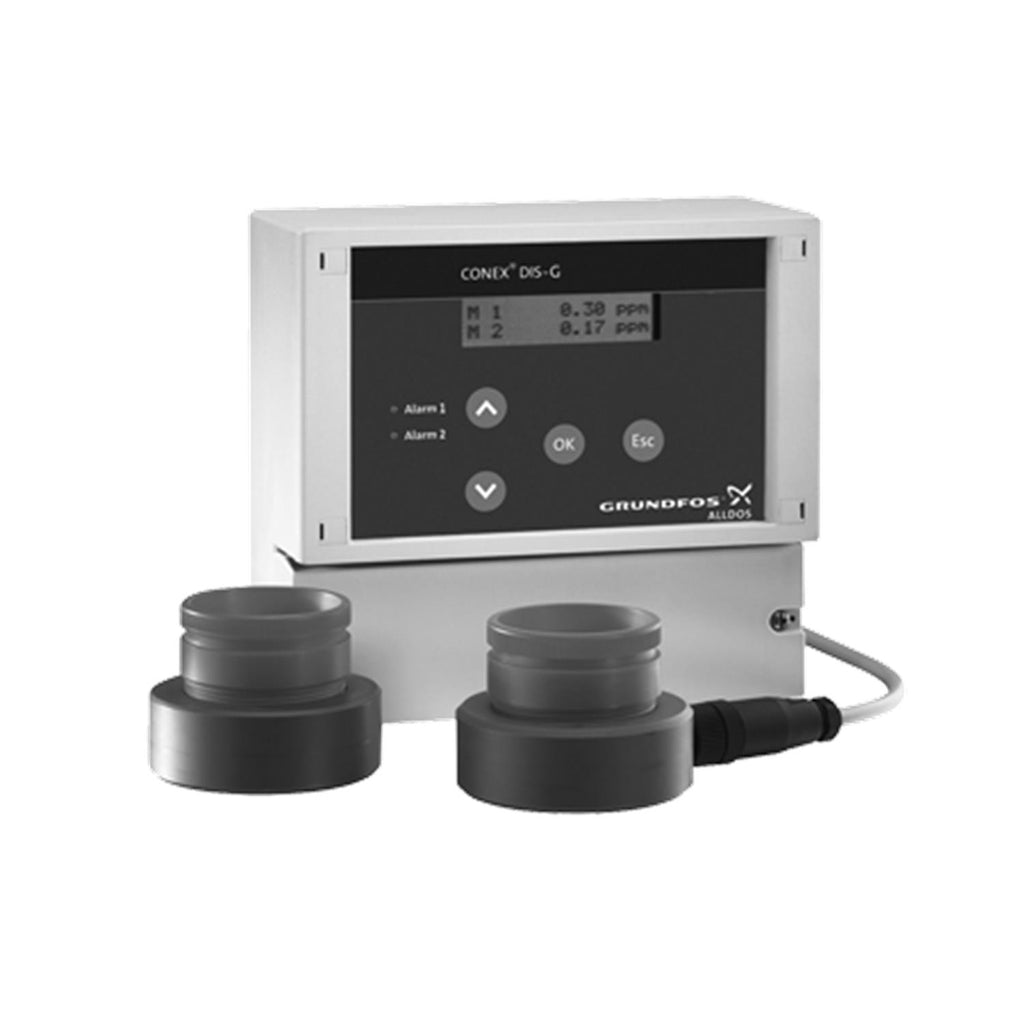

Gas Warning Unit DIS-G DIS-G-P, CCA-X-X, W-HPN: 95701170 Type Gas warning systemGas warning system for safe monitoring of up to two independent measuring points in gas dosing installations, storage and/or service rooms. Simultaneous display of both measured values. Optimum safety due to permanent sensor monitoring and alarm relay. Very short response time in case of sudden change of gas concentration. Long service life of sensor elements. One alarm relay per measured value. Sensor recognition and auto-calibration. 3 Operating languages.

EAN 5700838461121
Battery back-up NO
Deviation Accuracy +/- 10%
Enclosure class (IEC 34-5) IP65
Mains frequency 50 / 60 Hz
Material Pricing Group 64
Measuring ran.1 0-5 ppm
Measuring ran.2 no sensor 2
Mounted on Wall
Power 1 5 VA
Product number Alldos 307-2001-10001
Rated voltage x 115/120 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price

Motor Curves

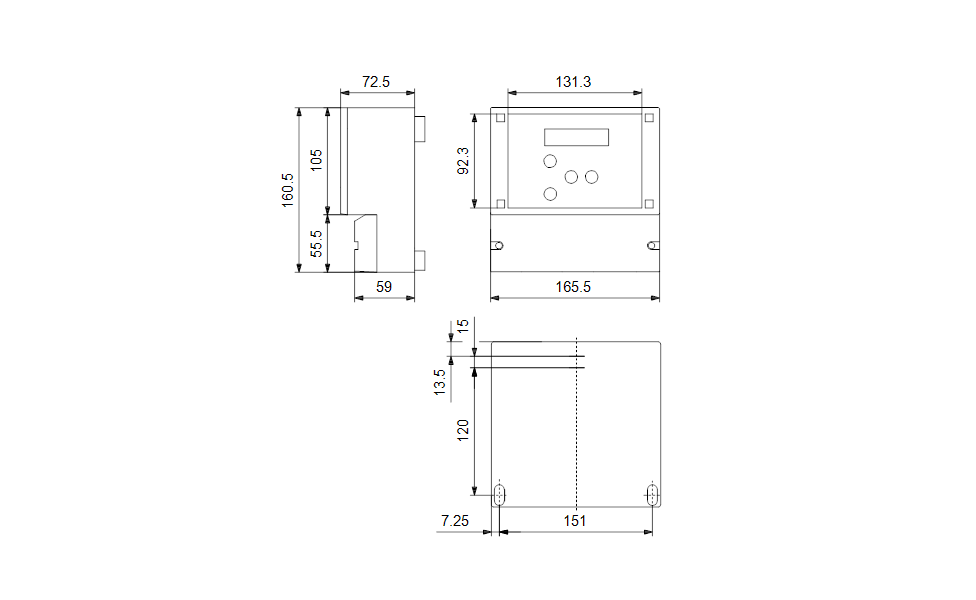

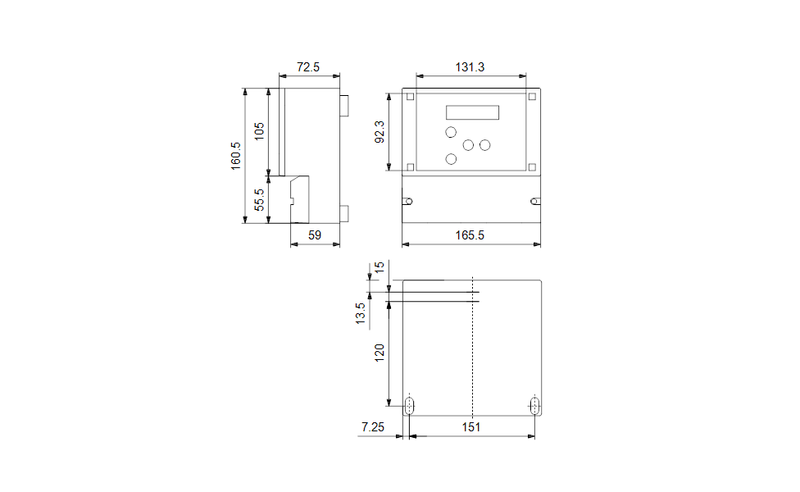

Dimensional Drawing
