Grundfos 99344432 - CRIE 1S-12 NP-CA-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99344432

Price:
Sale price$7,340.28
or Call for most up to date lead times. (781) 281-8905

Description

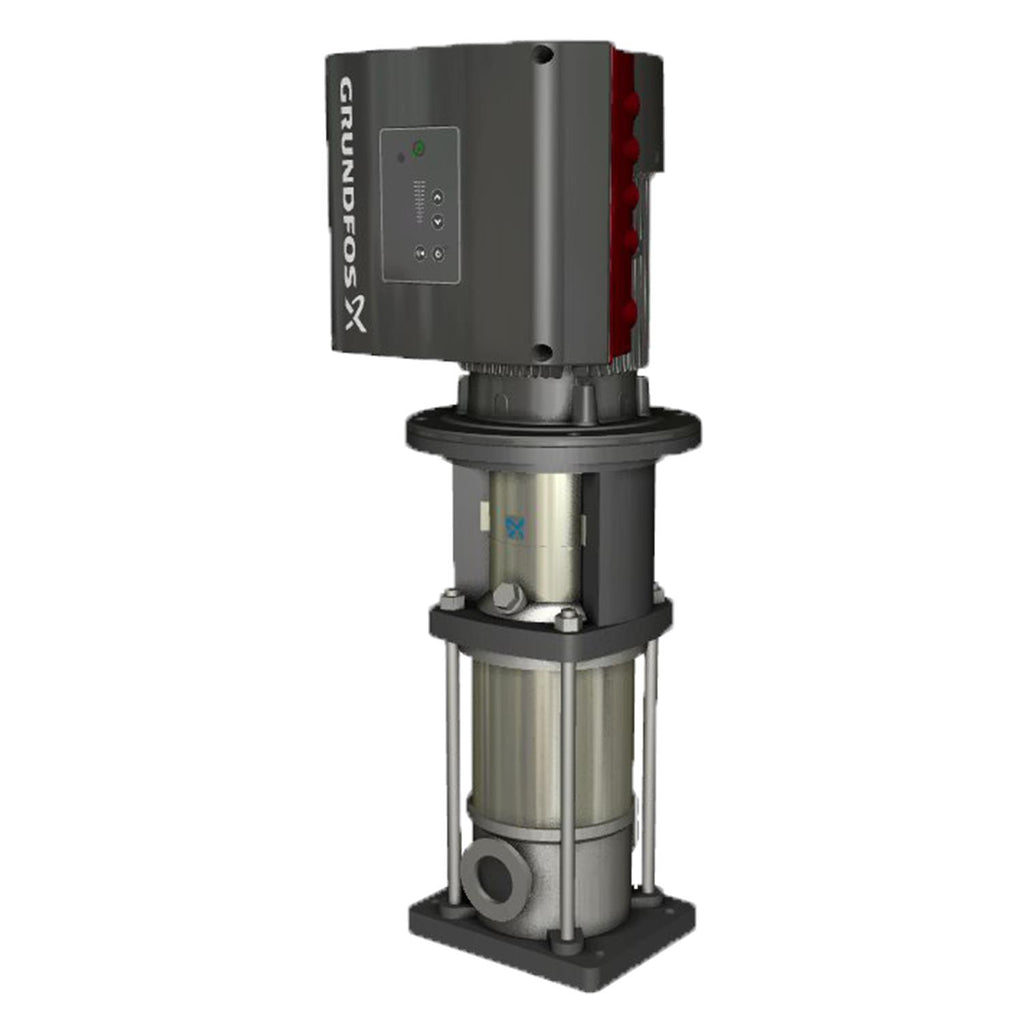

CRIE 1S-12 NP-CA-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. Power transmission is via a rigid split coupling. Pipe connection is via FlexiClamps. The pump is fitted with a 1-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. An operating panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min. " or "Max. " operation or to "Stop". The Grundfos Eye indicator on the operating panel provides visual indication of pump status: "Power on": Motor is running (rotating green indicator lights) or not running (permanently green indicator lights)
"Warning": Motor is still running (rotating yellow indicator lights) or has stopped (permanently yellow indicator lights)
"Alarm": Motor has stopped (flashing red indicator lights). Communication with the pump is possible by means of Grundfos GO Remote (accessory). The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption". The terminal box has a number of inputs and outputs enabling the motor to be used in advanced applications where many inputs and outputs are required: two dedicated digital inputs
three analog inputs, 0(4)-20 mA, 0-5 V, 0-10 V, 0. 5 - 3. 5 V; the factory-fitted pressure sensor is connected to one of these inputs
5 V voltage supply to potentiometer and sensor
one analog output, 0-10 V, 0(4)-20 mA
two configurable digital inputs or open-collector outputs
two Pt100/Pt1000 inputs
LiqTec, dry-running protection sensor input
Grundfos Digital Sensor input and output
24 V voltage supply for sensors
two signal-relay outputs (potential-free contacts)
GENIbus connection
interface for Grundfos CIM fieldbus module.

EAN 5713827570773
Approvals CURUS
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal HQQV
Config. file no 98502752
Connect code CA
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 66.9 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 328.8 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.853
Motor standard NEMA
Motor type 71A
Net weight 55.9 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.98
Pressure rating for connection PN 25
Pressure sensor Y
Pump 0.55 kW
Pump speed on which pump data are based 3464 rpm
Pump version NP
Pumped liquid Water
Rated current 3.45-2.90 A
Rated flow 4.84 US gpm
Rated head 215.9 ft
Rated power - P2 0.55 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time 1 Available on 10/13/2023 Plant: Fresno  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 12
Standard NEMA
Type 71A
Type of connection FlexiClamp
Version NP

Motor Curves

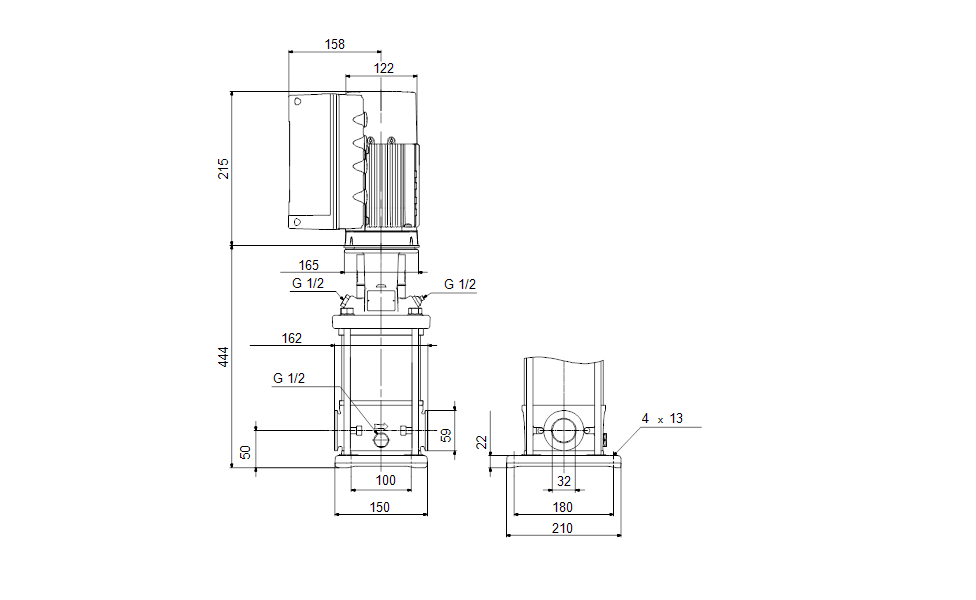

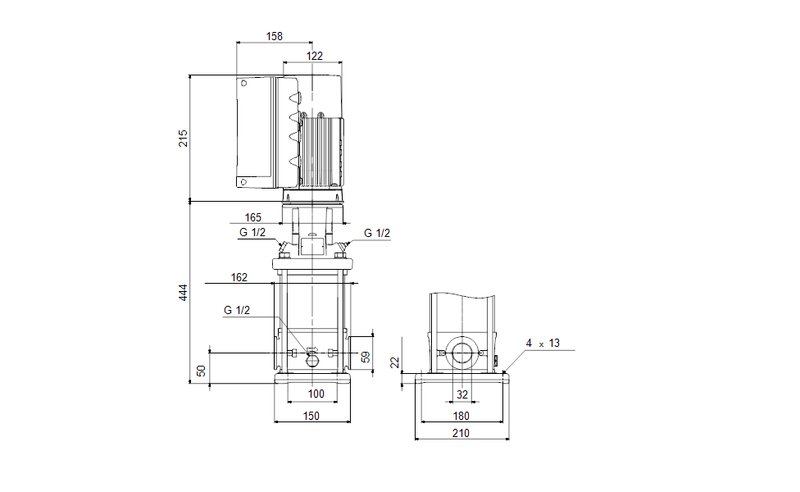

Dimensional Drawing

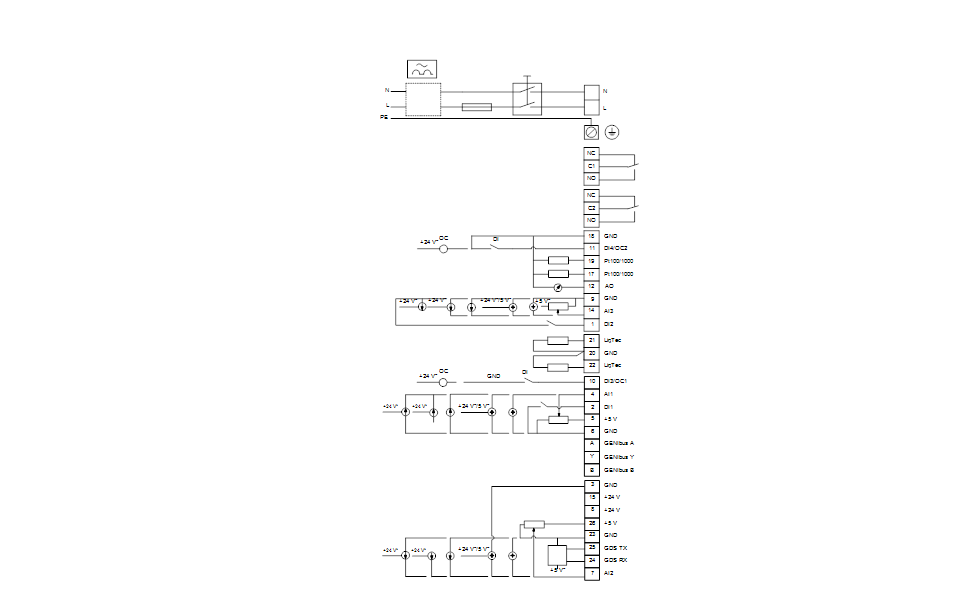

DWiring Diagram
