Description

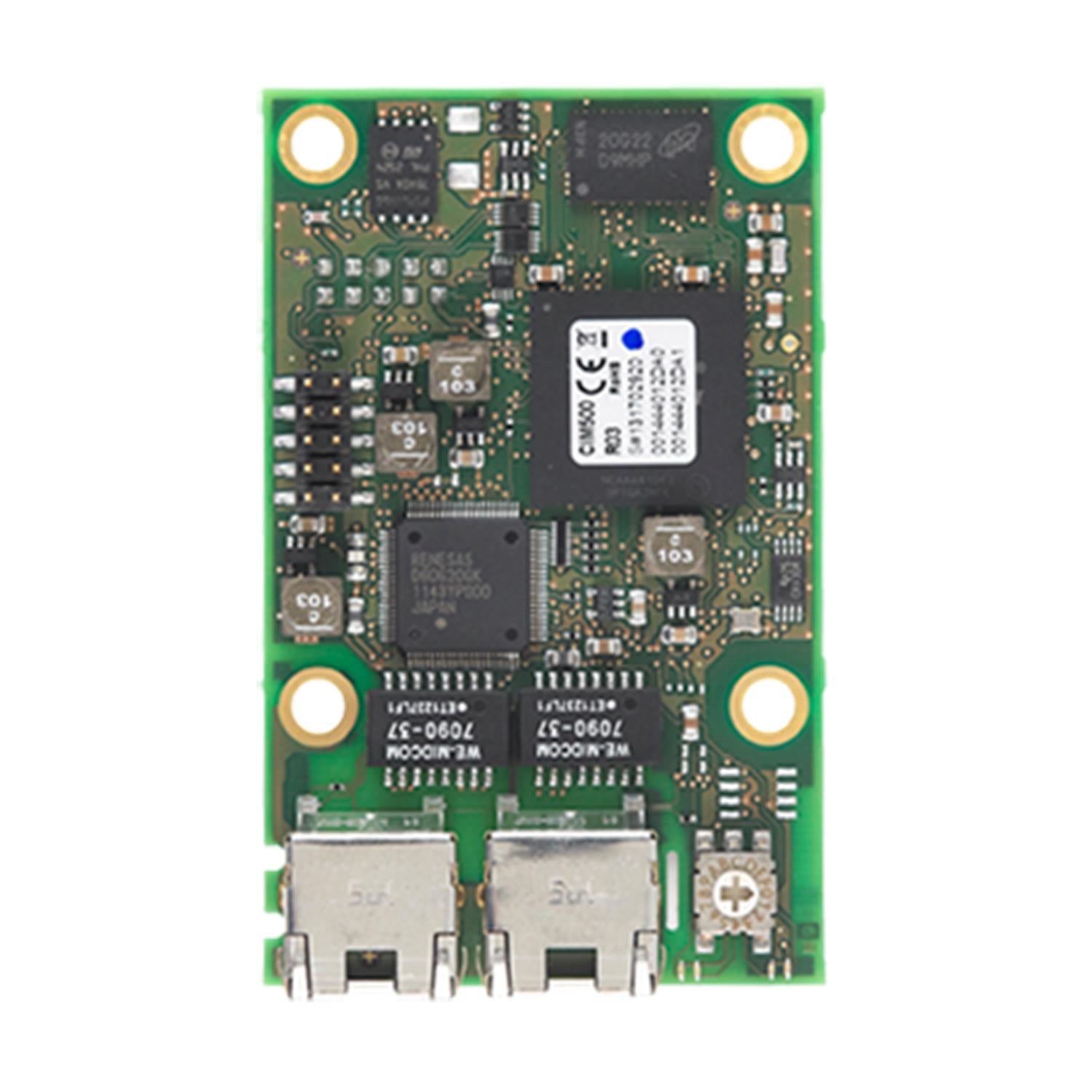

CIM 500 PROFINET Modbus TCP BACnet IP EtherNet/IP | The CIM 500 is a standard interface for data transmission between an industrial Ethernet network and a Grundfos pump or controller. It makes data exchange possible between Grundfos pumping systems and a PLC or SCADA system. CIM 500 Ethernet supports fieldbus protocols PROFINET IO
Modbus TCP (also via cellular router)
BACnet IP
EtherNet/IPAdditional CIM 500 Ethernet also supports Grundfos Remote Management (GRM IP) (also via cellular router)
Grundfos iSolution cloud (GiC) (also via cellular router)The interface module can be installed as an internal add-on or into a CIU 900/ 901/ 902/ 903 wall-mounted unit where internal connection is not supported. Supported products: E-pump CRE/CRNE/CRIE, MTRE, CME, TPE2 / TPE3, NBE/NKE with MGE model H/I/J and 11-22 kW
MAGNA3 circulators
CU 352 MPC controller
CU 354 DDD controller (only for Modbus TCP, PROFINET IO, GRM IP)
CU 362 Dedicated Controls (only for Modbus TCP, PROFINET IO, GRM IP)
Hydro Multi-E based on MGE model H/I/J
CIU 902 of SEQ AutoAdapt (only for Modbus TCP, PROFINET IO, GRM IP)
DDA XL dosing pump (only for Modbus TCP, PROFINET IO, EtherNet/IP, GRM IP)
LC 2x1 Level controller (only for Modbus TCP, PROFINET IO, BACnet IP)
Motor Curves

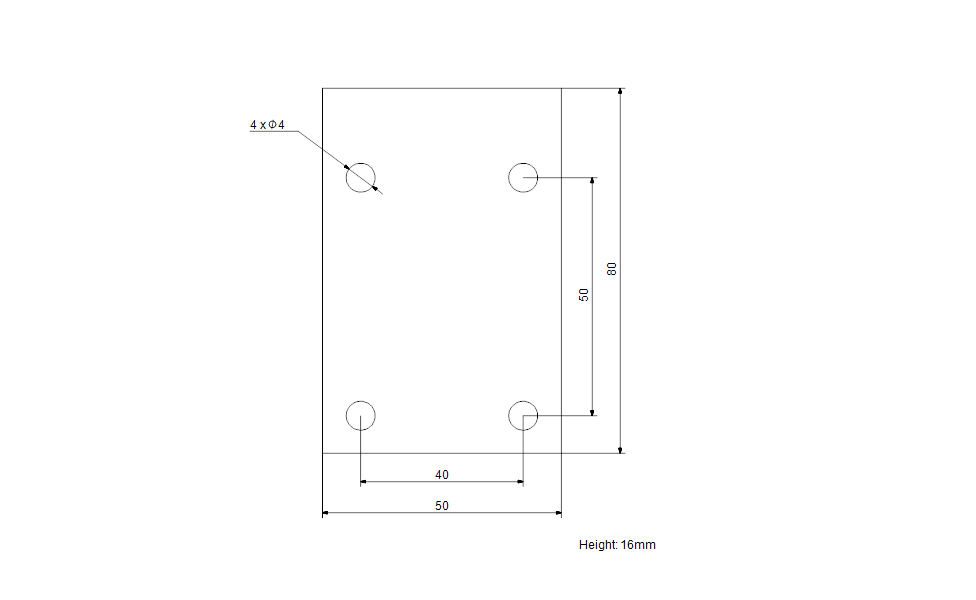

Dimensional Drawing
