Baldor VL3513-50 - 1.5/1.1KWHP, 2910RPM, 1 Phase, 50HZ, 56C, 3530LC 50HZ Single Phase Single Phase 56°C

Save $321.50
BaldorSKU: VL3513-50

Price:
Sale price$964.50 Regular price$1,286.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

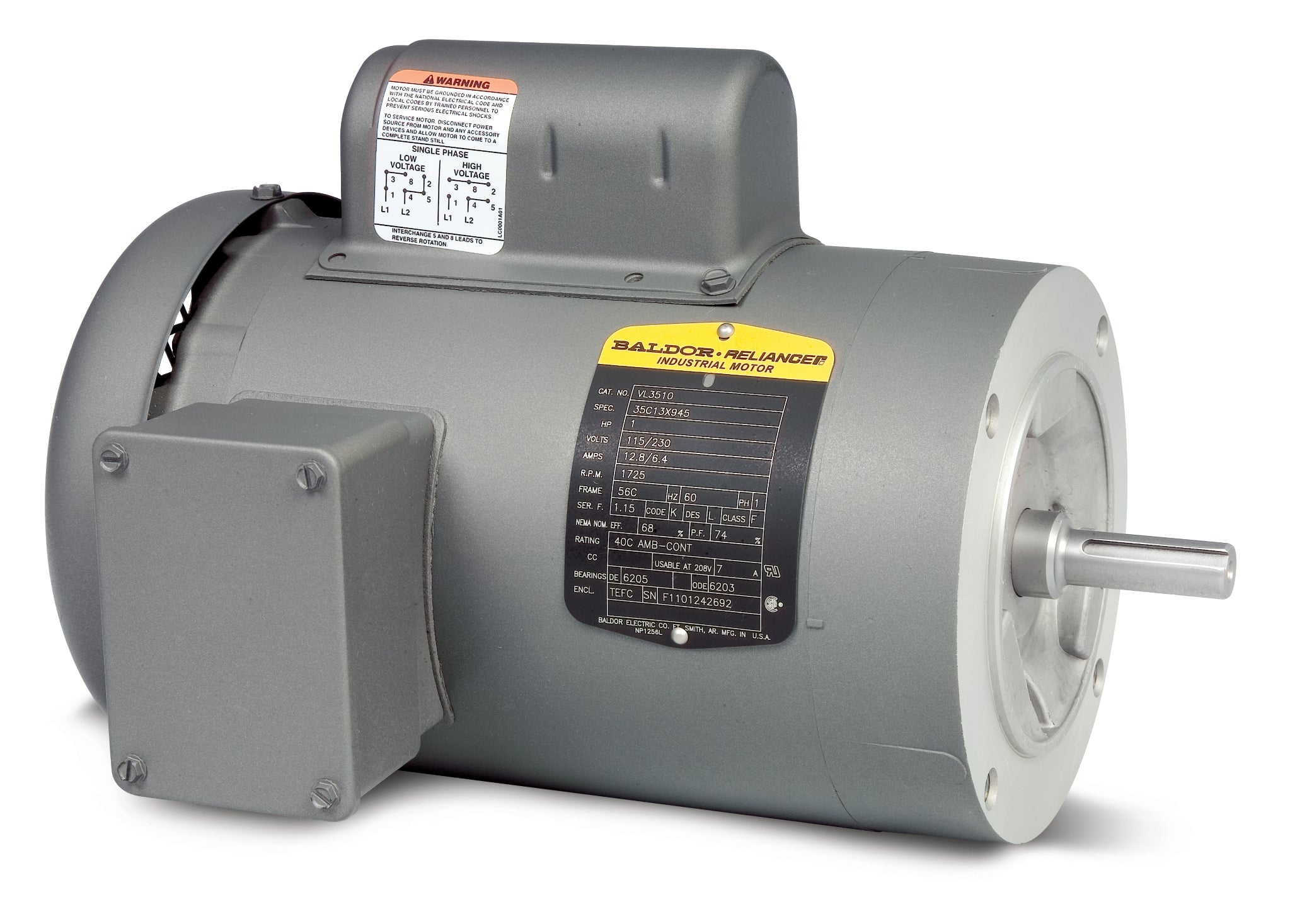

Baldor VL3513-50 Single Phase Enclosed Motor:

The Baldor VL3513-50 is a high-performance single phase enclosed motor designed for reliable operation in various applications. With a power rating of 1.5/1.1KWHP and a speed of 2910 RPM, this motor is ideal for driving pumps and other machinery that require efficient and consistent performance.

Specifications:

  • Power: 1.5/1.1KWHP
  • Speed: 2910 RPM
  • Phase: Single Phase
  • Frequency: 50HZ
  • Frame Size: 56C
  • Product Code: VL3513-50

This Baldor-Reliance motor is built to withstand demanding conditions, making it a reliable choice for your pumping needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VL3513-50 to ensure compatibility. Don't hesitate to reach out if you need help locating the right item!

UPC 781568120286
Supplier Part Number VL3513-50
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 48.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VL3513-50
Current @ Voltage 13.000 A @ 110.0 V, 6.500 A @ 220.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 79.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3530LC
Mounting Arrangement F1
Number of Poles 2
Output 1.500 hp
Output @ Frequency 1.500 HP @ 50 HZ
Overall Length 14.10 IN
Phase 1
Power Factor 96
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 2910 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 110 V, 220 V
Voltage @ Frequency 220.0 V @ 50 HZ, 110.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
