Baldor EJPM2543T - 50 HP, 1775RPM, 3 Phase, 60HZ, 326JP, 4256M, Opsb, F 60HZ Three Phase 50 HP 4256 M Cable

Save $2,484.50
BaldorSKU: EJPM2543T

Price:
Sale price$7,453.50 Regular price$9,938.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

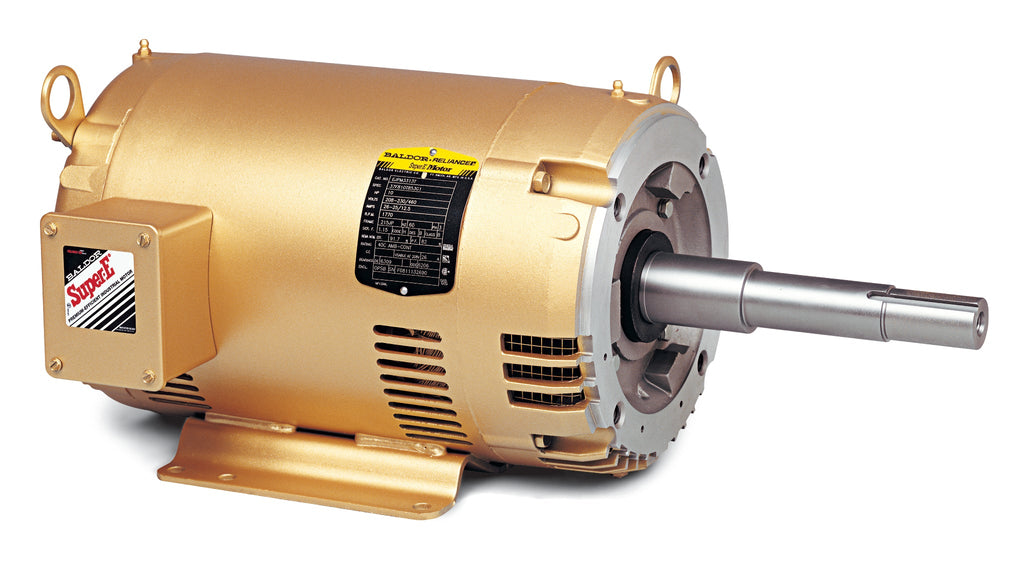

Baldor EJPM2543T - 50 HP Close Coupled Motor

Discover the power and reliability of the Baldor EJPM2543T, a high-performance 50 HP, 1775 RPM, 3-phase motor designed for demanding applications. This motor operates at 60Hz and features a robust 326JP frame, making it an ideal choice for various industrial and commercial uses.

As part of the Baldor-Reliance JM, JP, WCP Close Coupled Motors series, the EJPM2543T is engineered for efficiency and durability, ensuring optimal performance in your pumping systems. Whether you are replacing an existing motor or upgrading your equipment, this motor is a reliable solution.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJPM2543T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect fit.

Product Specifications:

  • Power: 50 HP
  • Speed: 1775 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz
  • Frame: 326JP
  • Product Code: EJPM2543T

Upgrade your pumping system with the Baldor EJPM2543T motor and experience unmatched performance and reliability.

UPC 781568479438
Supplier Part Number EJPM2543T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 500.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM2543T
Current @ Voltage 114.000 A @ 230.0 V, 121.000 A @ 208.0 V, 57.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 326JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 57.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4256M
Mounting Arrangement F1
Number of Poles 4
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 30.81 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
