Baldor EJMM2535T - 30 HP, 1775RPM, 3 Phase, 60HZ, 286JM, 4060M, Opsb, F 60HZ Three Phase 30 HP 4060 M Cable

Save $1,777.50
BaldorSKU: EJMM2535T

Price:
Sale price$5,332.50 Regular price$7,110.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

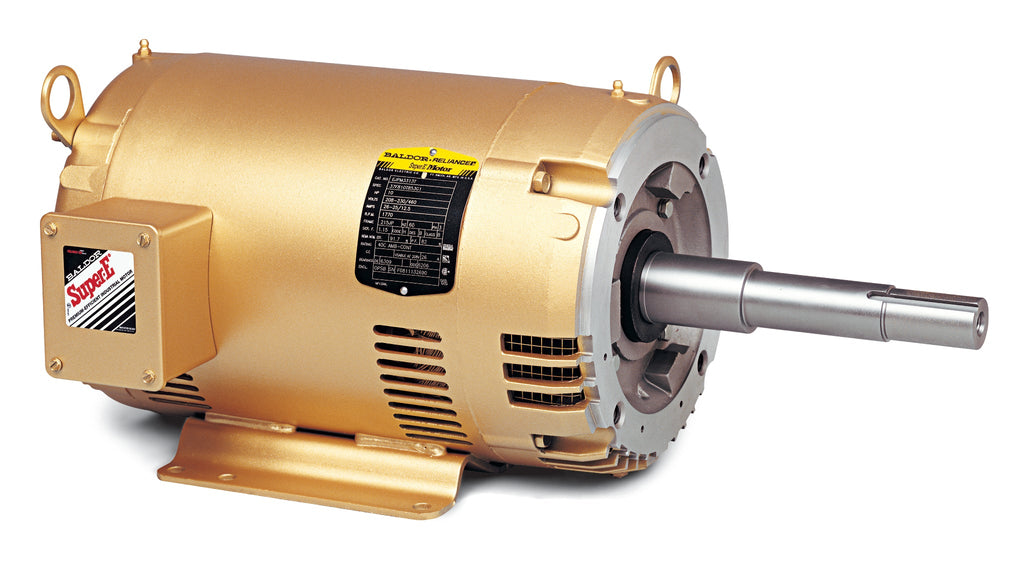

Baldor EJMM2535T - 30 HP Close Coupled Motor

Introducing the Baldor EJMM2535T, a high-performance 30 HP, 1775 RPM, 3-phase motor designed for reliable operation in various industrial applications. This motor operates at 60Hz and features a 286JM frame size, making it an ideal choice for close coupled pump systems.

As part of the Baldor-Reliance JM, JP, and WCP series, this motor is engineered for durability and efficiency, ensuring optimal performance in demanding environments. With its robust construction and advanced design, the EJMM2535T is perfect for those seeking a dependable solution for their pumping needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJMM2535T to ensure compatibility. Our team is here to help you find the right item for your needs.

Product Specifications:

  • Power: 30 HP
  • Speed: 1775 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 286JM
  • Product Code: EJMM2535T

Choose the Baldor EJMM2535T for your pumping applications and experience the reliability and performance that only Baldor can deliver.

UPC 781568528075
Supplier Part Number EJMM2535T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 359.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJMM2535T
Current @ Voltage 37.000 A @ 460.0 V, 74.000 A @ 230.0 V, 77.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 286JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 37.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4060M
Mounting Arrangement F1
Number of Poles 4
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 26.94 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
