Baldor BNM3542-D - .75/.55 Kwhp, 1765 1/MIN IP44 IC410 19 Kg IP44 Rating

Save $854.40
BaldorSKU: BNM3542-D

Price:
Sale price$1,281.60 Regular price$2,136.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

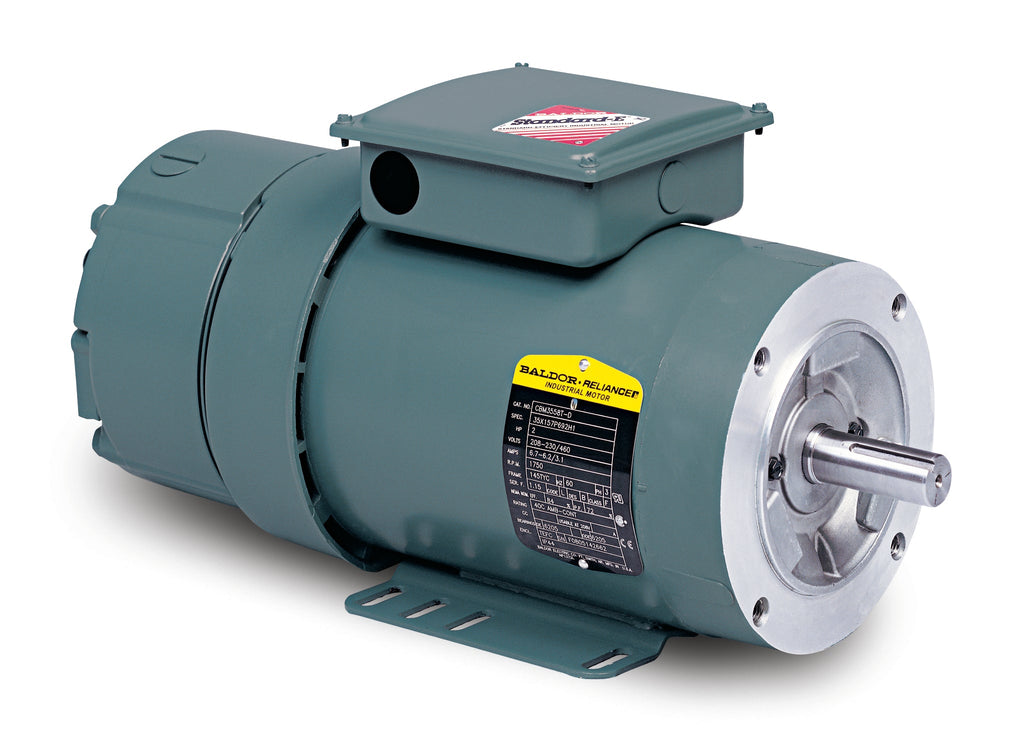

Baldor-Reliance D-Series Brake Motor - Model BNM3542-D

Discover the efficiency and reliability of the Baldor-Reliance D-Series Brake Motor, designed for optimal performance in various applications. This motor features a power rating of .75/.55 KWHP and operates at a speed of 1765 RPM. With an IP44 rating, it is well-suited for environments where protection against dust and water splashes is essential.

Weighing in at 19 KG, this robust motor is built to last and is ideal for use in pump systems and other industrial applications. The IC410 cooling method ensures efficient operation, making it a reliable choice for your needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the BNM3542-D to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568503515
Supplier Part Number BNM3542-D
Category AC Motors
Subcategory D-Series Brake Motors
Product Family General Purpose
Agency Approvals CE, CURUS, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 47.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 6.0 lb-ft
Catalog Number BNM3542-D
Current @ Voltage 2.420 A @ 230.0 V, 2.420 A @ 208.0 V, 1.210 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F3
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 14.96 IN
Phase 3
Power Factor 74
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 208.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
