Baldor BNM3538-D - .5/.37 Kwhp, 1775RPM, 3 Phase, 60HZ, 56, 3514M, Te 60HZ Three Phase 3514 M Cable

Save $628.40
BaldorSKU: BNM3538-D

Price:
Sale price$942.60 Regular price$1,571.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

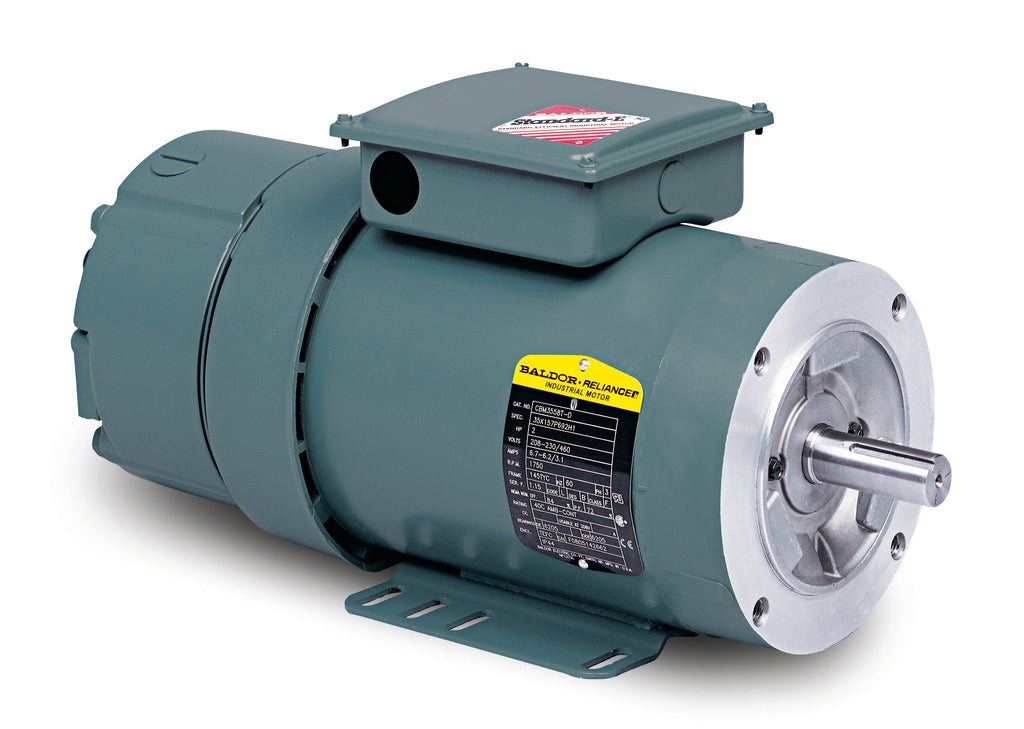

Baldor-Reliance D-Series Brake Motor - Model BNM3538-D

Upgrade your pumping system with the Baldor-Reliance D-Series Brake Motor, designed for efficiency and reliability. This motor features a power rating of 0.5/.37 KWHP and operates at 1775 RPM, making it ideal for various industrial applications. With a 3 Phase configuration and a frequency of 60HZ, this motor ensures optimal performance in demanding environments.

Specifications:

  • Model: BNM3538-D
  • Type: D-Series Brake Motor
  • Power: 0.5/.37 KWHP
  • Speed: 1775 RPM
  • Phase: 3
  • Frequency: 60HZ
  • Frame: 56
  • Enclosure: TE (Totally Enclosed)
  • SKU: BNM3538-D

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568461266
Supplier Part Number BNM3538-D
Category AC Motors
Subcategory D-Series Brake Motors
Product Family General Purpose
Agency Approvals CE, CURUS, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 43.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 6.0 lb-ft
Catalog Number BNM3538-D
Current @ Voltage 2.000 A @ 230.0 V, 1.900 A @ 208.0 V, 1.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 81.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F3
Number of Poles 4
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 14.96 IN
Phase 3
Power Factor 63
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 208.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
