Grundfos 95927316 - MMS 10000 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 95927316

Price:
Sale price$69,591.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 95927316 - MMS 10000 Submersible Motor

Introducing the Grundfos MMS 10000, a high-efficiency 3-phase submersible motor designed for optimal performance in demanding applications. This wet-winded, rewindable motor features a robust sand shield, ensuring durability and longevity even in challenging environments. The liquid-lubricated bearings provide smooth operation, while the pressure equalizing diaphragm enhances reliability and efficiency.

Ideal for use in 6" and larger submersible systems, the MMS 10000 is part of the renowned Grundfos MS6000 series, known for its superior engineering and performance. Whether you are looking to replace an existing motor or upgrade your system, the MMS 10000 is the perfect choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our knowledgeable team is here to help you find the right item.

Upgrade your pumping system with the reliable and efficient Grundfos MMS 10000 submersible motor today!

EAN 5700311650820
Applications Motors
Axial load max 5000 kg
Breakdown torque 290-320-340 %
Built-in temp. transmitter no
Diameter 10 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 190-210-230 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 86 °F
Max liquid t at 0.5 m/sec 35 °C
Moment of inertia 5.221 lb ft²
Motor Cast iron
Motor diameter 10 inch
Motor efficiency at 1/2 load 85-82 %
Motor efficiency at 3/4 load 87-85 %
Motor efficiency at full load 1 87-86 %
Motor type MMS10000
Motor version T35
Net weight 1280.0 lb
Power factor 1 0.84-0.79-0.74
Product family MMS 10000
Rated current 420-425-440 A
Rated full-load torque 1 438.8 ft lb
Rated power - P2 190 kW
Rated speed 2920-2930-2930 rpm
Rated voltage 3 x 440-460-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 580-590-590 %
Type MMS10000
Version T35
Voltage tolerance +6/-10 %
Winding resistance 0.037 ohm
Windings PE2/PA

Motor Curves

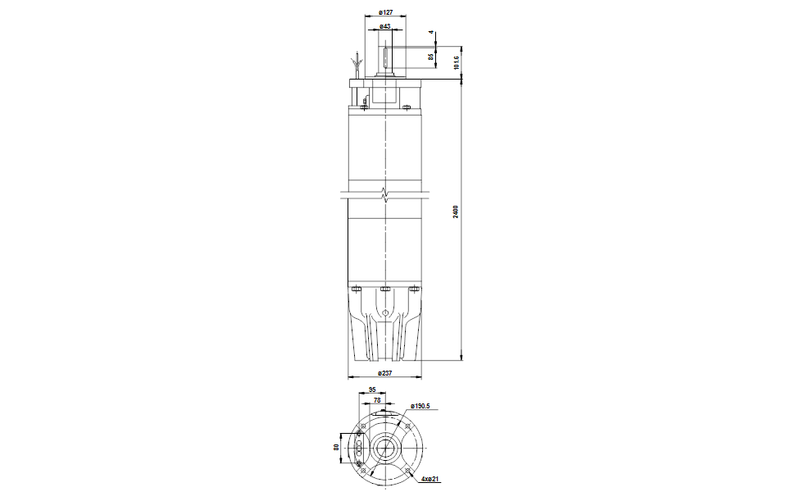

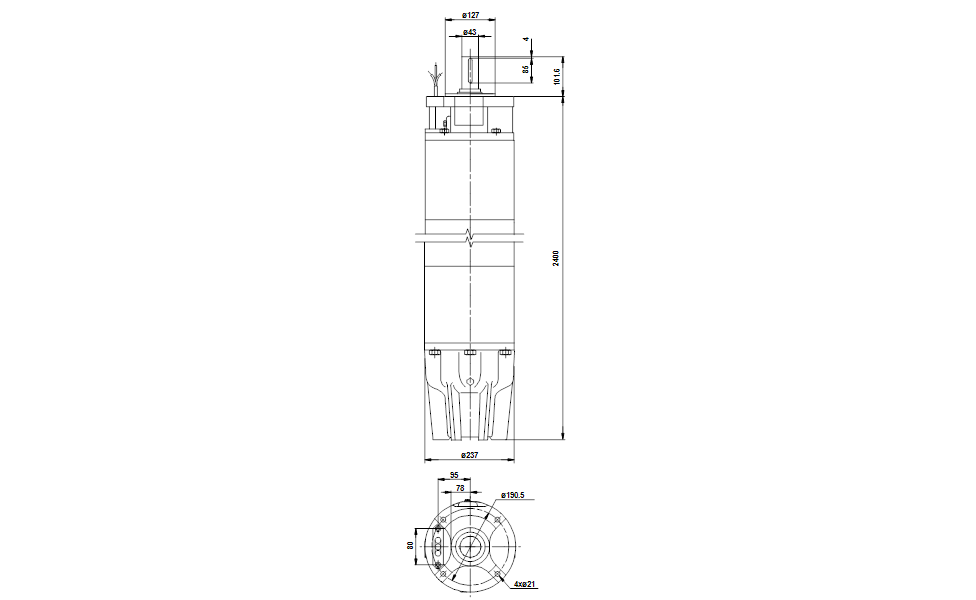

Dimensional Drawing

DWiring Diagram
