Baldor BM3539 - .5 HP, 1140RPM, 3 Phase, 60HZ, 56, Brake, 3418M 60HZ Three Phase 5 HP 3418 M Cable

Save $901.20
BaldorSKU: BM3539

Price:
Sale price$1,351.80 Regular price$2,253.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

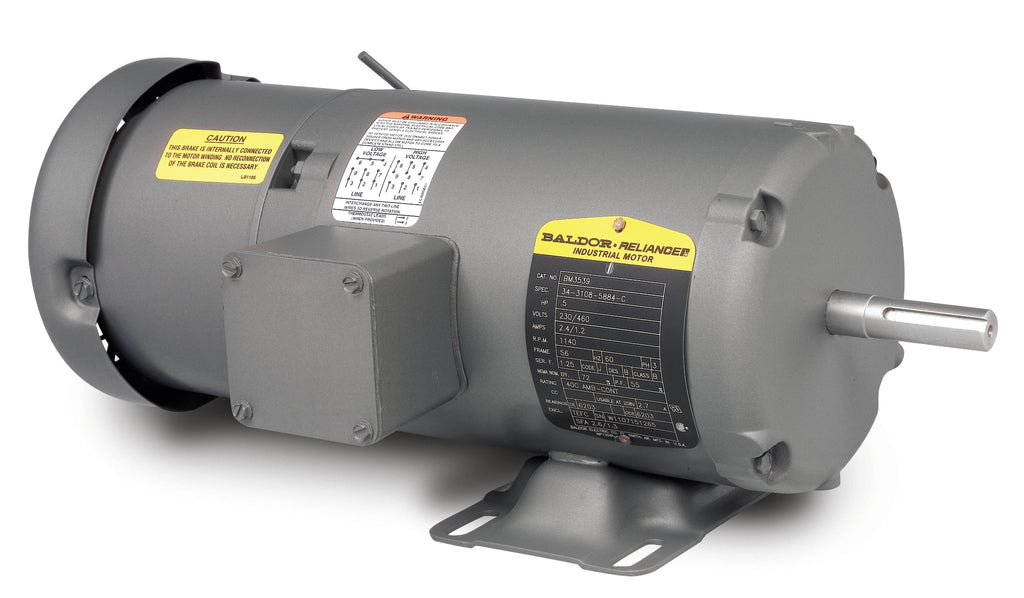

Baldor-Reliance Short-Series Brake Motor - Model BM3539

Upgrade your industrial applications with the Baldor BM3539, a reliable and efficient 0.5 HP Short-Series Brake Motor. Designed for three-phase operation, this motor delivers a robust performance at 1140 RPM and operates at 60HZ. With a frame size of 56 and integrated brake functionality, it is ideal for applications requiring precise control and quick stopping capabilities.

As a trusted vendor, Baldor ensures high-quality manufacturing standards, making the BM3539 a dependable choice for your motor needs. Whether you're replacing an existing motor or upgrading your system, this model is designed to meet the demands of various industrial environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor BM3539 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

Explore our selection of AC Motors, Baldor-Reliance Motors & Drives, and Short-Series Brake Motors to find the right fit for your needs.

UPC 781568114919
Supplier Part Number BM3539
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 6.0 lb-ft
Catalog Number BM3539
Current @ Voltage 1.200 A @ 460.0 V, 2.400 A @ 230.0 V, 2.700 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 72.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class B
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3418M
Mounting Arrangement F1
Number of Poles 6
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 16.45 IN
Phase 3
Power Factor 55
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1140 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
