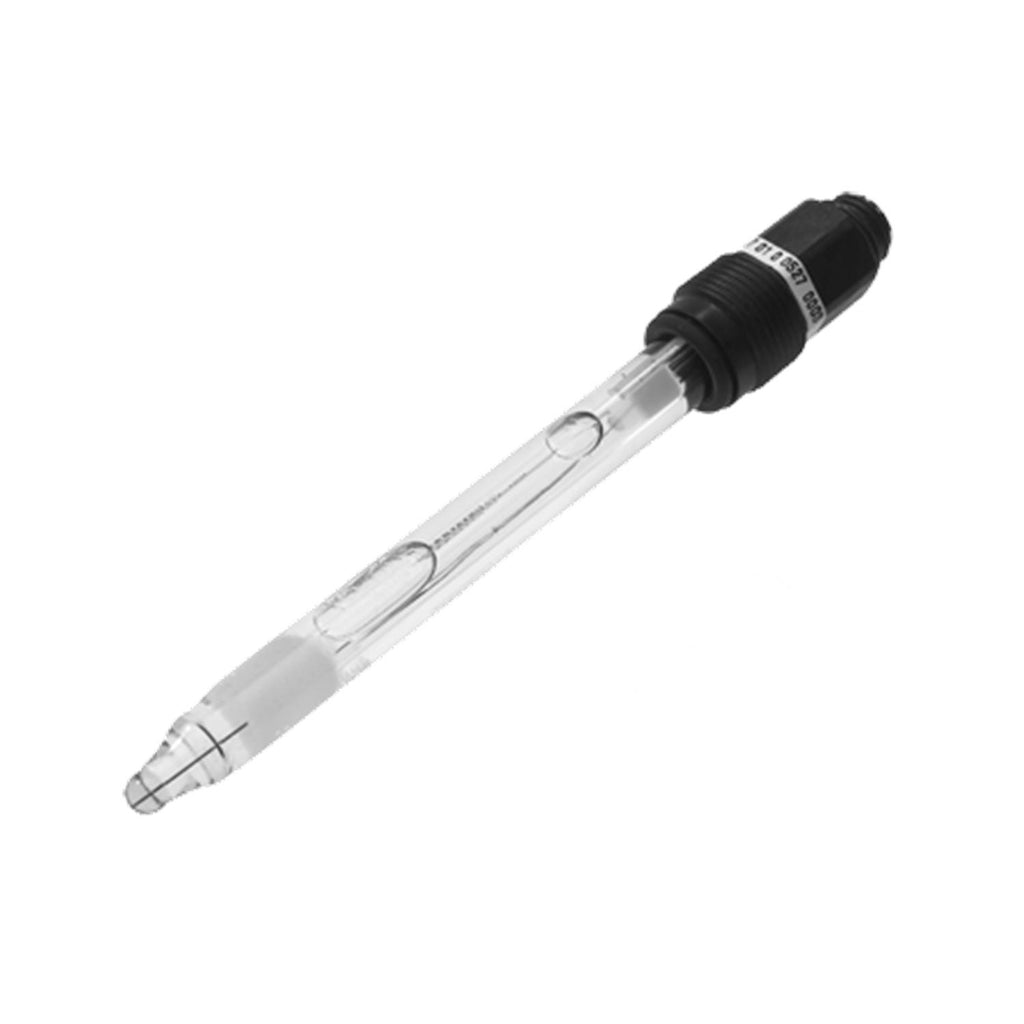

Grundfos 96622944 - redox (ORP) electrode

This item ships free!
GRUNDFOSSKU: 96622944

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96622944 is a redox (ORP) electrode used as a water quality sensor for monitoring oxidation-reduction potential in treatment and control systems, suited for operators and technicians who maintain measurement and controller assemblies.

Key features

  • ORP/redox sensing element for water quality monitoring
  • Compatible with measurement control and controller systems as indicated by product tags
  • Provides reliable signal input to controllers for improved process monitoring and maintenance

Applications

General uses include water treatment systems, pool and spa monitoring, industrial process control, and municipal or commercial monitoring where ORP measurement is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96622944

EAN 5700835038371
Applicat. typ only Aquaserver / DIP
Basic PT - Platinum
Electrode 1 redox (ORP)
Electrode 2 no value
Flow sensor no value
Material Pricing Group 91
Maximum operating pressure 2 bar
Measuring cell redox (ORP)
Pressure retention valve no value
Product number Alldos 313-105
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Redox range +/-1500 mV
Sensor type redox (ORP)
Temp. sensor no value
Type redox (ORP)
Valve no value

Motor Curves

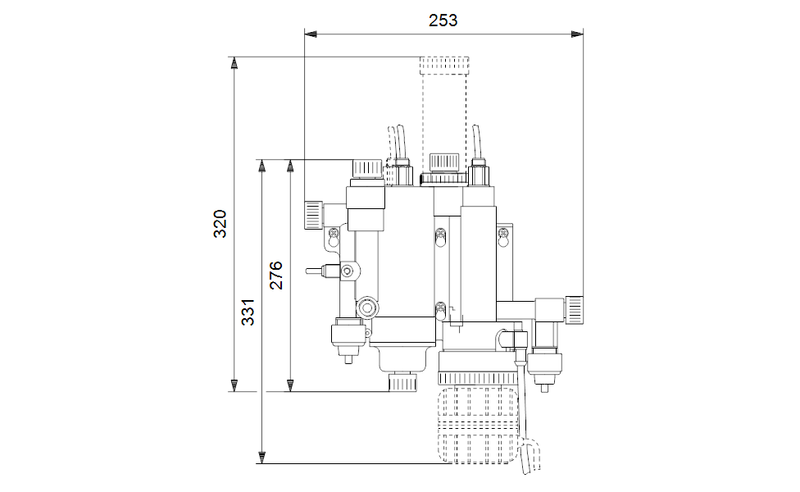

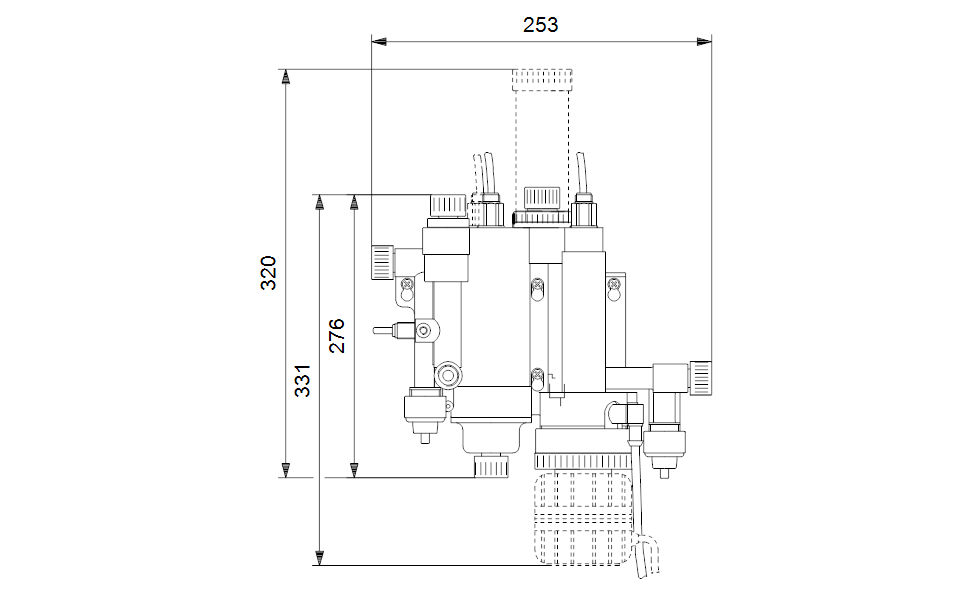

Dimensional Drawing
