Barmesa 3BWSE503DS Submersible Non-Clog Sewage Pump 5.0 HP 230V 3PH 40' Cord Manual

Save $1,057.80 This item ships free!
BarmesaSKU: 3BWSE503DS

Price:
Sale price$4,231.20 Regular price$5,289.00
or Call for most up to date lead times. (781) 281-8905

Description

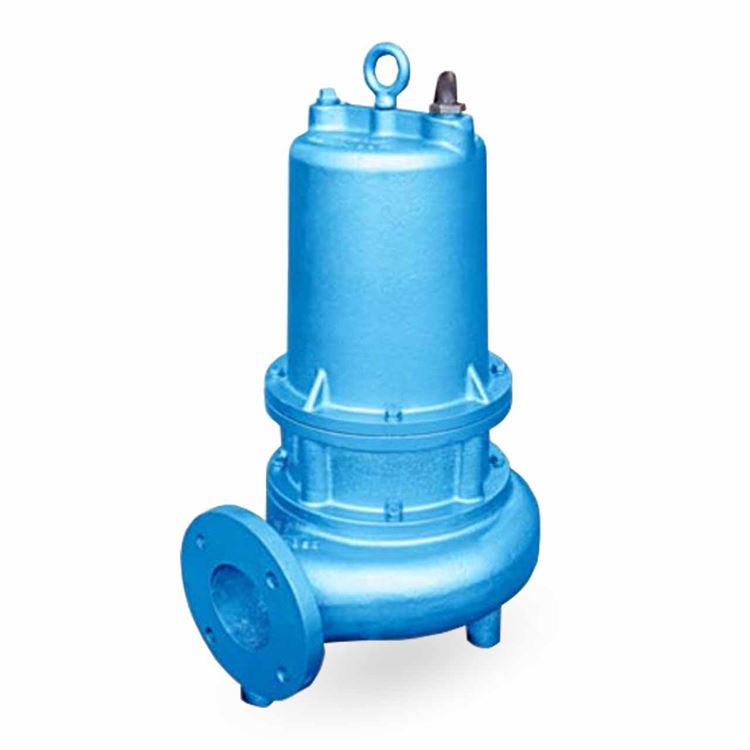

Barmesa 3BWSE-DS Series Submersible Non-Clog Sewage Pump

A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.

Barmesa 3BWSE-DS Series Submersible Non-Clog Sewage Pump Features
NEMA B, Three Phase, Oil Filled, with Class F Insulation. Requires Overload Protection to be Included in Control Panel.
Cast Iron Motor Housing
Dual, Mechanical, Oil Filled Chamber Seal
Seal is Silicone Carbide with Viton Type 01 Outer Seal, Carbon Ceramic with Buna-N Type 01 Inner Seal, with Stainless Steel Hardware.
Impeller is made of Cast Iron ASTM A-48 Class 30
3" 125LB Flange Horizontal Discharge
Temperature Rating: 104°F (40°C) Continuous, 140°F (60°C) Intermittent Operation

Motor Curves
