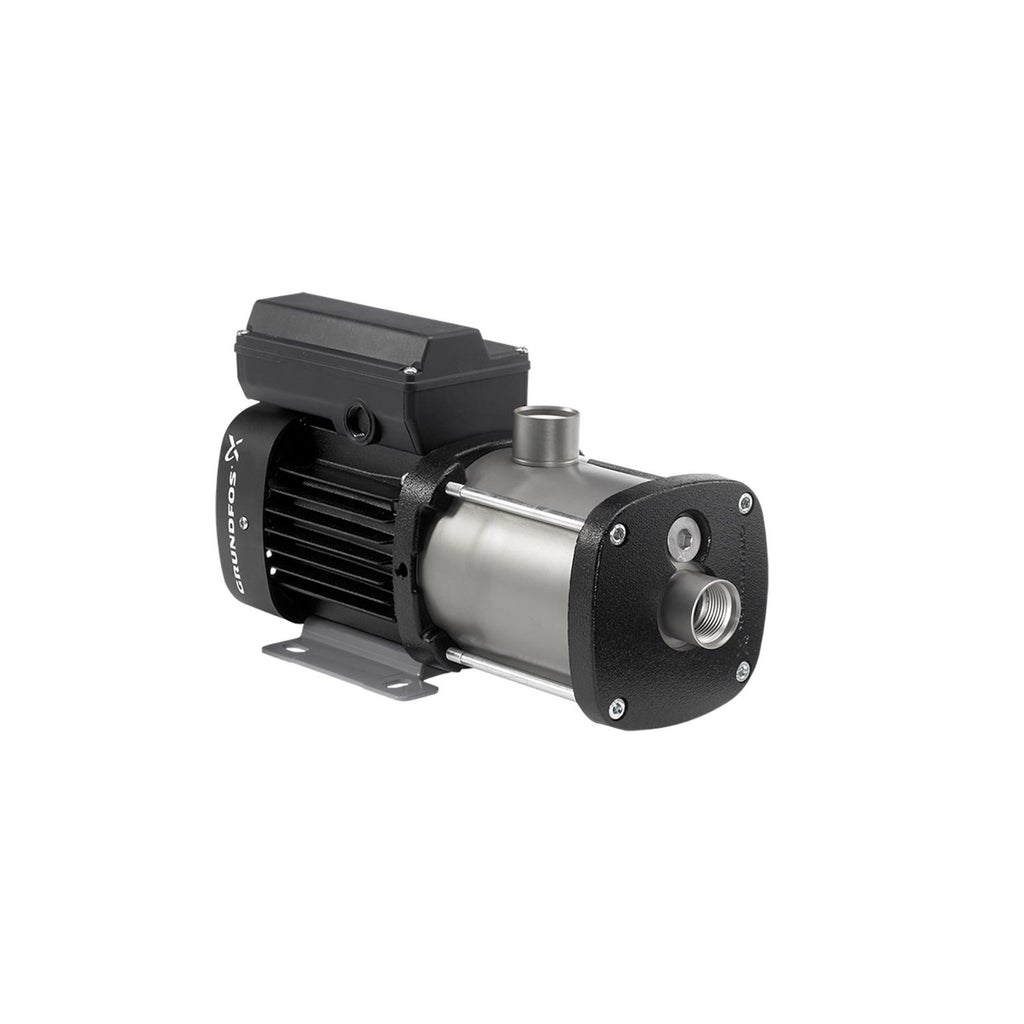

Grundfos 96806911 - CM 3-4 A-S-G-V-AQQV B-A-A-N | Horizontal | End Suction | Centrifugal

Save $902.06
GRUNDFOSSKU: 96806911

Price:
Sale price$1,058.94 Regular price$1,961.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96806911 - CM 3-4 A-S-G-V-AQQV B-A-A-N is a horizontal end-suction centrifugal pump designed for industrial fluid handling. This CM-series unit suits professionals seeking a reliable replacement for centrifugal and multistage applications.

Key features

  • CM-series construction for robust centrifugal performance
  • Tags indicate suitability for booster, close-coupled, and horizontal multistage roles
  • Designed to provide dependable fluid transfer and straightforward serviceability

Applications

Typical uses include general industrial pumping, booster systems, HVAC recirculation, and other centrifugal or multistage installations where a horizontal end-suction pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96806911

EAN 5700310918587
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber V
Code for shaft seal AQQV
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frame size 80AA
Frequency converter NONE
Gross weight 36.7 lb
Housing Stainless steel
Impeller Stainless steel
Impellers 4
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 60 Hz
Material code G
Material Pricing Group 35
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard NEMA
Net weight 31.2 lb
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -4 .. 131 °F
Rated current 10.6/5.4 A
Rated flow 16.4 US gpm
Rated head 129.4 ft
Rated power - P2 0.78 kW
Rated speed 3240 rpm
Rated voltage 1 x 115/230 V V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size 80AA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 300-300 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

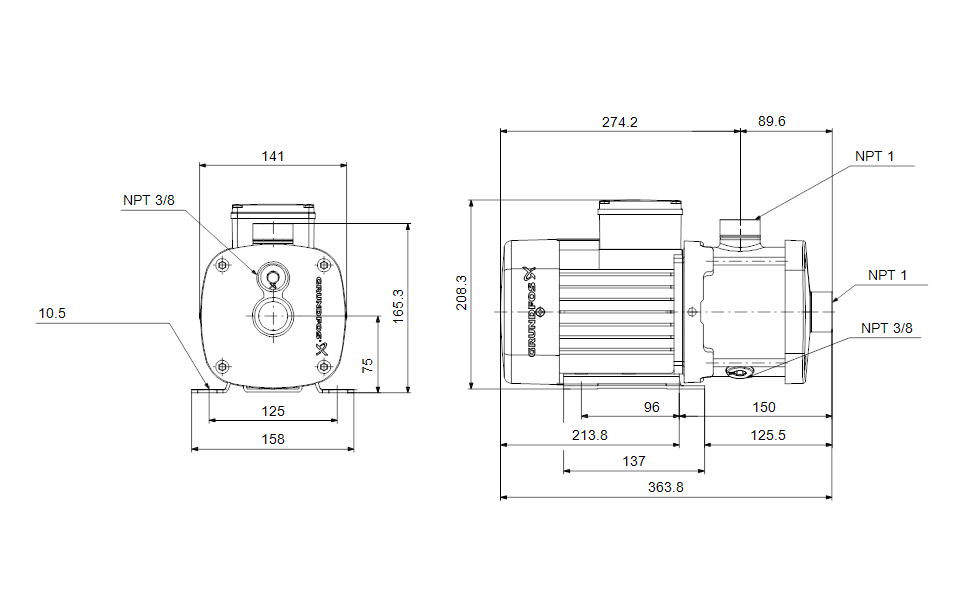

Dimensional Drawing

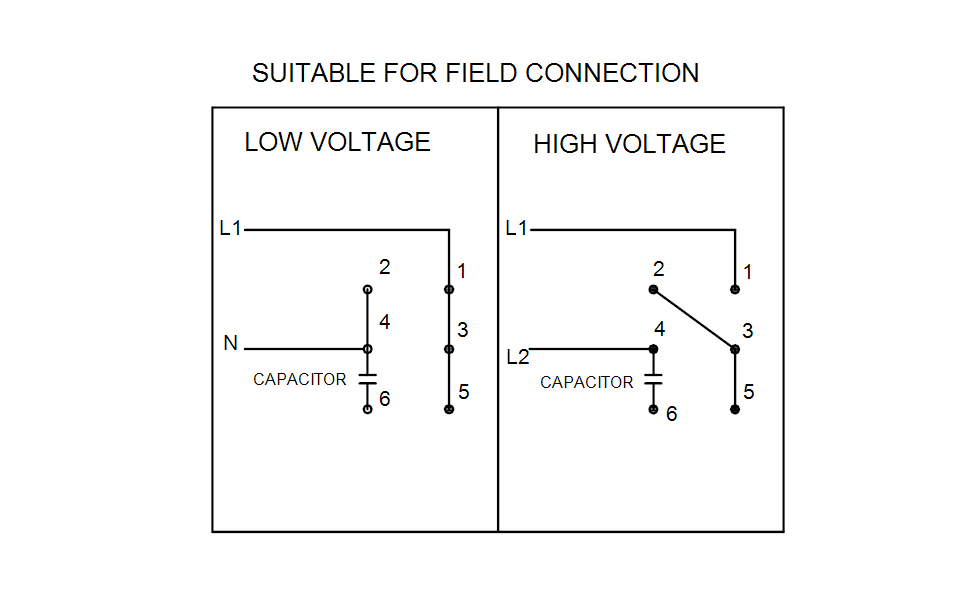

DWiring Diagram
