Grundfos 98915665 - DID-1 BF1-PH | Dosing Interface | Digital | Display

This item ships free!
GRUNDFOSSKU: 98915665

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

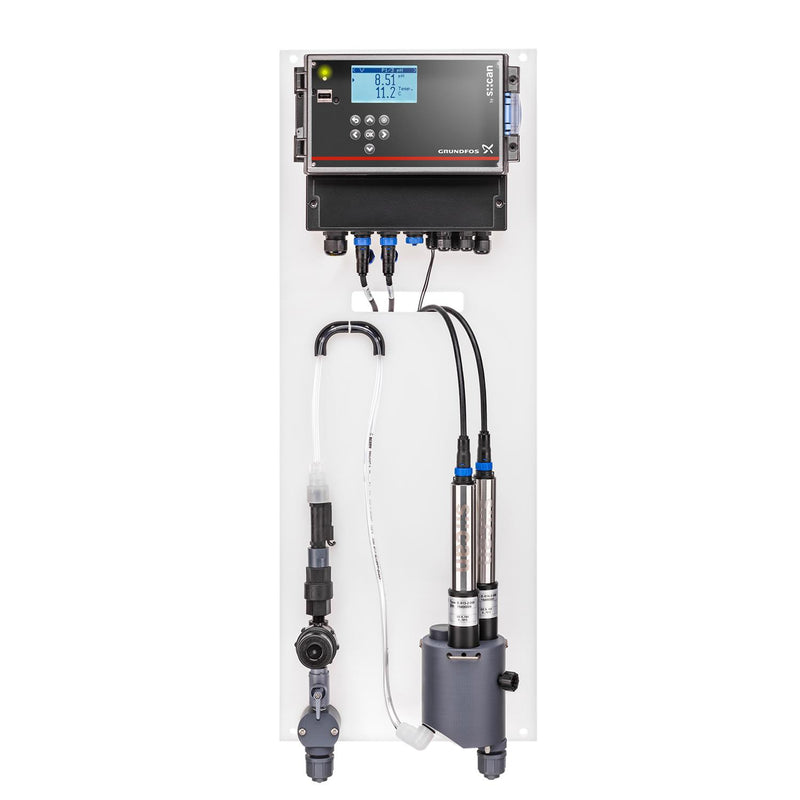

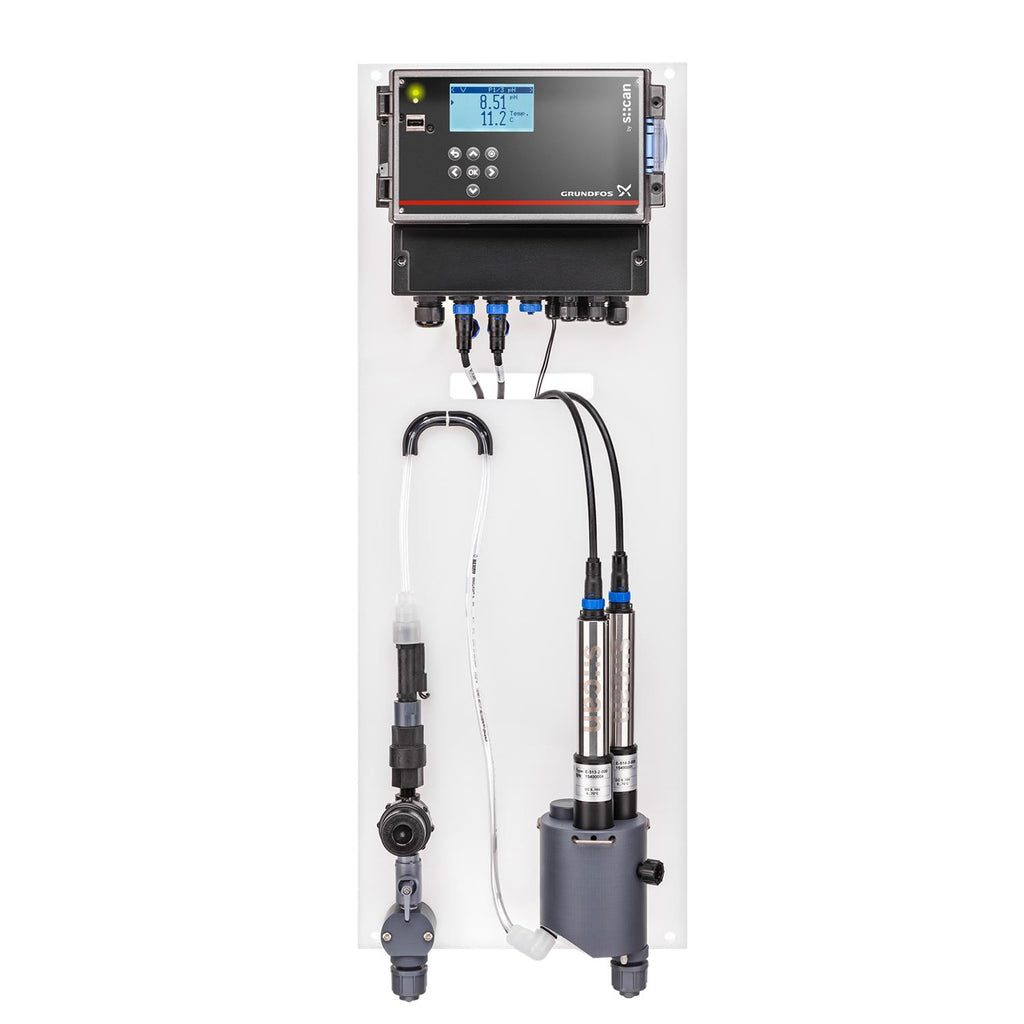

Grundfos 98915665 DID-1 BF1-PH is a digital dosing interface with display used to integrate and control chemical dosing systems; it fits pump and monitoring panels for industrial and water treatment operators.

Key features

  • Digital dosing interface with integrated display for user feedback
  • Compatible with controllers and measurement control systems (Tags: Controllers, Measurement Control)
  • Provides simplified system integration and clearer operator interaction for reliable dosing management

Applications

Likely used for chemical dosing, process control, water treatment, and monitoring applications where precise dosing communication and local display are needed.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98915665

EAN 5712603520551
Applications Dosing & Disinfection
Cable length and type 1
Enclosure class (IEC 34-5) 65/67
Language En
Liquid temperature range 0.1-45 °C
Mains frequency 50 / 60 Hz
Material Pricing Group 64
Maximum operating pressure 3 bar
Power 1 33 VA
Preassembled Preassembled on back plate
Product family DID
Rated voltage x 100-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sensor installation type BF1 -flowcell for 1 sensor
Sensor type Sensor(s) with plug
Type Sensor(s) with plug
Type key DID-1 BF1-PH

Motor Curves

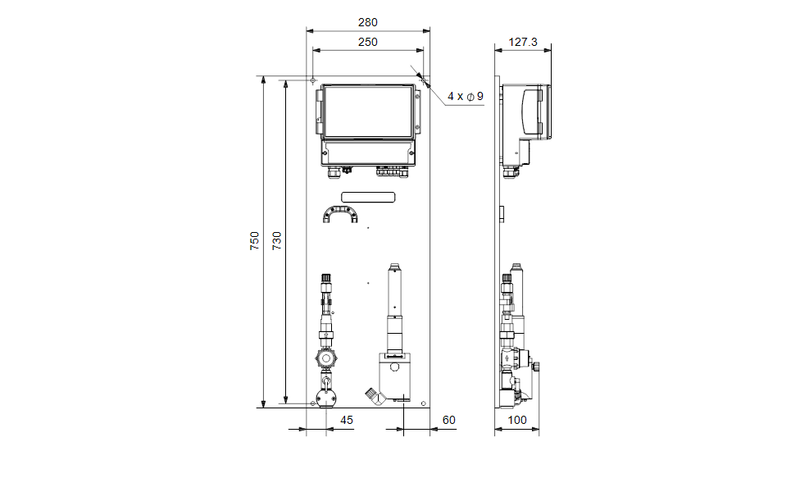

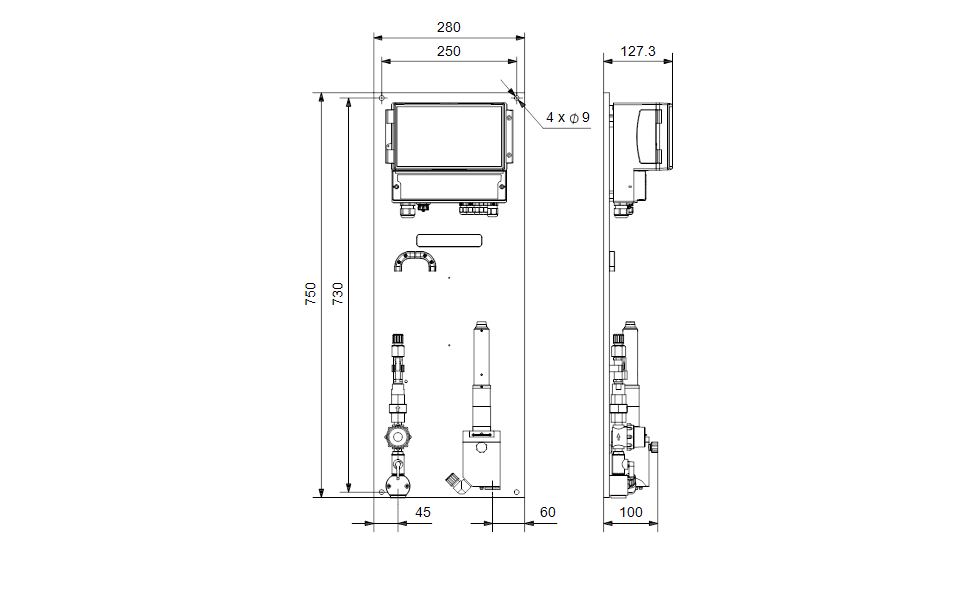

Dimensional Drawing
