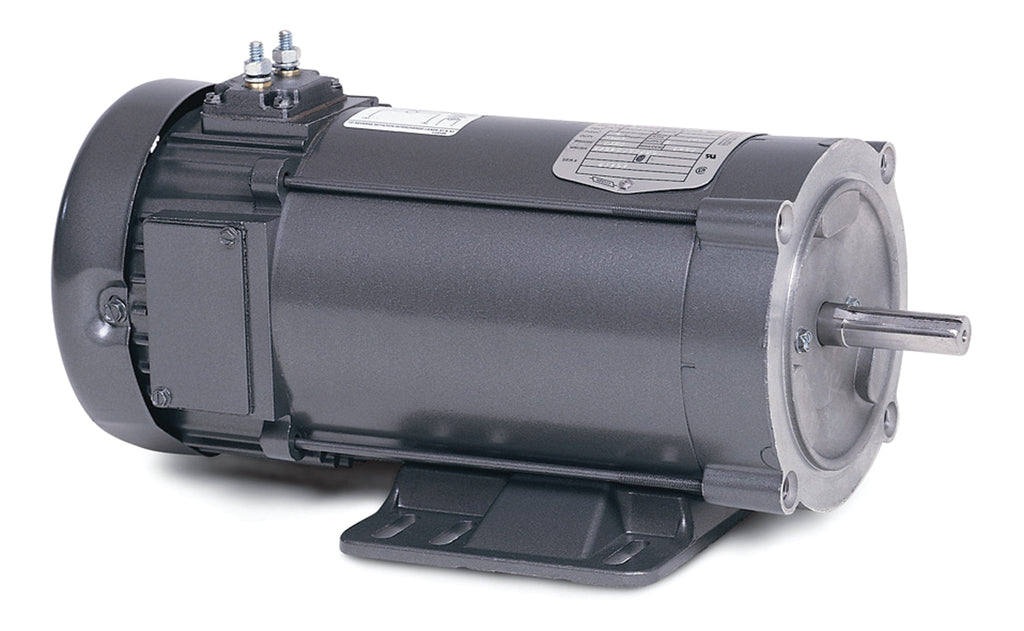

Baldor CDP3440-V12 - .75 HP, 1800RPM, DC, 56C, 3430P, TEFC, F1 75 HP 56°C

Save $828.00
BaldorSKU: CDP3440-V12

Price:
Sale price$1,242.00 Regular price$2,070.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance General Purpose DC Motors:

.75HP, 1800RPM, DC, 56C, 3430P, TEFC, F1

Product Code: CDP3440-V12

UPC 781568392164
Supplier Part Number CDP3440-V12
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 42.0
Armature Current 66.0 a
Armature Inertia 10.330 lb-ft2
Armature Voltage 12 V
Base Indicator Rigid
Base Speed 1,800 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit SPECIAL (OLD)
Motor Lead Quantity/Wire Size 2 @ 8 AWG
Motor Lead Termination Ring Terminals
Motor Standards NEMA
Mounting Arrangement F3
Output Power 0.75 hp
Overall Length 15.26 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
