Grundfos 96090993 - Auto Coupling Set

GRUNDFOSSKU: 96090993

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

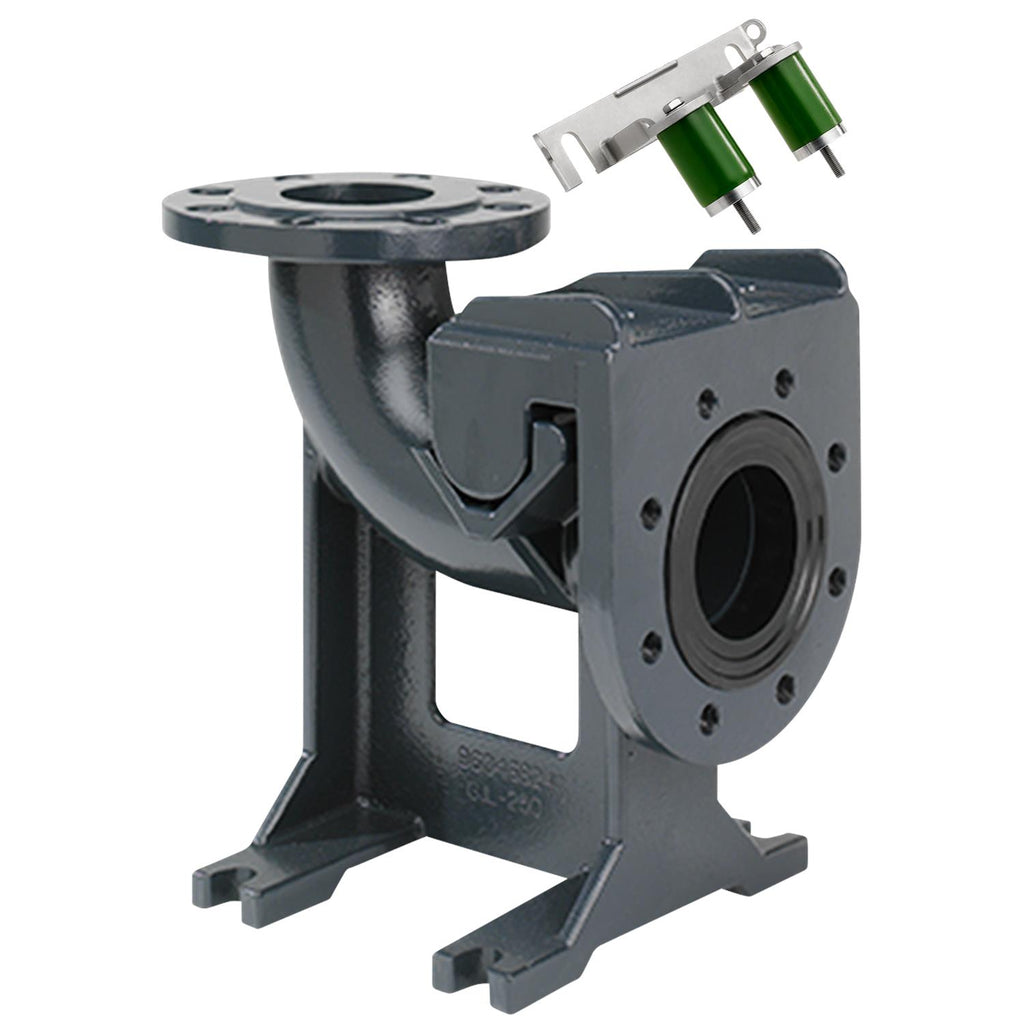

Auto coupling set | This accessory is used for submersed installation of Grundfos wastewater pumps. This set consists of: Baseplate
Guide claw*
Upper guide rail holder (Guide rails are not included)
Bolts and gasket for mounting the guide claw to the pump, when needed.

EAN 5700395878226
Applications Accessories
Connection DN 80
Fits to following products SE/SL/S
Flange standard DIN EN 1092-1
Gasket Rubber
Gross weight 77.2 lb
Material Cast iron
Material Pricing Group 91
Maximum operating pressure 10 bar
Net weight 61.4 lb
Number of gaskets 1
Number of screws 8
Product family Pumps accessories
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Size of inlet connection DN 80
Size of outlet connection DN 80
Standard DIN EN 1092-1
Surface treatment Powder coated
Type of inlet connection DIN
Type of outlet connection DIN
Danish VVS No. 391299714
Finnish LVI No. 4836165
Swedish RSK No. 5885904

Motor Curves

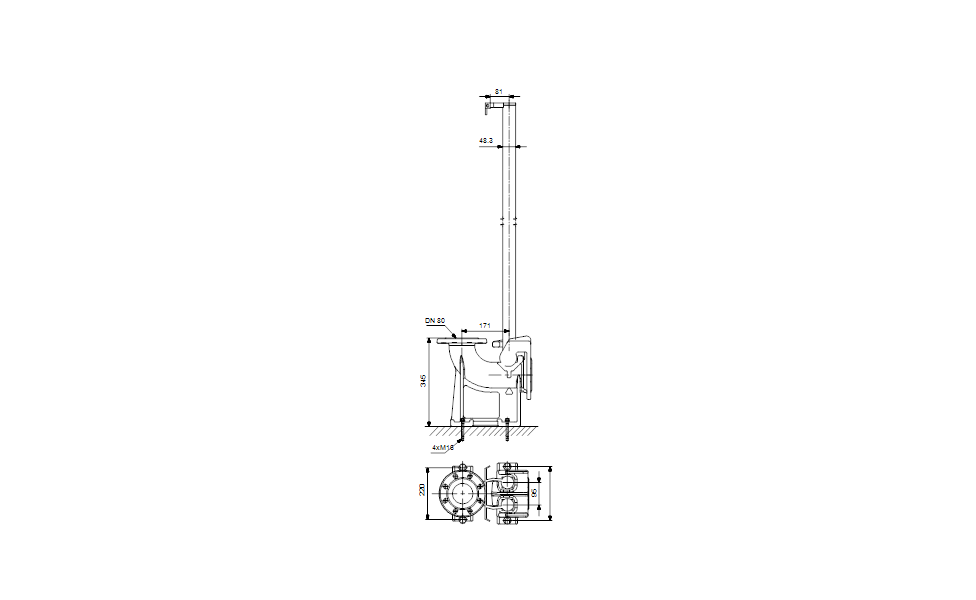

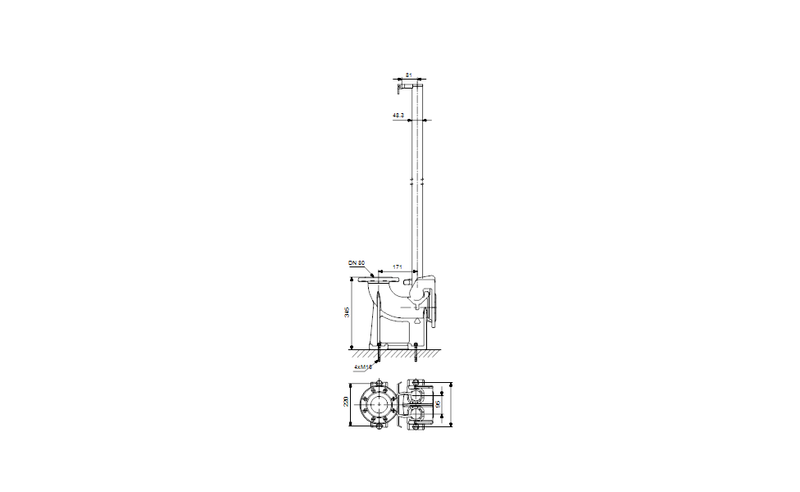

Dimensional Drawing
