Grundfos 96076063 - Auto Coupling Set

GRUNDFOSSKU: 96076063

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

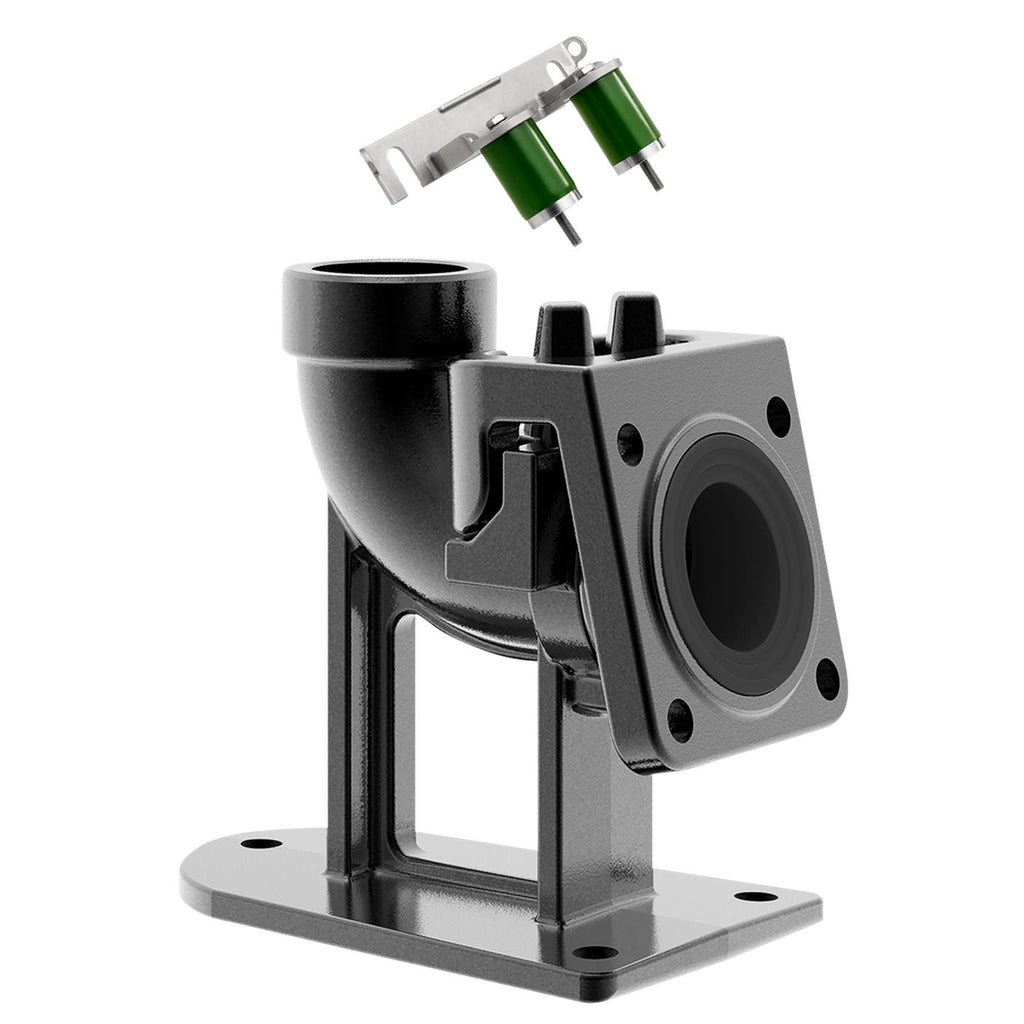

Auto coupling set | This accessory is used for submersed installation of Grundfos wastewater pumps. This set consists of: Baseplate
Guide claw*
Upper guide rail holder (Guide rails are not included)
Bolts and gasket for mounting the guide claw to the pump, when needed.

EAN 5700395274042
Applications Accessories
Connection 1 1/2 inch
Fits to following products SEG
Flange standard EN 10226
Gasket Rubber
Gross weight 22.0 lb
Material Cast iron
Maximum operating pressure 10 bar
Net weight 22.0 lb
Number of gaskets 0
Number of screws 4
Product family Pumps accessories
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size of inlet connection DN 40
Size of outlet connection 1 1/2 inch
Standard EN 10226
Surface treatment Powder coated
Type of inlet connection DIN
Type of outlet connection Rp
Danish VVS No. 391372050
Finnish LVI No. 4836106
Norwegian NRF no. 9045796

Motor Curves

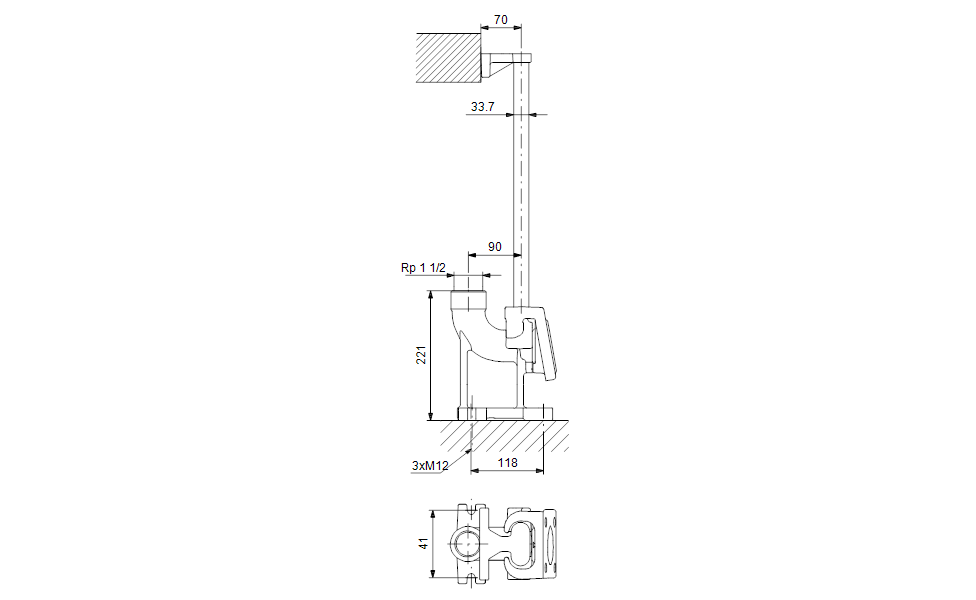

Dimensional Drawing
