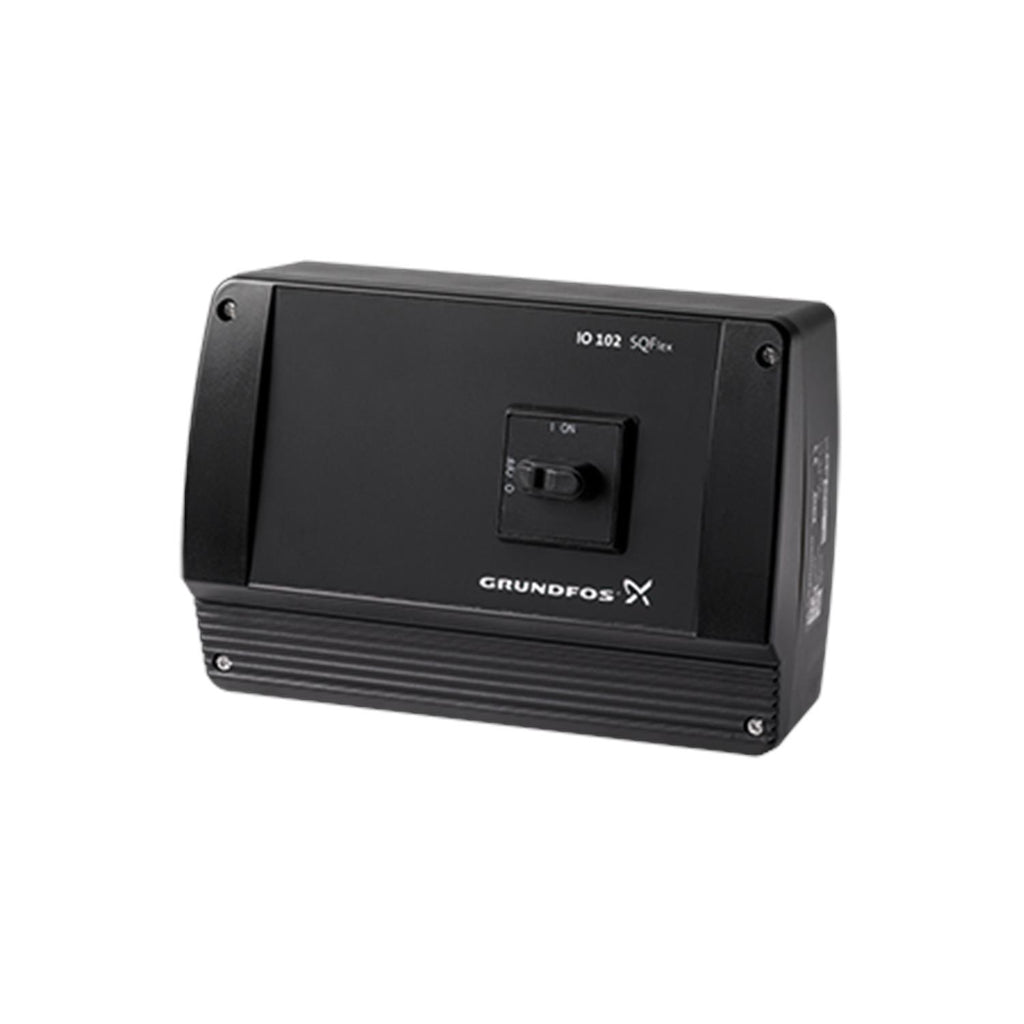

Grundfos 96475065 - IO 102

GRUNDFOSSKU: 96475065

Price:
Sale price$664.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

IO 102 The IO 102 breaker box is designed specifically forwind powered SQFlex systems. The IO 102 enables manual starting and stopping of thepump in an SQFlex Wind system and an SQFlex Combisystem. The on/off switch has a built-in electrical brake for theturbine. When the switch is in the "off" position, theturbine stops or slows down. The IO 102 rectifies the three-phase AC voltage fromthe wind turbine into DC voltage. Furthermore, the IO102 enables the combination of wind energy from thewind turbine and solar energy from the solar panel. At the same time, the IO 102 also functions as aconnection box joining all necessary cables.

EAN 5700395150100
Approvals CE
Enclosure class (IEC 34-5) IP55
Gross weight 5.17 lb
Mains frequency 50 / 60 Hz
Material Pricing Group 17
Net weight 5.17 lb
Product family IO 101, IO 102
Range of ambient temperature -22 .. 122 °F
Rated voltage 1 x 240 VAC - 15%/+10% V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price

Motor Curves

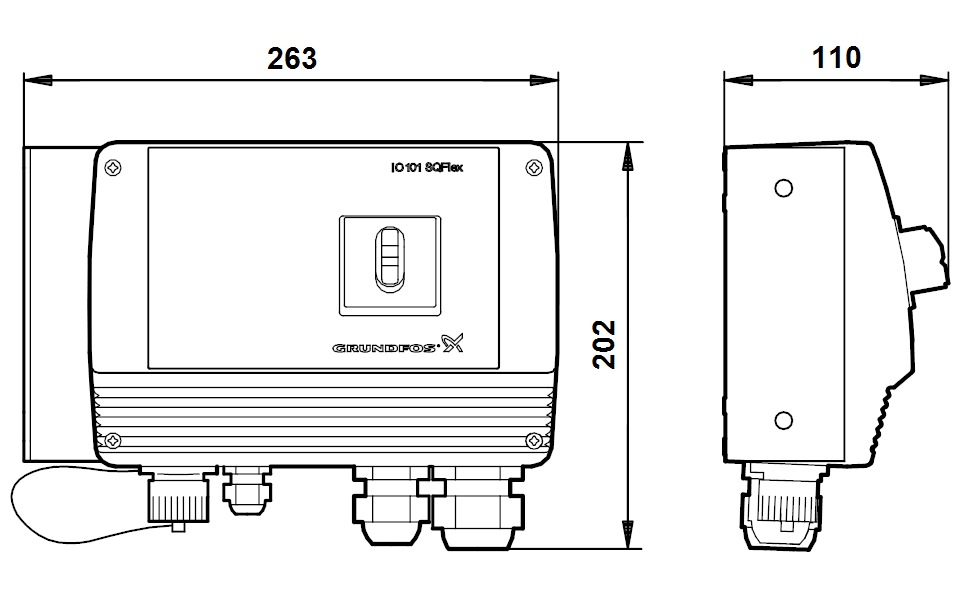

Dimensional Drawing

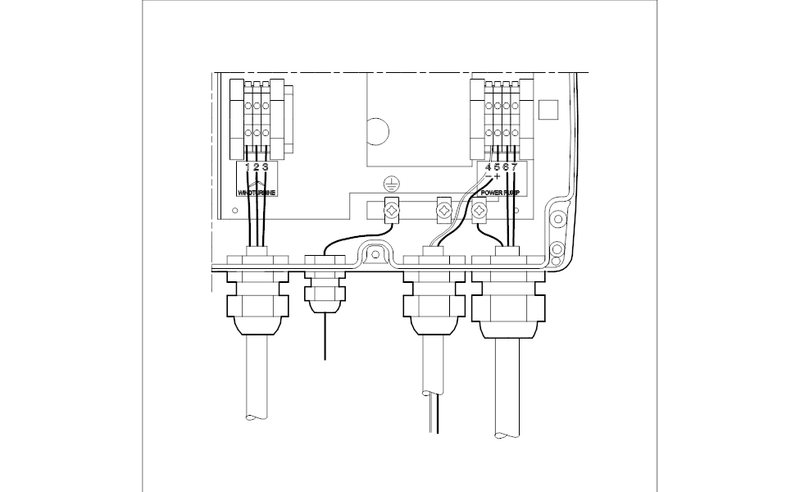

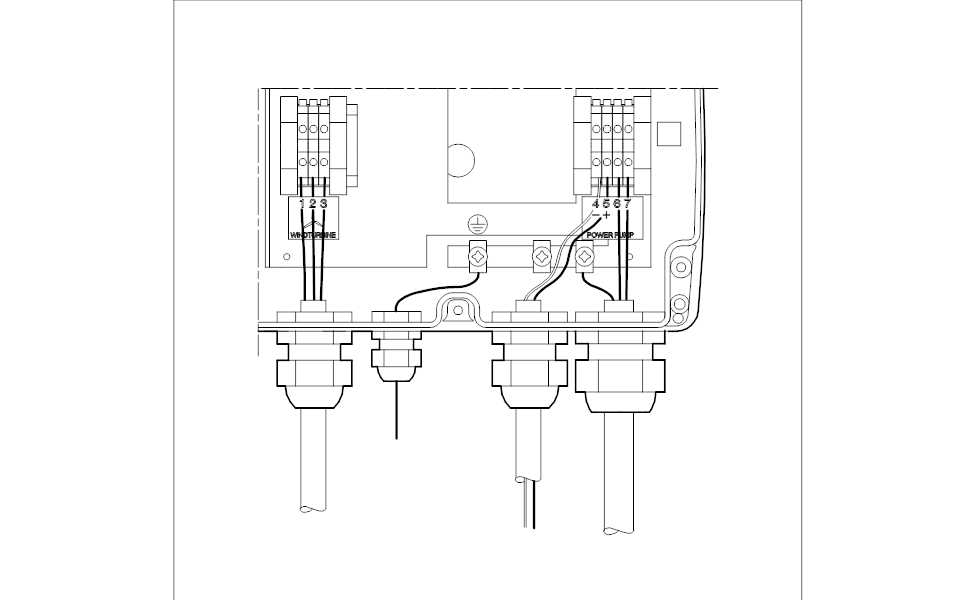

DWiring Diagram
