Grundfos 96515295 - MTR 3-8/8 A-WB-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

GrundfosSKU: 96515295

Price:
Sale price$4,518.00
Build to order – stocked components, typically available in 20 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96515295 · Submersible Multistage Pump — Tank Top
MTR1.5HP208-230YY/460YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

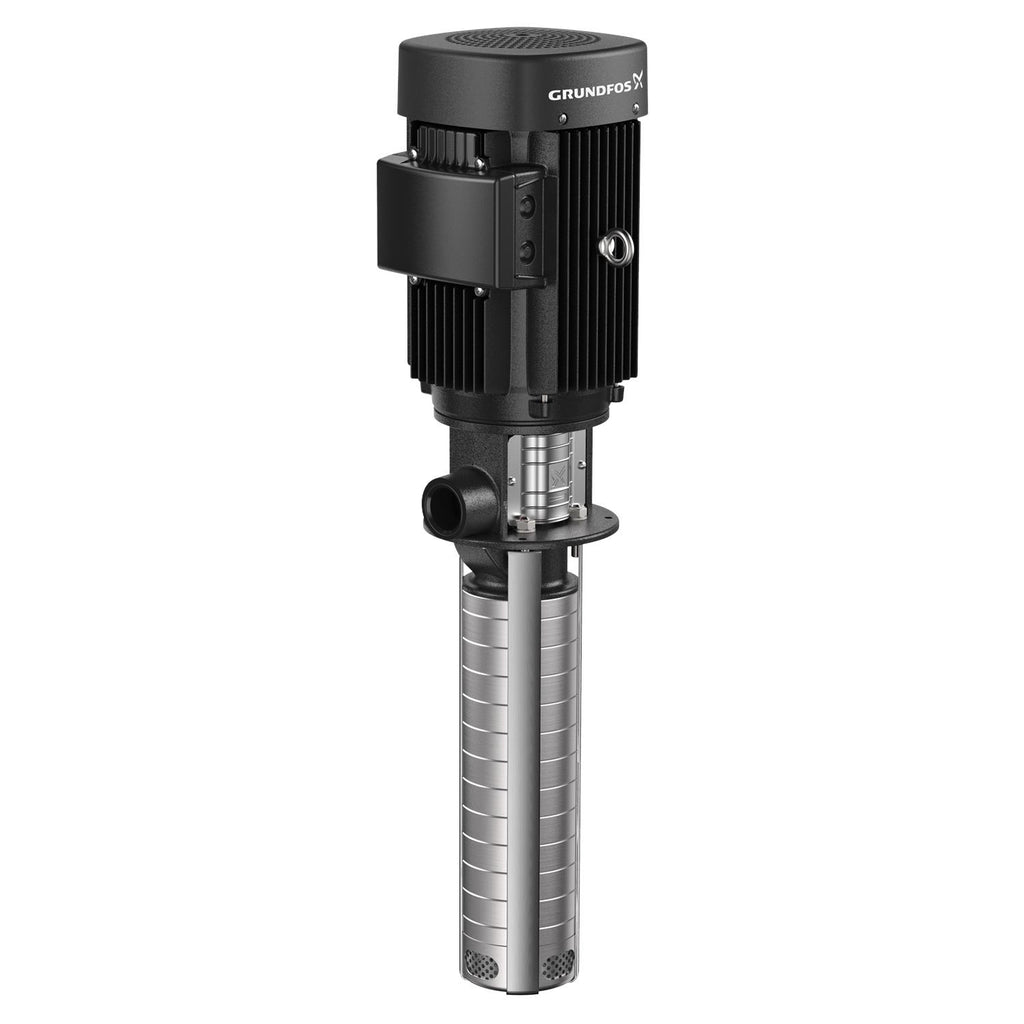

The Grundfos 96515295 (MTR 3-8/8 A-WB-A-HUUV) is a Submersible Multistage Pump — Tank Top. Vertical multistage pump for tank top mounting. For machine tool coolant, deionized water, and process liquid applications. Nominal performance: 15.4US gpm at 185.7ft. Rated 208-230YY/460YV, 3.0-Phase, 60 Hz. Applications include Machining.

Power
1.5HP
Voltage
208-230YY/460YV
Phase
3.0-Phase
Max Flow
15.4US gpm
Max Head
185.7ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Tank Top Installation

MTR installs directly on the tank lid — no pipe supports, no baseplate, no inline piping modifications. Ready to run in the space the tank already occupies.

Stainless Steel Throughout

All wetted parts in stainless steel. No corrosion from coolants, deionized water, cutting fluids, or mild process chemicals.

Multistage for High Head in Small Diameter

Multiple stages in a 4" or 6" diameter column provide the head of a much larger pump. Ideal where vertical space exists but floor space is limited.

Wide Flow and Head Range

MTR series covers 0.5 to 16 m³/h flow and up to 235 m head. Confirms correct model for your system requirements.

MTRE Variable Speed Option

MTRE adds an integrated frequency converter for constant pressure control. Same tank top installation, no external VFD required.

Genuine Grundfos Parts Available

As an authorized Grundfos distributor, PumpStop stocks and can source MTR repair kits, mechanical seals, and service components.

Model Information — 96515295
Series: MTR
Impeller Material: Stainless steel
Shaft Seal: HUUV
Technical Specifications
Model Number 96515295
Product Series MTR
Series Description Submersible Multistage Pump — Tank Top
Power 1.5HP
Voltage 208-230YY/460YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3440-3480rpm
Pump Speed 3466rpm
Full Load Current 4,45-4,3/2,16A
Motor Type 80CA
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 84.1-83.5%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 15.4US gpm
Nominal Head 185.7ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Outlet Connection 1 1/4inch
Pipe Standard NPT(F)
Impeller Material Stainless steel
Shaft Seal HUUV
Approvals / Certifications CE, EAC, UKCA, RCM
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. MTR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — MTR Series
✓ Product Data Sheet — 96515295
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals CE,EAC,UKCA,RCM,cURus/cCSAus,Morocco
Approvals for motor CE,CC
Built-in motor protection NONE
Chambers 8
Code for shaft seal HUUV
Connect code WB
Connection NPT(F)
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 56C
Frequency 60 Hz
Frequency converter NONE
Gross weight 40.4 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:MTR 3-8/8 A-WB-A-HUUV
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 10.6 in
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum ambient temperature 140 °F
Maximum operating pressure 362.59 psi
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 56C
Motor efficiency at 1/2 load 0.82
Motor efficiency at 3/4 load 83.5-81.0 %
Motor efficiency at full load 1 84.1-83.5 %
Motor standard NEMA
Motor type 80CA
n rpm F
Net weight 33.3 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 1.5 HP
Phase 3
Power factor 1 0.84-0.78
Pump version A
Rated current 4,45-4,3/2,16 A
Rated flow 15.4 US gpm
Rated head 185.7 ft
Rated power - P2 1.5 HP
Rated speed 3440-3480 rpm
Rated voltage 3 x 208-230YY/460Y V
Sales region Namreg
Service factor 1.15
Shaft Product name:MTR 3-8/8 A-WB-A-HUUV
Shaft seal HUUV
Standard NEMA
Starting current 7.2
Suitable for 5/6 Hz N
Terminal box position 6
Type 80CA
Type of connection NPT(F)
Version A

Motor Curves

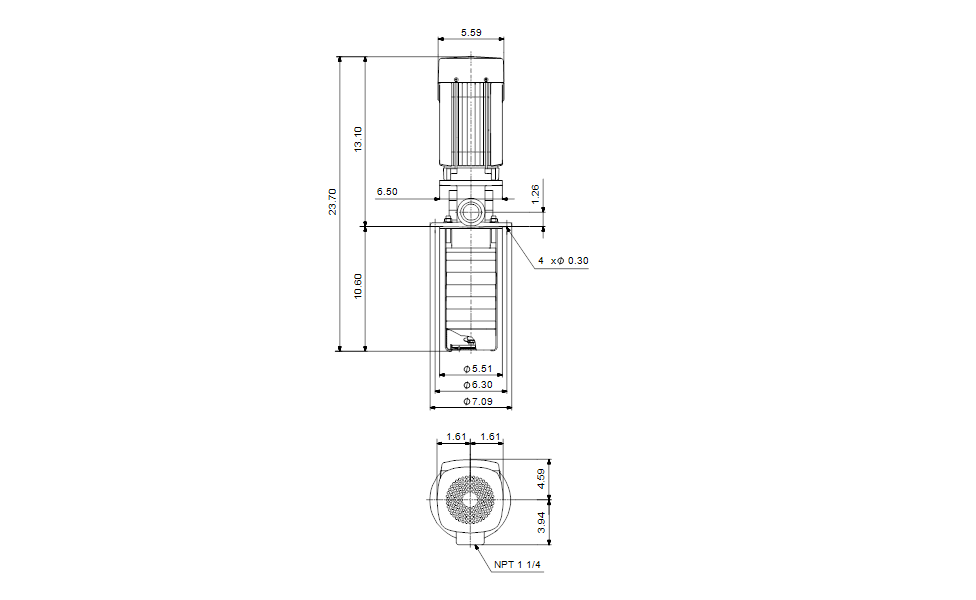

Dimensional Drawing

DWiring Diagram
