Worldwide, 12 Lead, Three-Phase, 4 Pole, 60HZ, 1800 RPM, AHD5112 277V 60HZ

WorldWide ElectricSKU: AHD5112

Price:
Sale price$2,437.36
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

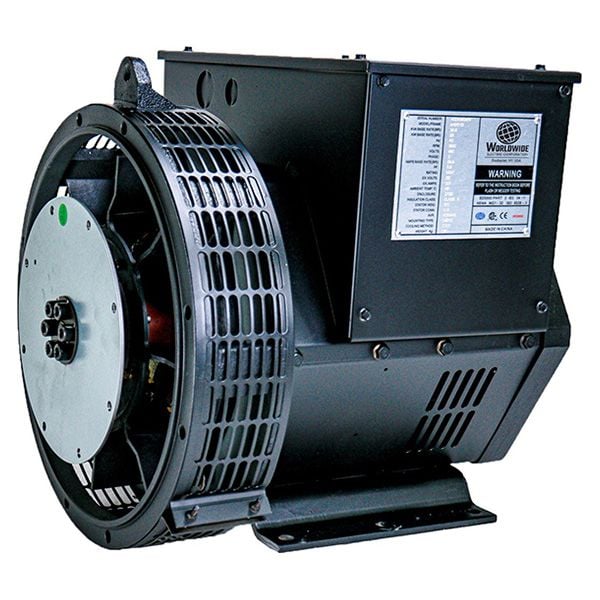

WorldWide Electric Single Bearing Generator - AHD5112

Introducing the WorldWide Electric Single Bearing Generator, model AHD5112, designed for reliable performance in demanding applications. This robust generator features a 12 lead configuration, operates at 277V and 60Hz, and delivers a powerful output of 28.8 KVA / 23 KW. With a three-phase design and a speed of 1800 RPM, it ensures efficient energy conversion and consistent power supply.

Key specifications include:

  • Type: Single Bearing
  • Voltage: 277V / 480V
  • Frequency: 60 Hz
  • Power Factor: 0.8
  • Temperature Class: H (125 Deg C)
  • Ambient Temperature: 40 Deg C
  • SAE: 4x7.5

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the AHD5112 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

Ambient Temp 40C
Approximate Weight (lbs) 265
Bearing Single
Class (105C) kW 21
Class B (80C) kVA 19.7
Class B (80C) kW 15.8
Class F (105C) kVA 26.3
Class H (125C) kVA 28.8
Class H (125C) kW 23
Efficiency % 85.6
Phase Three-Phase
RPM 1800
