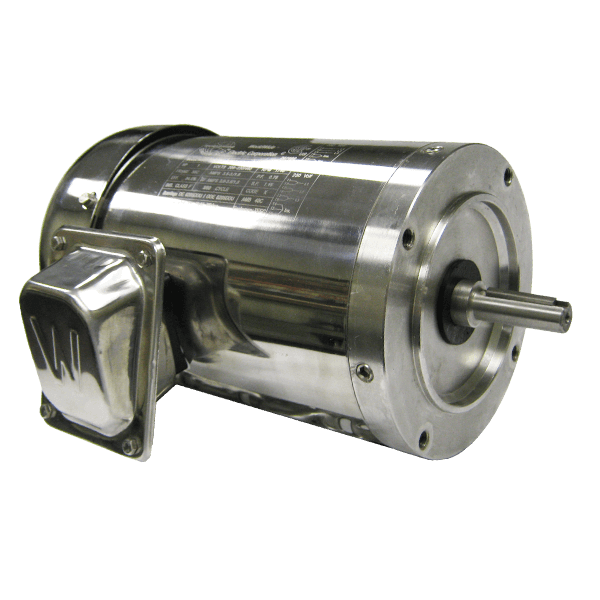

Washdown Duty Motor, 0.75 HP, 1800 RPM, 230/460V, 56C Frame, C-Face Round Body, TEFC Enclosure
Roll over image to zoom in Click on image to zoom
Washdown Duty Motor, 0.75 HP, 1800 RPM, 230/460V, 56C Frame, C-Face Round Body, TEFC Enclosure
WorldWide Electric Motors

Washdown Duty Motor, 0.75 HP, 1800 RPM, 230/460V, 56C Frame, C-Face Round Body, TEFC Enclosure 460V 60HZ Three Phase 75 HP Stainless Steel 56°C

Worldwide ElectricSKU: WSS34-18-56CRD
Price:
$238.73

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Stainless Steel

The WorldWide Electric WSS34-18-56CRD (Stainless Steel) for WorldWide Electric pump systems.

Part Specifications
Part Number WSS34-18-56CRD
Material Stainless Steel
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Category
Electric Motors
Subcategory
Stainless Steel / Washdown Duty Motors
Approximate Weight (lbs)
33
Degree of Protection
IP56
Enclosure Type
TEFC
FL Efficiency (%)
82.5
Frame Size
56C
Frequency
60/50 HZ*
Full Load Amps
1.2
Horsepower
0.75
Insulation Class
Class F
Mounting Type
C-Face Round Body (Footless)
Phase
Three-Phase
RPM
1800
Service Factor
1.15
Voltage
230/460
