Image shown may not be actual product

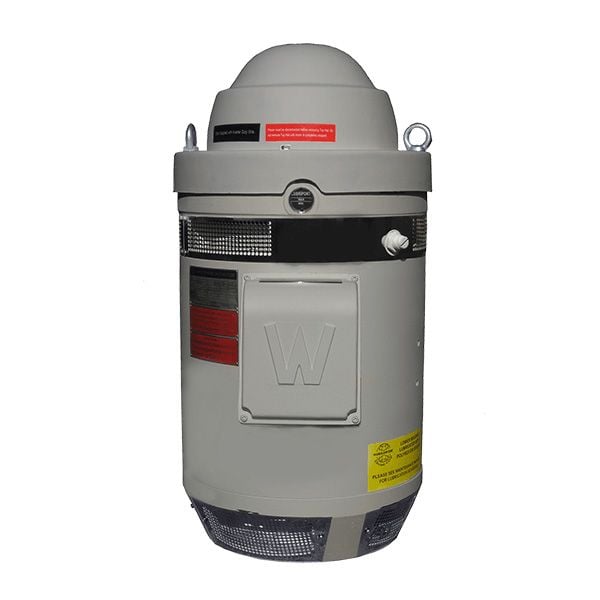

Vertical Hollow Shaft Motor, 250 HP, 1800 RPM, 460V, 445TP Frame, P-Base
Roll over image to zoom in Click on image to zoom
Vertical Hollow Shaft Motor, 250 HP, 1800 RPM, 460V, 445TP Frame, P-Base
WorldWide Electric Motors

Vertical Hollow Shaft Motor, 250 HP, 1800 RPM, 460V, 445TP Frame, P-Base 460V 60HZ Three Phase 250 HP Cast Iron

Worldwide ElectricSKU: WPEVHS250-18-460-445TP-DB-20
Price:
$24,559.00

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Shaft
ShaftCast Iron

The WorldWide Electric WPEVHS250-18-460-445TP-DB-20 is a replacement shaft (Cast Iron) for WorldWide Electric pump systems. The rotating component that transmits power from the motor to the impeller.

Part Specifications
Part Number WPEVHS250-18-460-445TP-DB-20
Part Type Shaft
Material Cast Iron
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Category
Electric Motors
Subcategory
Vertical Hollow Shaft Motors
Approximate Weight (lbs)
2206
Degree of Protection
IP23
Enclosure Type
Weather Protected (WPI)
FL Efficiency (%)
95.8
Frame Size
445TP
Frequency
60 HZ
Full Load Amps
276
Horsepower
250
Insulation Class
Class F
Mounting Type
P-Base
Phase
Three-Phase
RPM
1800
Service Factor
1.15
Voltage
460
