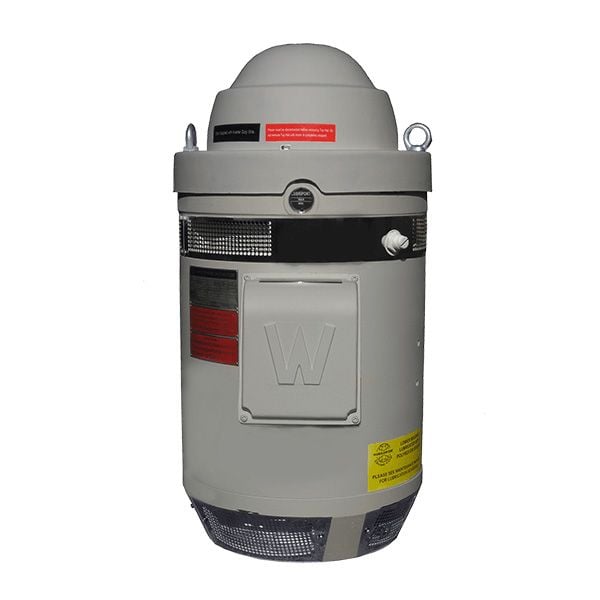

Vertical Hollow Shaft Motor, 20 HP, 1800 RPM, 230/460V, 256TP Frame, P-Base - WPEVHS20-18-256TP-16.5 460V 60HZ Three Phase 20 HP Cast Iron

WorldWide ElectricSKU: WPEVHS20-18-256TP-16.5

Price:
Sale price$3,870.64
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Vertical Hollow Shaft Motor - 20 HP

Introducing the WPEVHS 20 HP Vertical Hollow Shaft Motor, designed for optimal performance in various pumping applications. This premium efficiency motor operates at 1800 RPM and is compatible with both 230V and 460V power supplies, making it versatile for different setups. With a robust 256TP frame and a durable cast iron construction, this motor is built to withstand demanding environments.

Key features include:

  • Power: 20 HP
  • Speed: 1800 RPM
  • Voltage: 230/460V
  • Phase: 3 Phase, 60 Hz
  • Frame: 256TP
  • Mounting: P-Base with a 16.5-inch base
  • Includes MC250-1 Coupling

This Vertical Hollow Shaft Motor is ideal for applications requiring reliable and efficient operation. At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

Category Electric Motors
Subcategory Vertical Hollow Shaft Motors
Approximate Weight (lbs) 527
Degree of Protection IP23
Enclosure Type Weather Protected (WPI)
FL Efficiency (%) 93
Frame Size 256TP
Frequency 60 HZ
Full Load Amps 23.5
Horsepower 20
Insulation Class Class F
Mounting Type P-Base
Phase Three-Phase
RPM 1800
Service Factor 1.15
Voltage 230/460

Motor Curves
