Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

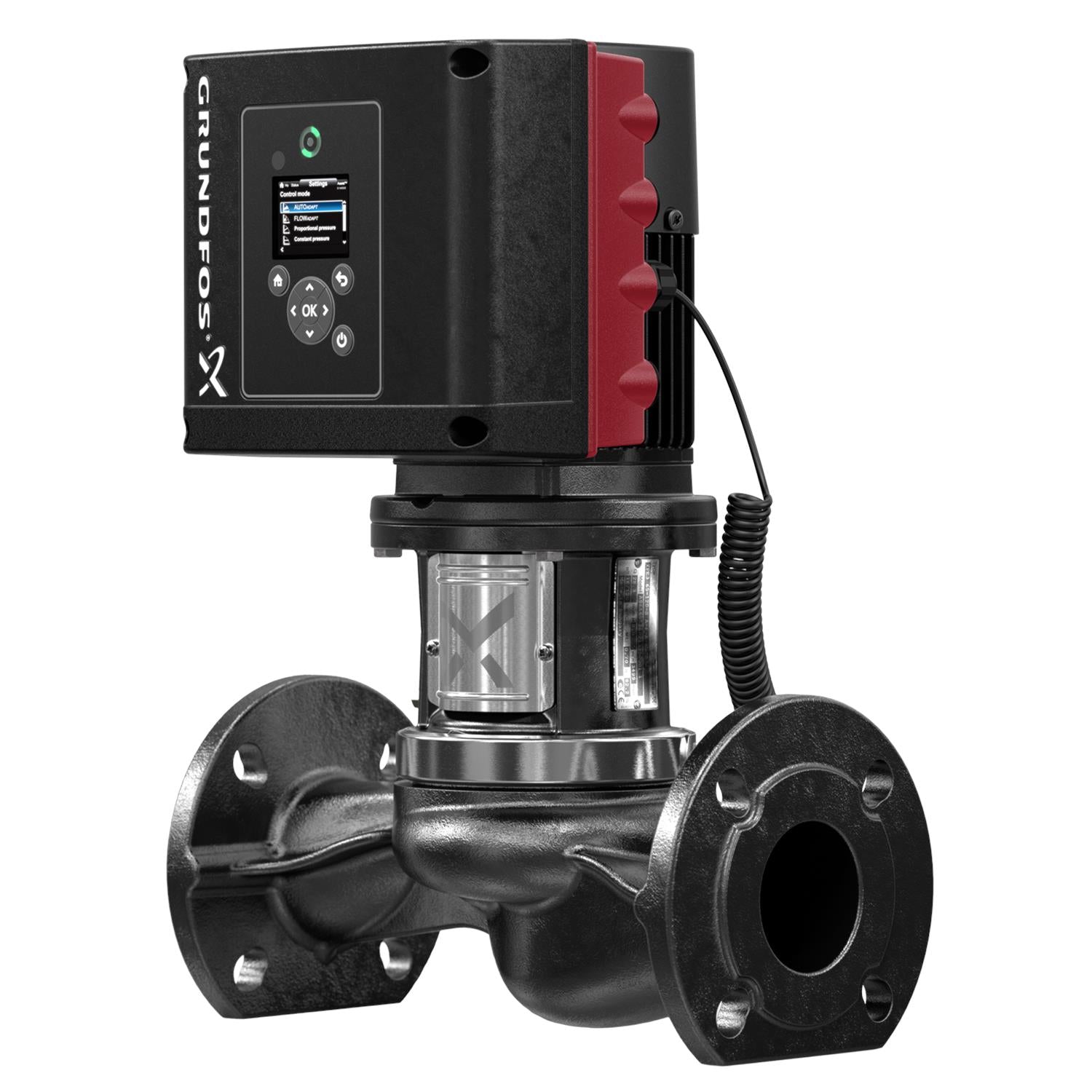

TPE3 50-150 S-A-G-A-BQQE-FYB · Grundfos Accessory / Spare Part / Control
The Grundfos 98819628 (TPE3 50-150 S-A-G-A-BQQE-FYB) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 100US gpm at 31.17ft. Rated 440-480V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating.
Power
1HP
Voltage
440-480V
Phase
3.0-Phase
Max Flow
100US gpm
Max Head
31.17ft
Max Pressure
174.05psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — TPE3 50-150 S-A-G-A-BQQE-FYB
Series: ACC
Model Code: TPE3 50-150 S-A-G-A-BQQE-FYB
Impeller Material: Composite
Housing Material: Cast iron
Shaft Seal: BQQE
Flange Rating: PN 12
Technical Specifications
| Model Number | 98819628 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 1HP |
| Voltage | 440-480V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 360-4000rpm |
| Pump Speed | 3800rpm |
| Full Load Current | 1.65A |
| Motor Type | 80A |
| Motor Protection | ELEC |
| Motor Efficiency Class | IE5 |
| Motor Efficiency | 86.4% |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 100US gpm |
| Nominal Head | 31.17ft |
| Max Operating Pressure | 174.05psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 122°F |
| Min Ambient Temperature | -4°F |
| Nominal Pipe Bore | GF 53 |
| Pipe Pressure Rating | PN 12 |
| Pipe Standard | GF |
| Impeller Material | Composite |
| Housing Material | Cast iron |
| Shaft Seal | BQQE |
Applications
HVAC: Heating
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 440-480V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — TPE3 50-150 S-A-G-A-BQQE-FYB
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- Actual impeller diameter
- 2.91 in
- Built-in motor protection
- ELEC
- Code for shaft seal
- BQQE
- Config. file no
- 98484782
- Connect code
- G
- Connection
- PN 12
- Control panel
- HMI300 - Graphical
- Curve tolerance
- ISO9906:2012 3B2
- Diameter
- 2.91 in
- Enclosure class (IEC 34-5)
- IP55
- Flange size for motor
- 56C
- Frequency
- 60 Hz
- Frequency converter
- Built-in
- Function Module
- FM300 - Advanced
- Gross weight
- 73.9 lb
- Housing
- Cast iron
- IE Eff. Class
- IE5
- IE efficiency
- Product name:TPE3 50-150 S-A-G-A-BQQE-FYB
- IE Efficiency class
- IE5
- Impeller
- Composite
- Insulation
- F
- Insulation class (IEC 85)
- F
- IP Class
- IP55
- Length
- 11 1/16 in
- Liquid max temp
- 248°F
- Liquid temperature range
- -13 .. 248 °F
- Material code
- A
- Maximum head
- 49.22 ft
- Maximum operating pressure
- 174.05 psi
- Minimum ambient temperature
- -4°F
- Motor
- 56C
- Motor efficiency at full load 1
- 0.864
- Motor type
- 80A
- n rpm
- F
- Net weight
- 58.0 lb
- P2 kW
- 1 HP
- Phase
- 3
- Power factor 1
- 0.73
- Pressure rating for connection
- PN 12
- Pump housing
- Cast iron
- Pump version
- A
- Range of ambient temperature
- -4 .. 122 °F
- Rated current
- 1.65 A
- Rated flow
- 100 US gpm
- Rated head
- 31.17 ft
- Rated power - P2
- 1 HP
- Rated speed
- 360-4000 rpm
- Rated voltage
- 3 x 440-480 V
- Shaft
- Product name:TPE3 50-150 S-A-G-A-BQQE-FYB
- Shaft seal
- BQQE
- Size of connection
- GF 53
- Type
- 80A
- Type of connection
- GF
- Version
- A

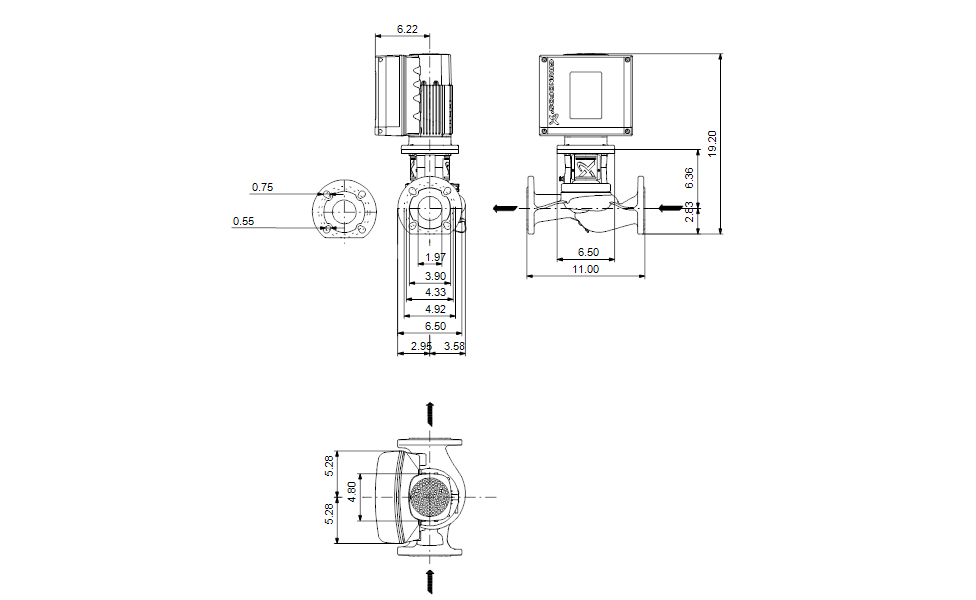

Dimensional Drawing
Wiring Diagram
