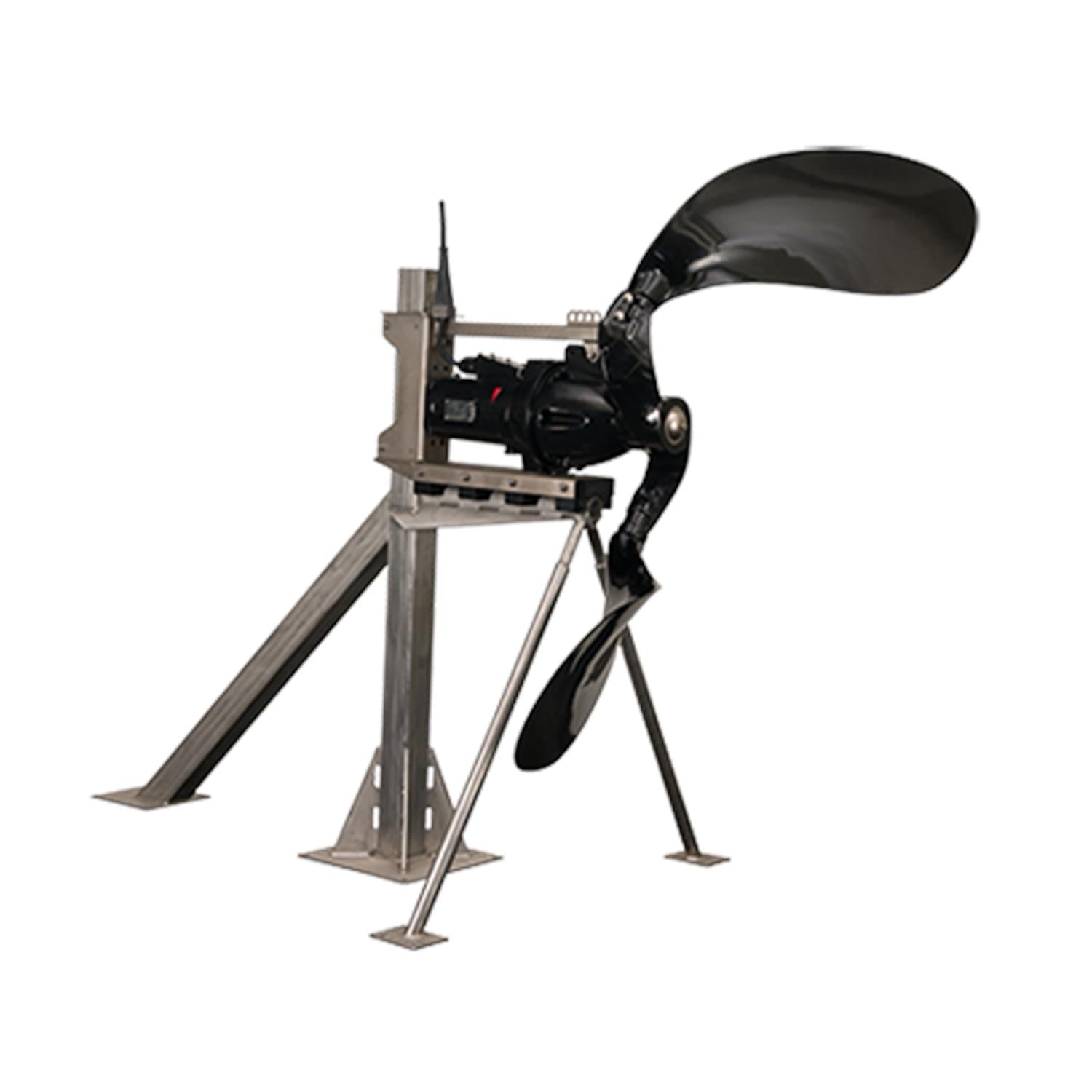

Grundfos 98788136 - SFG.22.91 .35.6.0H
Grundfos 98788136 - SFG.22.91 .35.6.0H
Grundfos 98788136 - SFG.22.91 .35.6.0H
Grundfos 98788136 - SFG.22.91 .35.6.0H
Grundfos 98788136 - SFG.22.91 .35.6.0H
Grundfos 98788136 - SFG.22.91 .35.6.0H

Grundfos 98788136 - SFG.22.91 .35.6.0H

GRUNDFOSSKU: 98788136
Price:
$20,950.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98788136 - SFG.22.91 .35.6.0H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712601395663
Applications Wastewater
Motor efficiency at full load 1 0.85
Power factor 1 0.73
Rated voltage 3 x 460 V
Power input - P1 1.9 kW
Maximum installation depth 66 m
Cos phi - p.f. at 1/2 load 0.54
Maximum current consumption 0.54
Starting current 22 A
Pump outlet 0.54
Pump inlet 0.54
Connect code 0.54
Mains frequency 60 Hz
Insulation class (IEC 85) H
Cos phi - p.f. at 3/4 load 0.66
Motor efficiency at 1/2 load 0.839
Built-in motor protection PTC THERMISTOR
Net weight 390.0 lb
Number of poles 6
Start. method direct-on-line
Rated power - P2 1.6 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.856
Rated current 3.5 A
Cable type S1BN8-F 11G1.5
Voltage tolerance +10/-10 %
Explosion proof no
Type of cable plug NO
Length of cable 15 m
Moisture sensor without moisture sensors
pH-value range 45203
Water-in-oil sensor with water-in-oil sensor
Rated flow 31000 US gpm
Thrust to power 1.064
Diameter 90.6 in
Motor AISI EN-GJL-250
Power 1 1.9 kW
Size 100/100 mm
Axial trust force 1840 N
Thickness 450 micrometre
Type S1BN8-F 11G1.5
Primary shaft seal 2 RADIAL LIP SEALS
Fits column profile tube, size 100/100 mm
Propeller speed 35 rpm
Mean velocity 0.47 m/s
Standard ISO 21630
Propeller diameter 2300 mm

Motor Curves

Dimensional Drawing

DWiring Diagram
