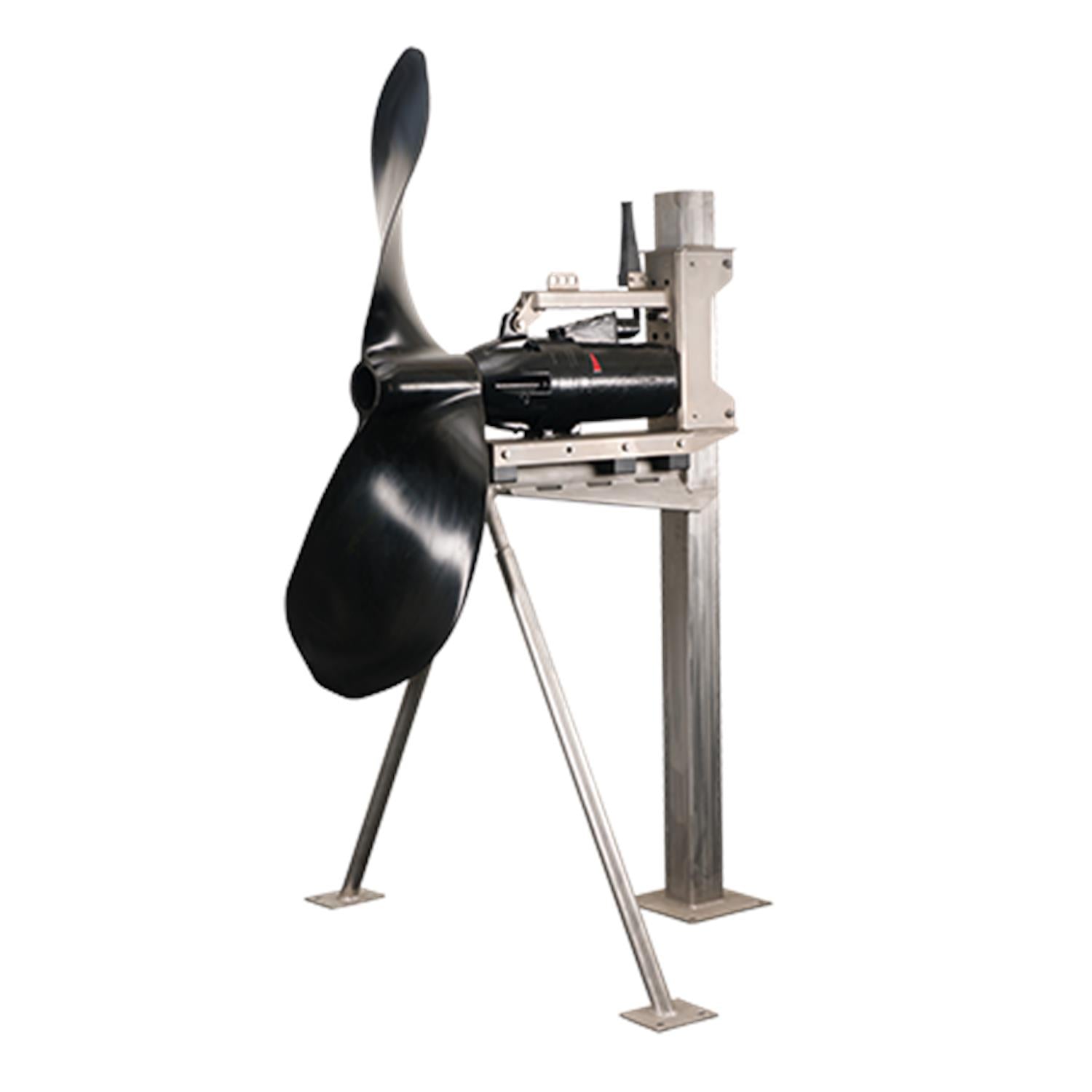

Grundfos 98788117 - SFG.10.51 .50.6.0H
Roll over image to zoom in Click on image to zoom
Grundfos 98788117 - SFG.10.51 .50.6.0H
Grundfos Pumps & Systems

Grundfos 98788117 - SFG.10.51 .50.6.0H

GRUNDFOSSKU: 98788117
Price:
$17,733.00

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
98788117 · Grundfos Accessory / Spare Part / Control
ACC460V3-Phase60 HzIP68

The Grundfos 98788117 (SFG.10.51 .50.6.0H) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 460V, 3-Phase, 60 Hz. Applications include Municipal wastewater treatment.

Voltage
460V
Phase
3-Phase
Max Flow
10500US gpm
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 98788117
Series: ACC
Technical Specifications
Model Number 98788117
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Voltage 460V
Phase 3-Phase
Frequency 60 Hz
Motor Speed 1167rpm
Full Load Current 2.4A
Motor Protection PTC THERMISTOR
Insulation Class H
Protection Class (IP) IP68
Nominal Flow 10500US gpm
Applications
Municipal wastewater treatment
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 98788117
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 98788117 · 98788117Authorized Grundfos Distributor · pump-stop.com
EAN
5712601395472
Applications
Wastewater
Axial trust force
665 N
Built-in motor protection
PTC THERMISTOR
Cable type
S1BN8-F 11G1.5
Connect code
0.31
Cos phi - p.f. at 1/2 load
0.31
Cos phi - p.f. at 3/4 load
0.41
Diameter
51.2 in
Enclosure class (IEC 34-5)
IP68
Explosion proof
no
Fits column profile tube, size
100/100 mm
Insulation class (IEC 85)
H
Length of cable
15 m
Mains frequency
60 Hz
Maximum current consumption
0.31
Maximum installation depth
66 m
Mean velocity
0.5 m/s
Moisture sensor
without moisture sensors
Motor
AISI EN-GJL-250
Motor efficiency at 1/2 load
0.73
Motor efficiency at 3/4 load
0.795
Motor efficiency at full load 1
0.828
Net weight
203.0 lb
Number of poles
6
pH-value range
45203
Power 1
0.85 kW
Power factor 1
0.49
Power input - P1
0.85 kW
Primary shaft seal
2 RADIAL LIP SEALS
Product family
SFG
Propeller diameter
1300 mm
Propeller speed
50 rpm
Pump inlet
0.31
Pump outlet
0.31
Rated current
2.4 A
Rated flow
10500 US gpm
Rated power - P2
0.7 kW
Rated voltage
3 x 460 V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size
100/100 mm
Standard
ISO 21630
Start. method
direct-on-line
Starting current
22 A
Thickness
450 micrometre
Thrust to power
0.887
Type
S1BN8-F 11G1.5
Type of cable plug
NO
Voltage tolerance
+10/-10 %
Water-in-oil sensor
with water-in-oil sensor
