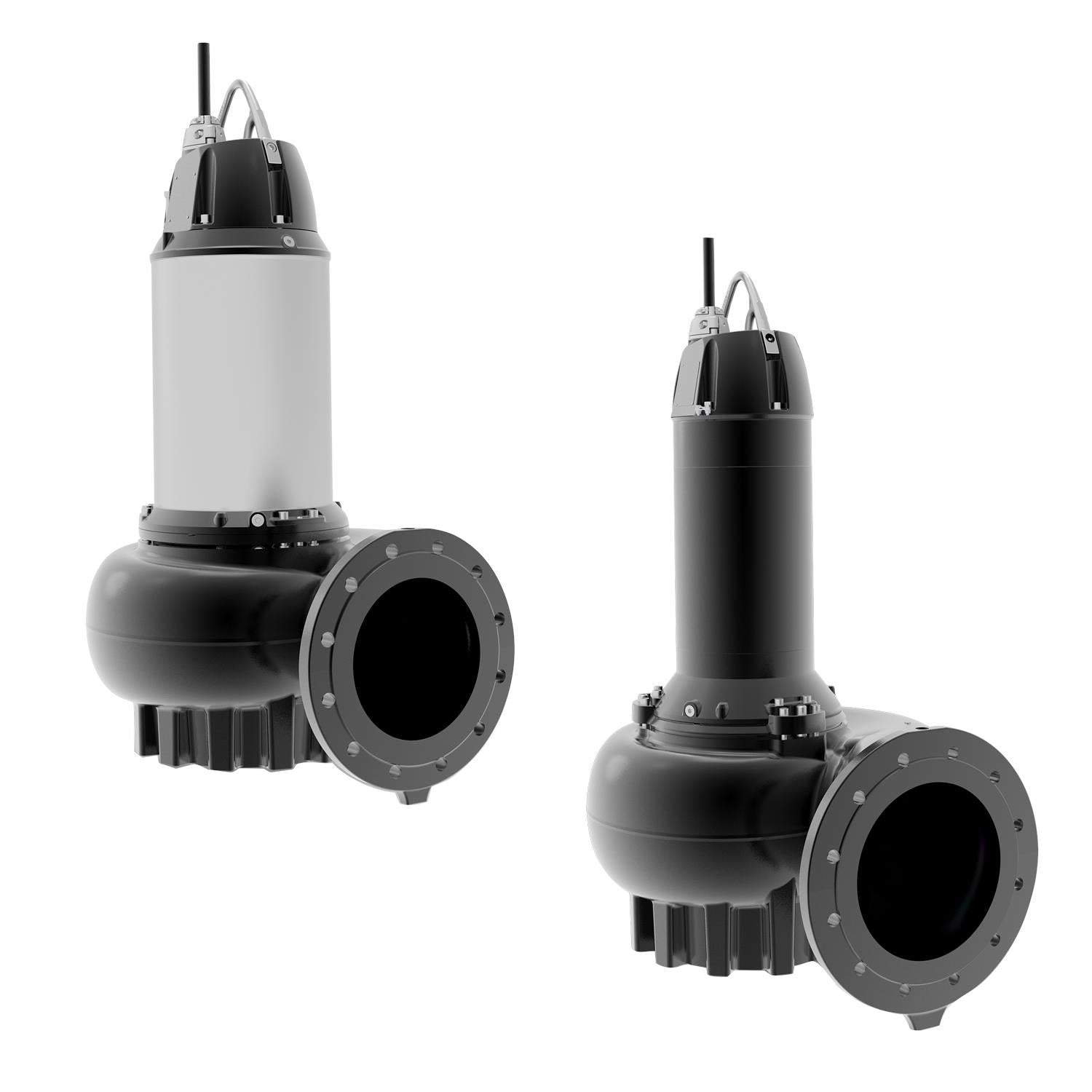

Image shown may not be actual product
Grundfos 99791050 - SEV.30.A30.420.2.52H.EX.61R.A
Grundfos 99791050 - SEV.30.A30.420.2.52H.EX.61R.A
Grundfos 99791050 - SEV.30.A30.420.2.52H.EX.61R.A
Grundfos 99791050 - SEV.30.A30.420.2.52H.EX.61R.A
Grundfos 99791050 - SEV.30.A30.420.2.52H.EX.61R.A
Grundfos 99791050 - SEV.30.A30.420.2.52H.EX.61R.A

Grundfos 99791050 - SEV.30.A30.420.2.52H.EX.61R.A

GRUNDFOSSKU: 99791050
Price:
$24,840.00
Build to order – stocked components,
Chat or Call for most up to date lead times. (781) 281-8905

Description

SEV. 30. A30. 420. 2. 52H. EX. 61R. A | Non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The pump is designed for intermittent and continous operation. The cooling jacket ensures that the pump can operate submerged or dry installed. The efficient SuperVortex impeller provides passage of long fibres and solids up to 3. 15 in and is suitable for wastewater with a dry matter content of up to 5 %. The pump comes with a high efficient Grundfos motor built on IE3 motor components. The pump is explosion-proof.

EAN 5713834340543
Applications Wastewater
Material Pricing Group 8A
Motor efficiency at full load 1 0.89
Density 62.29 lb/ft³
Size of inlet connection 4 inch
Power input P1 34.8 kW
Pressure rating PN 10
Rated voltage 3 x 230/460 V
Frame range 52
Inst vertical 92837287
Maximum installation depth 20 m
Inst dry/wet DRY/SUBMERGED
Base stand 97632229
Size of outlet connection 3 inch
Maximum current consumption 100 A
Starting current 724 A
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) H
Motor efficiency at 1/2 load 0.87
Built-in motor protection KLIXON
Net weight 743.0 lb
Number of poles 2
Rated speed 3551 rpm
Rated power - P2 31 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.89
Rated current 100/50 A
Cable type S1BC4N8-F
Voltage tolerance +10/-10 %
Explosion proof yes
Cable size 3X16+4G4+5X0.5C
Cable resistance 1.24 mOhm/m
Moisture sensor with moisture sensors
Sales region Namreg
Length of power cable 15 m
Range of ambient temperature -4 .. 104 °F
Auto-coupling 97626239
Max starts per hour 20
Winding resistance 0.088 Ohm
Inst horizontal 99867049
Cos phi 1/1 0.88
Approvals FM
Maximum flow 53.9 l/s
Flange standard ANSI
Motor Cast iron
Power 1 34.8 kW
Maximum head 255.9 ft
Size 3X16+4G4+5X0.5C
Housing Cast iron
Cos phi 1/2 0.73
Type of impeller SUPER VORTEX
Type S1BC4N8-F
Curve tolerance ANSI/HI11.6:2017 3B
Cos phi 3/4 0.85
Connection 3 inch
Max. Particle 80 mm
Impeller Cast iron
Pump housing Cast iron
Standard ANSI
Rated current at no load 28.1 A
