Premium Efficient Stainless Steel Motor, 0.33 HP, 1800 RPM, 230/460V, 56C Frame, C-Face With Feet 460V 60HZ Three Phase 33 HP Stainless Steel 56°C

WorldWide ElectricSKU: SSPE13-18-56C

Price:
Sale price$482.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

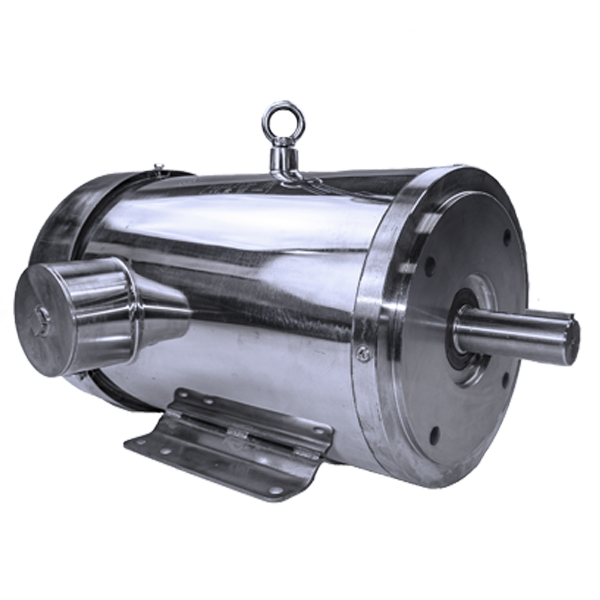

Premium Efficient Stainless Steel Motor - 0.33 HP

Introducing the WorldWide Electric Wash-down Stainless Steel Motor, designed for durability and efficiency in demanding environments. This 0.33 HP motor operates at 1800 RPM and is suitable for 230/460V three-phase applications. With a 56C frame and C-face rigid mounting, this motor is built to withstand wash-down conditions, making it ideal for food processing, chemical handling, and other rigorous applications.

Key features include:

  • Premium Efficiency for reduced energy consumption
  • TEFC (Totally Enclosed Fan Cooled) design for enhanced protection
  • Stainless Steel construction for corrosion resistance
  • 1.15 Service Factor for added reliability

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, SKU: SSPE13-18-56C, to ensure compatibility.

Upgrade your equipment with the WorldWide Electric Wash-down Stainless Steel Motor and experience the benefits of premium efficiency and robust performance.

Category Electric Motors
Approximate Weight (lbs) 28
Area of Classification Div.2 Class I, Gr. A,B,C&D T2B
Breakdown Torque (BDT) 300%
Connection Diagram 9 Lead 2Y/Y
DE Bearing 6205 2RS
DE Regreasing Interval No Need
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 74%
Efficiency 50% 58%
Efficiency 75% 68%
Enclosure Type TEFC
F1/F2 Suitable Unsuitable
Frame Size 56C
Frequency 60 HZ
Full Load Amps @ 208V 1.4
Full Load Amps @ 230V 1.2
Full Load Amps @ 460V 0.6
Full Load RPM 1745
Full Load Torque 1 lb.ft.
Grease Quantity No Need
Grease Type Mobil Polyrex EM
Horsepower 0.33
Insulation Class Class F
Inverter Rating 10:1 CT/20:1 VT
Locked Rotor Amps @ 230V 13
Locked Rotor Amps @ 460V 6.5
Locked Rotor Time (Hot) 12 seconds
Locked Rotor Torque 285%
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Moment of Inertia 0.062 lb.ft.^2
Mounting Type C-Face with Feet
NEMA Code Letter R
NEMA Design B
No Load Current @ 230V 0.78
No Load Current @ 460V 0.39
Number of Starts/Hr 12
ODE Bearing 6205 2RS
ODE Regreasing Interval No Need
Phase Three-Phase
Poles 4
Power Factor 100% 71%
Power Factor 50% 54%
Power Factor 75% 64%
Rotation Bidirectional
RPM 1800
Service Factor 1.15
Shaft Material sus304
Slip 3.06%
Sound Pressure Level 60 dB(A)
Standard NEMA MG1, UL1004
Temperature Rise (C) 80 C
Terminal Box Location F1
Voltage 230/460
