Premium Efficient Severe Duty Motor, 25 HP, 3600 RPM, 230/460V, 256TSC Frame, C-Face With Feet 460V 60HZ Three Phase 25 HP Cast Iron

WorldWide ElectricSKU: PEWWE25-36-256TSC

Price:
Sale price$1,738.47
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

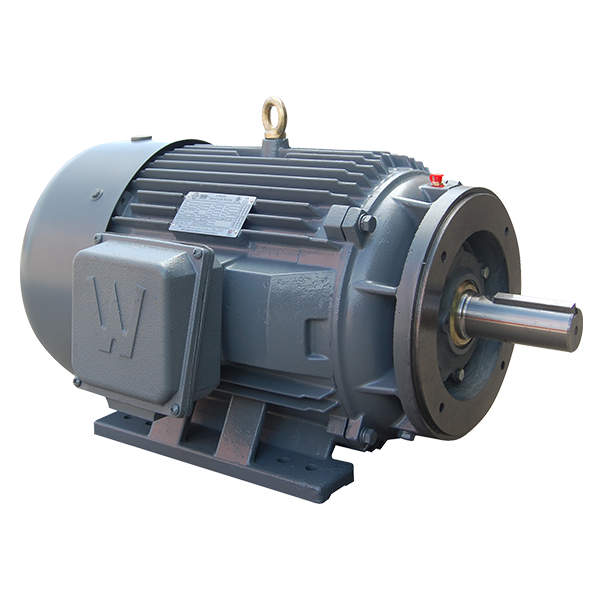

Premium Efficient Severe Duty Motor - 25 HP

Introducing the WorldWide Electric Premium Efficient Severe Duty Motor, designed for high-performance applications. This robust motor features a power rating of 25 HP and operates at 3600 RPM, making it ideal for demanding environments. With a voltage range of 230/460V and a frequency of 60 Hz, this motor is engineered for efficiency and reliability.

Key specifications include:

  • Frame Size: 256TSC
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Service Factor: 1.25 SF
  • Construction: Durable cast iron for enhanced longevity
  • Mounting: C-Face with rigid mounting feet

This severe duty motor is perfect for applications that require a reliable and efficient power source. Whether you are replacing an existing motor or upgrading your equipment, the WorldWide Electric motor is your go-to solution.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, and don’t hesitate to reach out if you need help locating the right item.

Category Electric Motors
Subcategory PE Severe Duty Motors
Approximate Weight (lbs) 309
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 92.1
Frame Size 256TSC
Frequency 60/50 HZ*
Full Load Amps 28.7
Horsepower 25
Insulation Class Class F
Mounting Type C-Face with Feet
Phase Three-Phase
RPM 3600
Service Factor 1.25
Voltage 230/460

Motor Curves
