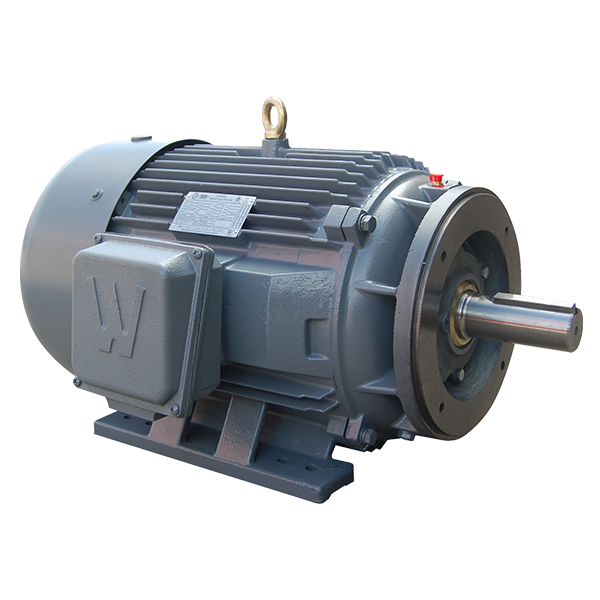

Premium Efficient Severe Duty Motor, 25 HP, 3600 RPM, 230/460V, 256TC Frame, C-Face with Feet
Roll over image to zoom in Click on image to zoom
Premium Efficient Severe Duty Motor, 25 HP, 3600 RPM, 230/460V, 256TC Frame, C-Face with Feet
WorldWide Electric Motors

Premium Efficient Severe Duty Motor, 25 HP, 3600 RPM, 230/460V, 256TC Frame, C-Face With Feet 460V 60HZ Three Phase 25 HP Cast Iron

Worldwide ElectricSKU: PEWWE25-36-256TC
Price:
$1,738.47

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Cast Iron

The WorldWide Electric PEWWE25-36-256TC (Cast Iron) for WorldWide Electric pump systems.

Part Specifications
Part Number PEWWE25-36-256TC
Material Cast Iron
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Category
Electric Motors
Subcategory
PE Severe Duty Motors
Approximate Weight (lbs)
309
Degree of Protection
IP55
Enclosure Type
TEFC
FL Efficiency (%)
92.1
Frame Size
256TC
Frequency
60/50 HZ*
Full Load Amps
28.7
Horsepower
25
Insulation Class
Class F
Mounting Type
C-Face with Feet
Phase
Three-Phase
RPM
3600
Service Factor
1.25
Voltage
230/460
