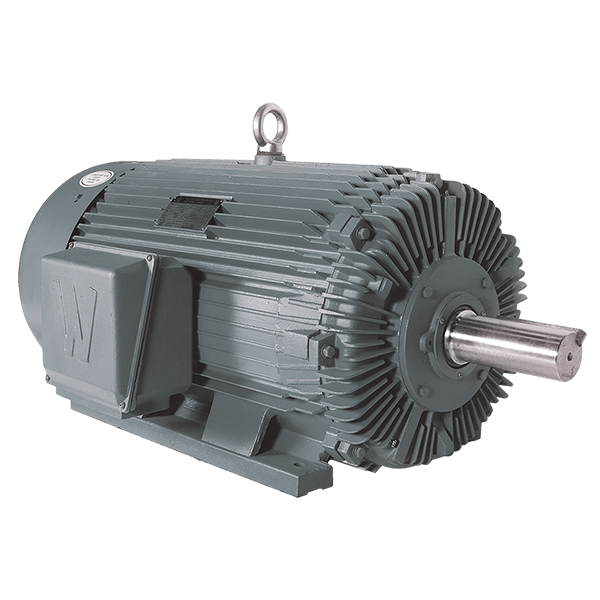

Premium Efficient Severe Duty Motor, 200 HP, 900 RPM, 230/460V, 449T Frame, Rigid Base 460V 60HZ Three Phase 200 HP Cast Iron

Worldwide ElectricSKU: PEWWE200-9-449T

Price:
Sale price$25,363.23
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Cast Iron

The WorldWide Electric PEWWE200-9-449T (Cast Iron) for WorldWide Electric pump systems.

Part Specifications
Part Number PEWWE200-9-449T
Material Cast Iron
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Category Electric Motors
Subcategory PE Severe Duty Motors
Approximate Weight (lbs) 2971
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 94.5
Frame Size 449T
Frequency 60/50 HZ*
Full Load Amps 254
Horsepower 200
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 900
Service Factor 1.25
Voltage 230/460

Motor Curves
