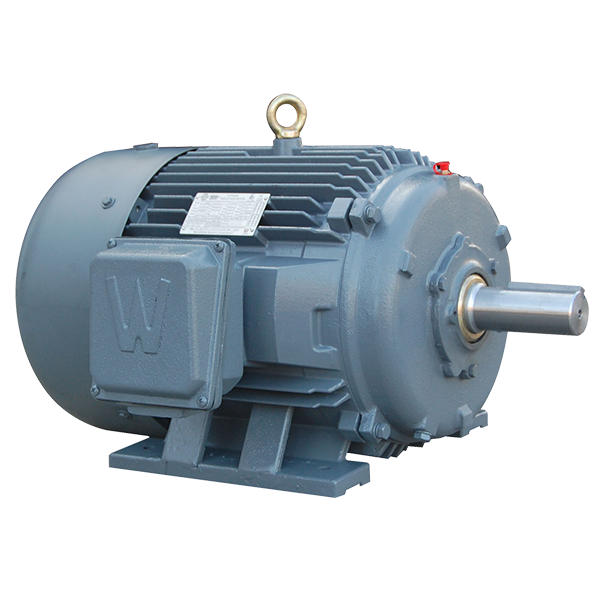

Premium Efficient Severe Duty Motor, 100 HP, 3600 RPM, 230/460V, 405TS Frame, Rigid Base, Insulated Ode Bearing 460V 60HZ Three Phase 100 HP Cast Iron

WorldWide ElectricSKU: PEWWE100-36-405TS-IB

Price:
Sale price$8,302.97
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Premium Efficient Severe Duty Motor - 100 HP

Introducing the WorldWide Electric Premium Efficient Severe Duty Motor, designed for high-performance applications requiring reliability and efficiency. This robust motor features a power rating of 100 HP and operates at 3600 RPM, making it ideal for demanding industrial environments.

Key specifications include:

  • Voltage: 230/460V
  • Frame Size: 405TS
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Service Factor: 1.25 SF
  • Construction: Durable cast iron for enhanced longevity
  • Mounting: Rigid base for stable installation
  • Insulated Bearing: ODE for improved performance

This motor is engineered for severe duty applications, ensuring premium efficiency and reliability. Whether you are replacing an existing motor or upgrading your system, the WorldWide Electric Severe Duty Motor is the perfect choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, and don’t hesitate to reach out if you need help locating the right item.

Category Electric Motors
Subcategory PE Severe Duty Motors
Approximate Weight (lbs) 1054
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 94.1
Frame Size 405TS
Frequency 60/50 HZ*
Full Load Amps 111
Horsepower 100
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 3600
Service Factor 1.25
Voltage 230/460

Motor Curves
