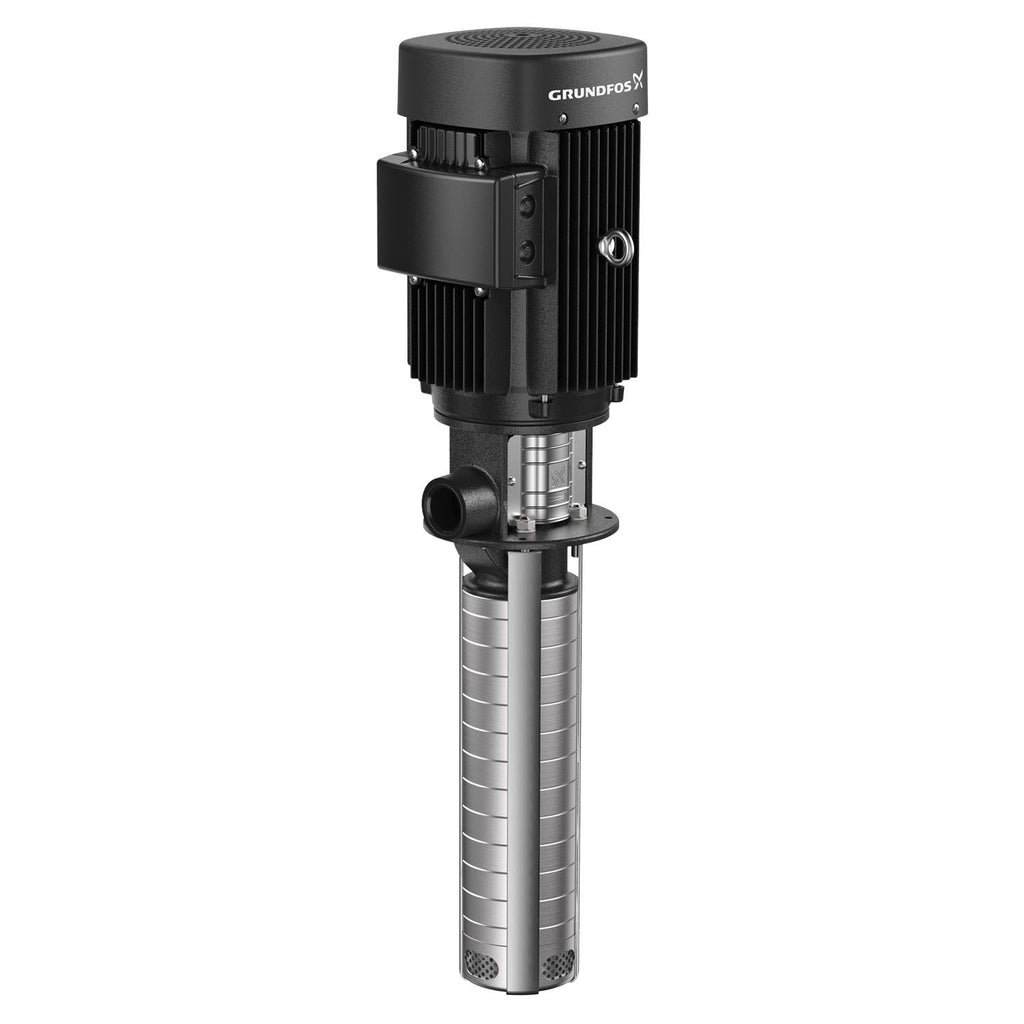

Grundfos 96515269 - MTR 3-19/19 A-M-A-HUUV
Roll over image to zoom in Click on image to zoom
Grundfos 96515269 - MTR 3-19/19 A-M-A-HUUV
Grundfos Pumps & Systems

Grundfos 96515269 - MTR 3-19/19 A-M-A-HUUV

GRUNDFOSSKU: 96515269

or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96515269 · Submersible Multistage Pump — Tank Top
MTR4HP200-230D/346-400YV3.0-Phase60 HzIE1 - IE2IP55 Dust/JettingStainless steel

The Grundfos 96515269 (MTR 3-19/19 A-M-A-HUUV) is a Submersible Multistage Pump — Tank Top. Vertical multistage pump for tank top mounting. For machine tool coolant, deionized water, and process liquid applications. Nominal performance: 15.4US gpm at 455.4ft. Rated 200-230D/346-400YV, 3.0-Phase, 60 Hz. Applications include Machining.

Power
4HP
Voltage
200-230D/346-400YV
Phase
3.0-Phase
Max Flow
15.4US gpm
Max Head
455.4ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE1 - IE2 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Tank Top Installation

MTR installs directly on the tank lid — no pipe supports, no baseplate, no inline piping modifications. Ready to run in the space the tank already occupies.

Stainless Steel Throughout

All wetted parts in stainless steel. No corrosion from coolants, deionized water, cutting fluids, or mild process chemicals.

Multistage for High Head in Small Diameter

Multiple stages in a 4" or 6" diameter column provide the head of a much larger pump. Ideal where vertical space exists but floor space is limited.

Wide Flow and Head Range

MTR series covers 0.5 to 16 m³/h flow and up to 235 m head. Confirms correct model for your system requirements.

MTRE Variable Speed Option

MTRE adds an integrated frequency converter for constant pressure control. Same tank top installation, no external VFD required.

Genuine Grundfos Parts Available

As an authorized Grundfos distributor, PumpStop stocks and can source MTR repair kits, mechanical seals, and service components.

Model Information — 96515269
Series: MTR
Impeller Material: Stainless steel
Shaft Seal: HUUV
Technical Specifications
Model Number 96515269
Product Series MTR
Series Description Submersible Multistage Pump — Tank Top
Power 4HP
Voltage 200-230D/346-400YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3430-3480rpm
Pump Speed 3472rpm
Full Load Current 11,8-11,2/6,80-6,45A
Motor Type 100LC
Motor Protection PTC
Motor Efficiency Class IE1 - IE2
Motor Efficiency IE1 84,5% - IE2 87,5%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 15.4US gpm
Nominal Head 455.4ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Outlet Connection 1 1/4inch
Pipe Standard Square / Rp
Impeller Material Stainless steel
Shaft Seal HUUV
Approvals / Certifications EAC
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 200-230D/346-400YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. MTR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — MTR Series
✓ Product Data Sheet — 96515269
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 96515269 · 96515269Authorized Grundfos Distributor · pump-stop.com
EAN
5700396719979
Approvals
EAC
Approvals for motor
EACMorocco
Built-in motor protection
PTC
Chambers
19
Code for shaft seal
HUUV
Connect code
M
Connection
1 1/4 inch
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
55 Dust/Jetting
Flange size for motor
FT130
Frequency converter
NONE
Gross weight
76.0 lb
IE efficiency
IE1 84
IE Efficiency class
IE1 - IE2
Immersion depth
18.3 in
Impeller
Stainless steel
Impellers
0
Insulation class (IEC 85)
F
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Material code
A
Material Pricing Group
32
Max pressure at stated temp
363 psi / 194 °F
Maximum ambient temperature
140 °F
Maximum operating pressure
25 bar
Minimum efficiency index, MEI ≥
0.7
Model
A
Motor
FT130
Motor efficiency at 1/2 load
85.0-83.9 %
Motor efficiency at 3/4 load
85.0-85.6 %
Motor efficiency at full load 1
84.5-87.5 %
Motor standard
IEC
Motor type
100LC
Net weight
67.2 lb
Number of poles
2
Number of reduced-diameter impellers
0
Power factor 1
0.89-0.86
Pump speed on which pump data are based
3472 rpm
Pump version
A
Pumped liquid
Emulsion
Rated current
11
Rated flow
15.4 US gpm
Rated head
455.4 ft
Rated power - P2
3 kW
Rated speed
3430-3480 rpm
Rated voltage
3 x 200-230D/346-400Y V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature
68 °F
Size of outlet connection
1 1/4 inch
Standard
IEC
Starting current
800-960 %
Suitable for 50/60 Hz
N
Terminal box position
6
Type
100LC
Type of connection
Square / Rp
Version
A
