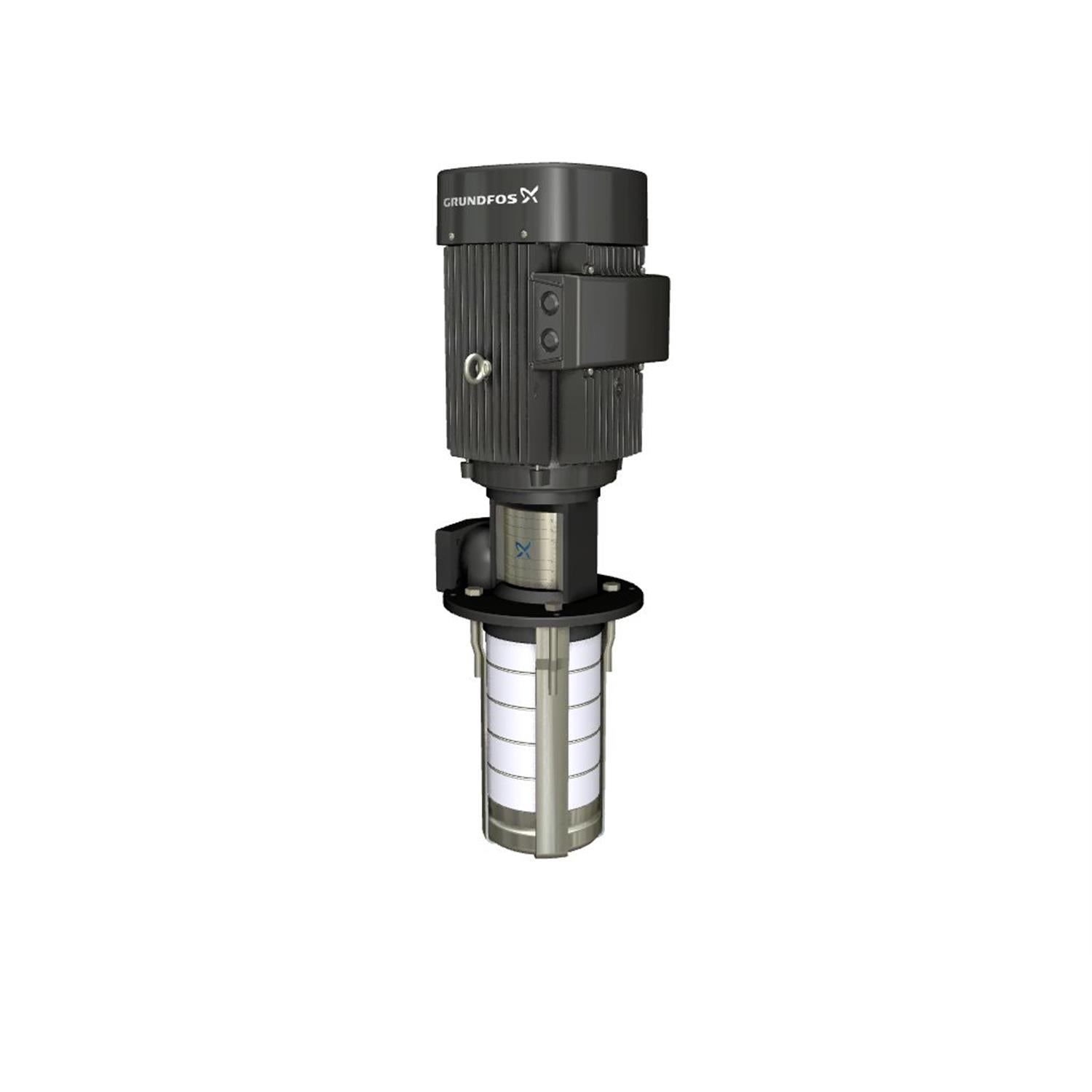

![Grundfos 98798753 - MTR 3-17/17 A-M-A-HUUV]()
![Grundfos 98798753 - MTR 3-17/17 A-M-A-HUUV]()
![Grundfos 98798753 - MTR 3-17/17 A-M-A-HUUV]()
![Grundfos 98798753 - MTR 3-17/17 A-M-A-HUUV]()
Description
MTR 3-17/17 A-M-A-HUUV | Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics: Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of Stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling.
Flange connection for easy installation and replacement. Counterflange is included. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor. Immersion depth:
EAN
5712601521901
Material Pricing Group
32
Approvals
CE
Standard
IEC
Motor efficiency at full load 1
86.5-86.5 %
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
140 °F
Material code
A
Immersion depth
16.9 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.88-0.80
Selected liquid temperature
68 °F
Type of connection
Square / Rp
Rated voltage
3 x 230-277D/400-480Y V
Flange size for motor
FT115
Pumped liquid
Water
Size of outlet connection
1 1/4 inch
Starting current
820-1050 %
Connect code
M
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
89.2-86.3 %
Built-in motor protection
NONE
Net weight
59.9 lb
Number of poles
2
Rated speed
3480-3530 rpm
Gross weight
67.9 lb
Rated power - P2
2.2 kW
Enclosure class (IEC 34-5)
55 Dust/Jetting
Motor efficiency at 3/4 load
89.5-88.5 %
Rated current
7
Cable gland entry
4xM20 knock out
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
90HA
Terminal box position
6
Pump speed on which pump data are based
3501 rpm
Approvals
CE
Rated flow
15.4 US gpm
Model
A
Version
A
Motor
FT115
Chambers
17
Motor standard
IEC
Rated head
400.3 ft
Type
90HA
Curve tolerance
ISO9906:2012 3B
Impellers
0
Suitable for 50/60 Hz
N
Connection
1 1/4 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
0
Standard
IEC
Pump version
A
