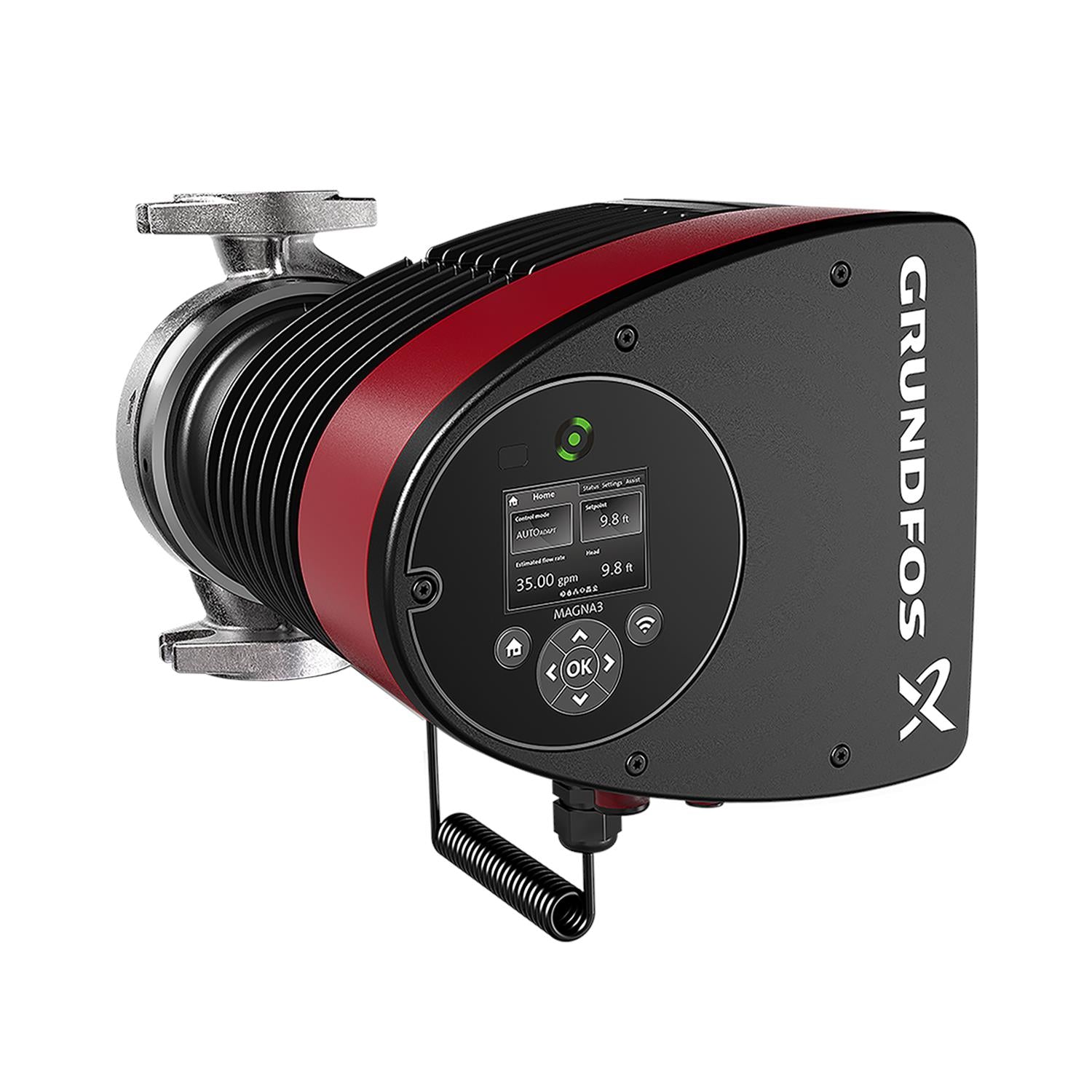

![Grundfos 98126810 - MAGNA3 40-180 F N]()
![Grundfos 98126810 - MAGNA3 40-180 F N]()
![Grundfos 98126810 - MAGNA3 40-180 F N]()
![Grundfos 98126810 - MAGNA3 40-180 F N]()
![Grundfos 98126810 - MAGNA3 40-180 F N]()
![Grundfos 98126810 - MAGNA3 40-180 F N]()
Description
Grundfos 98126810 - MAGNA3 40-180 F N This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
61.35 lb/ft³
Maximum operating pressure
174.05 psi
Selected liquid temperature
140 °F
Rated voltage
1 x 115 V
Pumped liquid
Water
Power input - P1
16 .. 606 W
Maximum current consumption
5.26 A
Liquid temperature range
14 .. 230 °F
Insulation class (IEC 85)
F
Energy (EEI)
0.19
Net weight
32.2 lb
Gross weight
35.6 lb
Enclosure class (IEC 34-5)
X4D
Pressure rating for connection
PN 12
Pipe connection
GF15/26/40/43
Range of ambient temperature
32 .. 104 °F
Minimum current consumption
0.26 A
Approvals
cETLus, Proposition 65
Rated flow
62.1 US gpm
Flange standard
GF
Model
E
Length
8 9/16 in
Maximum head
59.06 ft
Housing
Stainless steel
Approvals for drinking water
NSF
Rated head
31.5 ft
TF class
110
Connection
PN 12
Impeller
Composite
Pump housing
Stainless steel
Standard
GF
