Description

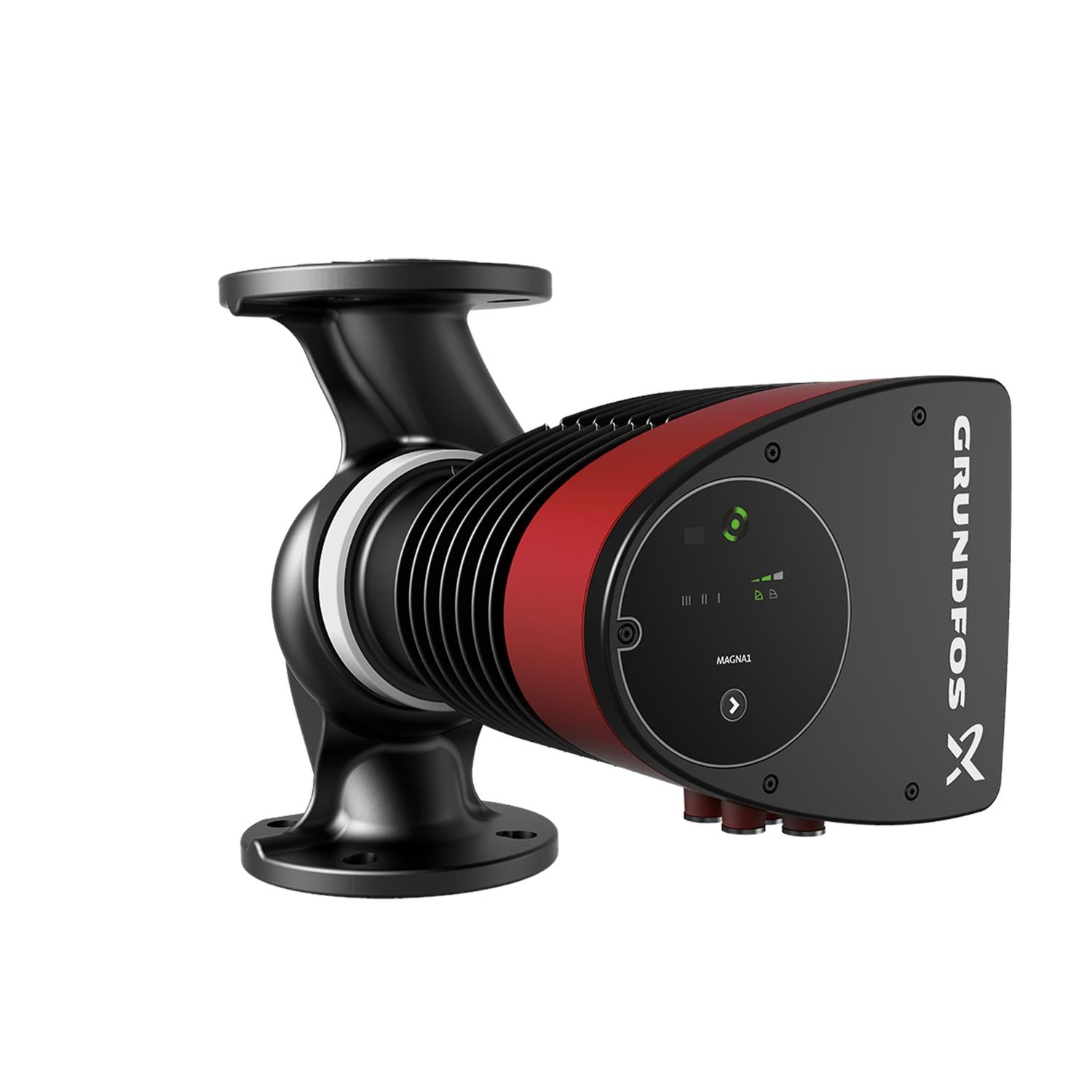

Grundfos 98126847 - MAGNA1 65-120 F This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
61.35 lb/ft³
Maximum operating pressure
174.05 psi
Selected liquid temperature
140 °F
Rated voltage
1 x 208-230 V
Pumped liquid
Water
Power input - P1
24 .. 774 W
Maximum current consumption
3.42 A
Liquid temperature range
14 .. 230 °F
Insulation class (IEC 85)
F
Energy (EEI)
0.18
Net weight
47.6 lb
Gross weight
52.6 lb
Enclosure class (IEC 34-5)
X4D
Pressure rating for connection
PN 12
Pipe connection
GF53/65
Range of ambient temperature
32 .. 104 °F
Minimum current consumption
0.26 A
Approvals
cETLus, Proposition 65
Flange standard
GF
Model
B
Length
13 7/16 in
Maximum head
39.37 ft
Housing
Cast iron
TF class
110
Connection
PN 12
Impeller
Composite
Pump housing
Cast iron
Standard
GF
