Description

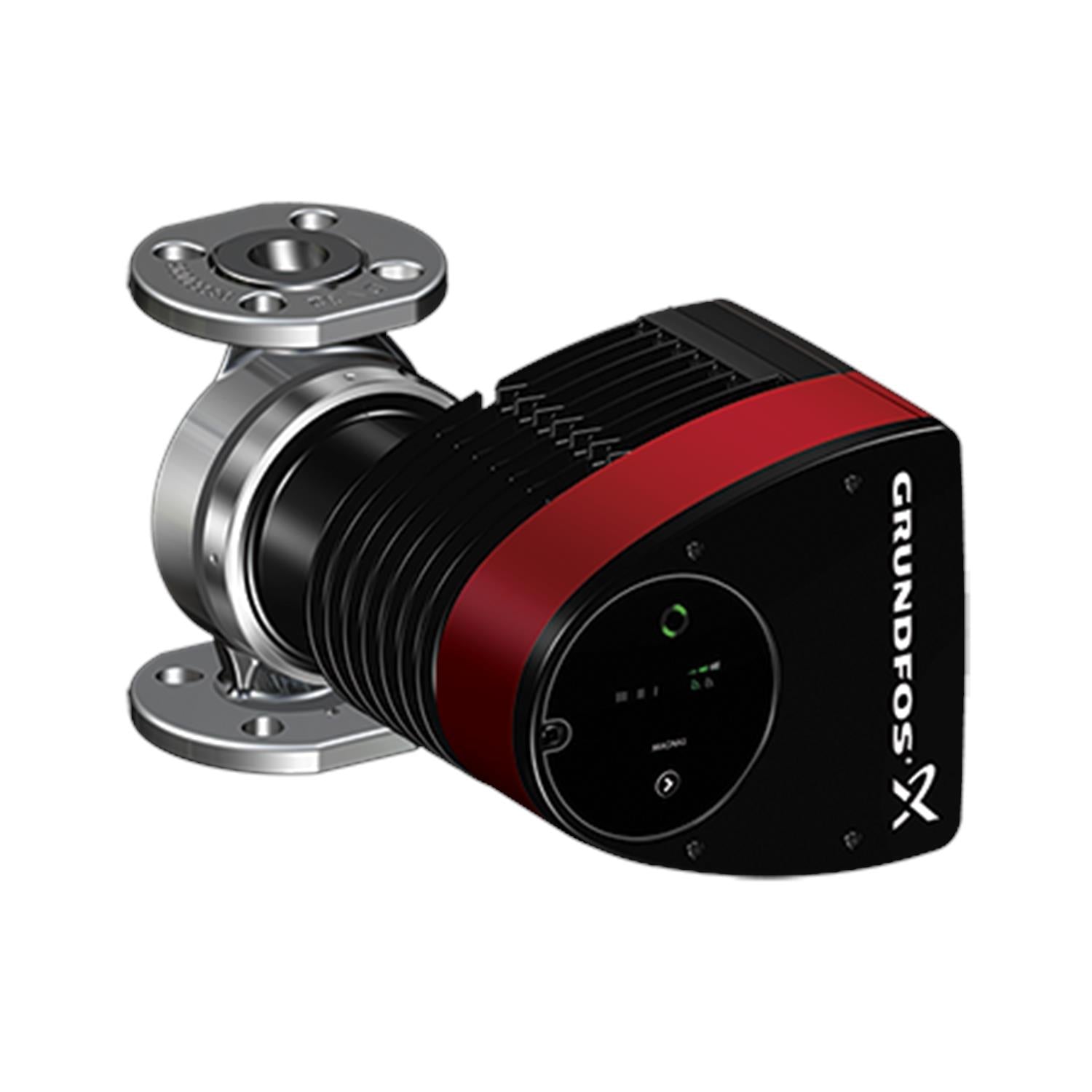

Grundfos 98126829 - MAGNA1 40-80 F N This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
61.35 lb/ft³
Maximum operating pressure
174.05 psi
Selected liquid temperature
140 °F
Rated voltage
1 x 208-230 V
Pumped liquid
Water
Power input - P1
17 .. 260 W
Maximum current consumption
1.2 A
Liquid temperature range
14 .. 230 °F
Insulation class (IEC 85)
F
Energy (EEI)
0.2
Net weight
36.3 lb
Gross weight
40.2 lb
Enclosure class (IEC 34-5)
X4D
Pressure rating for connection
PN 12
Pipe connection
GF15/26/40/43
Range of ambient temperature
32 .. 104 °F
Minimum current consumption
0.21 A
Approvals
cETLus, Proposition 65
Flange standard
GF
Model
B
Length
8 9/16 in
Maximum head
26.25 ft
Housing
Stainless steel
Approvals for drinking water
NSF
TF class
110
Connection
PN 12
Impeller
Composite
Pump housing
Stainless steel
Standard
GF
Motor Curves
