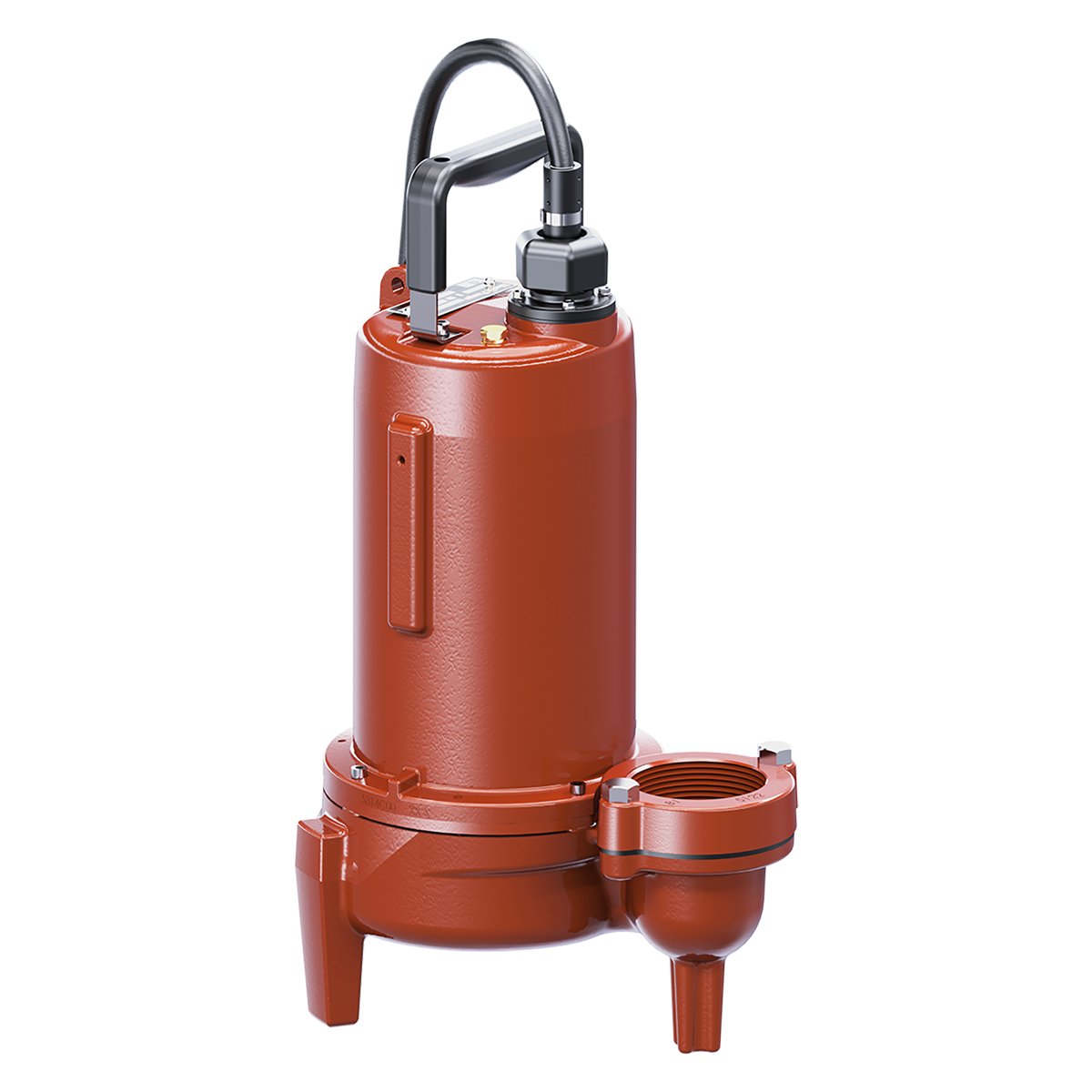

Liberty LE102M3, LE100 Series, Manual Submersible Sewage Pump, 1 HP, 208-230 Volts, 1 Phase, 3" Flanged Discharge, 190 GPM Max, 39 ft Max Head, 10 ft Cord

This item ships free!
LibertySKU: LE102M3

Price:
Sale price$857.69
or Call for most up to date lead times. (781) 281-8905

Description

FEATURES The Liberty Pump LE102M3 is a manual 230v, 1 HP submersible sewage pump with a 10' quick disconnect power cord. A separate approved pump control device or panel for this submersible sewage pump is required for automatic operation. Made of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners, this sewage pump allows for passage of 2" solids. Features: Rugged 2 vane, semi-open cast iron impellers Cast iron housings and volute with all stainless and brass fasteners 416 stainless steel rotor shaft Oil-filled, hermetically sealed motors Built-in thermal protection on single phase models Permanently lubricated upper and lower ball bearings Unitized shaft seals Single float mechanical level control with series plug for manual bypass operation-standard on single-phase automatic models Adjustable pumping range Control Panel Options Below are Liberty control panels that can be used with this pump. SXL21=3 SXL24=3 AE21L=3 AE21L=4 AE24L=3 AE24L=4 IPS-24L IPD-24L

Motor Curves
