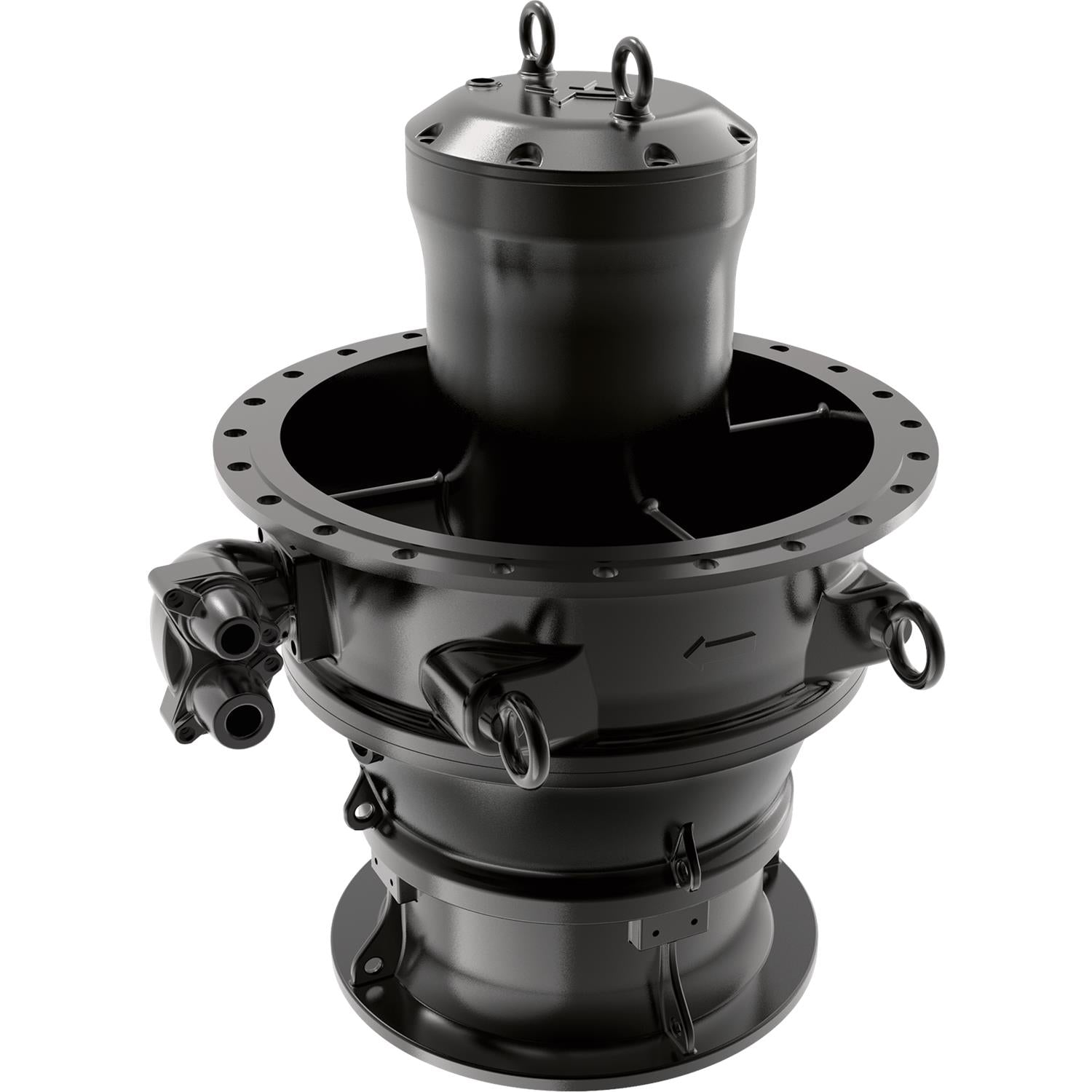

Grundfos 99553393 - KPG.24.25.8.T.60.19.E.46

GRUNDFOSSKU: 99553393

Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

KPG. 24. 25. 8. T. 60. 19. E. 46 | The Grundfos KPG axial flow propeller pump range is the ideal choice for flood and storm water control. The KPG range is designed for permanent and submerged installation in gate pump installations requiring limited space e. g. in residential or commercial areas. The KPG range is built on Grundfos’ well known KPL pump range fitted with extra low head hydraulics i. e. KPL. E. Grundfos KPG pumps are offered in different installation variants designed to meet customer needs such as: Horizontal installation typeWhere the KGP pump is installed horizontally and submerged in a pump gate which can be lifted and lowered vertically. Vertical installation typeWhere the KGP pump is installed vertically and submerged in a pump gate which can be lifted and lowered vertically. Hydraulic cylinder installation typeWhere the KGP pump is installed horizontally and submerged in a pump gate which can be opened and closed by means of hydraulic forces, etc. KPG pumps facilitates easy transportation and installation on site as well as fixation of the power supply cable. The pumps are made of resistant materials, such as cast iron and stainless steel. These materials as well as the unique hydraulic design ensures an outstanding operational reliability and durability. The pumps are very service friendly and they feature a wide range of unique features such as a double mechanical shaft seal built into a cartridge design. The cartridge shaft seal ensures optimal alignment of the shaft seal faces and easy and fast replacement in the field; even without the need of special tools.

EAN 5713830935538
Motor efficiency at full load 1 0.865
Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 10 bar
Size of inlet connection 17.7 inch
Selected liquid temperature 68 °F
Power input P1 22 kW
Moisture switch Y
Type of connection ANSI
Rated voltage 3 x 460 V
Pumped liquid Water
Moment of inertia 64.07 lb ft²
Size of outlet connection 23.6 inch
Length of sensor cable 10 m
Maximum current consumption 37 A
Starting current 185 A
Mains frequency 60 Hz
Insulation class (IEC 85) F
Breakdown torque 477 Nm
Motor efficiency at 1/2 load 0.845
Built-in motor protection PTO/PT100
Net weight 1300.0 lb
Number of poles 8
Rated speed 875 rpm
Gross weight 1610.0 lb
Rated power - P2 19 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.86
Cable type PNCT-S
Service factor 1.15
Power cable type PNCT-S
Length of power cable 10 m
Number of power cables 1
Max starts per hour 15
Cos phi 1/1 74.5
Approvals CE
Rated flow 7240 US gpm
Maximum flow 2122 m³/h
Minimum flow 1342 m³/h
Diameter 15 in
Power 1 22 kW
Maximum head 10.5 ft
Housing Cast iron
Cos phi 1/2 57.5
Rated head 9.187 ft
Actual impeller diameter 15 in
Type of impeller Propeller
Type PNCT-S
Cos phi 3/4 69.6
Connection 23.6 inch
Max. Particle 75 mm
Impeller Stainless steel
Pump housing Cast iron
Switch Y
No. of blades 3
