Description

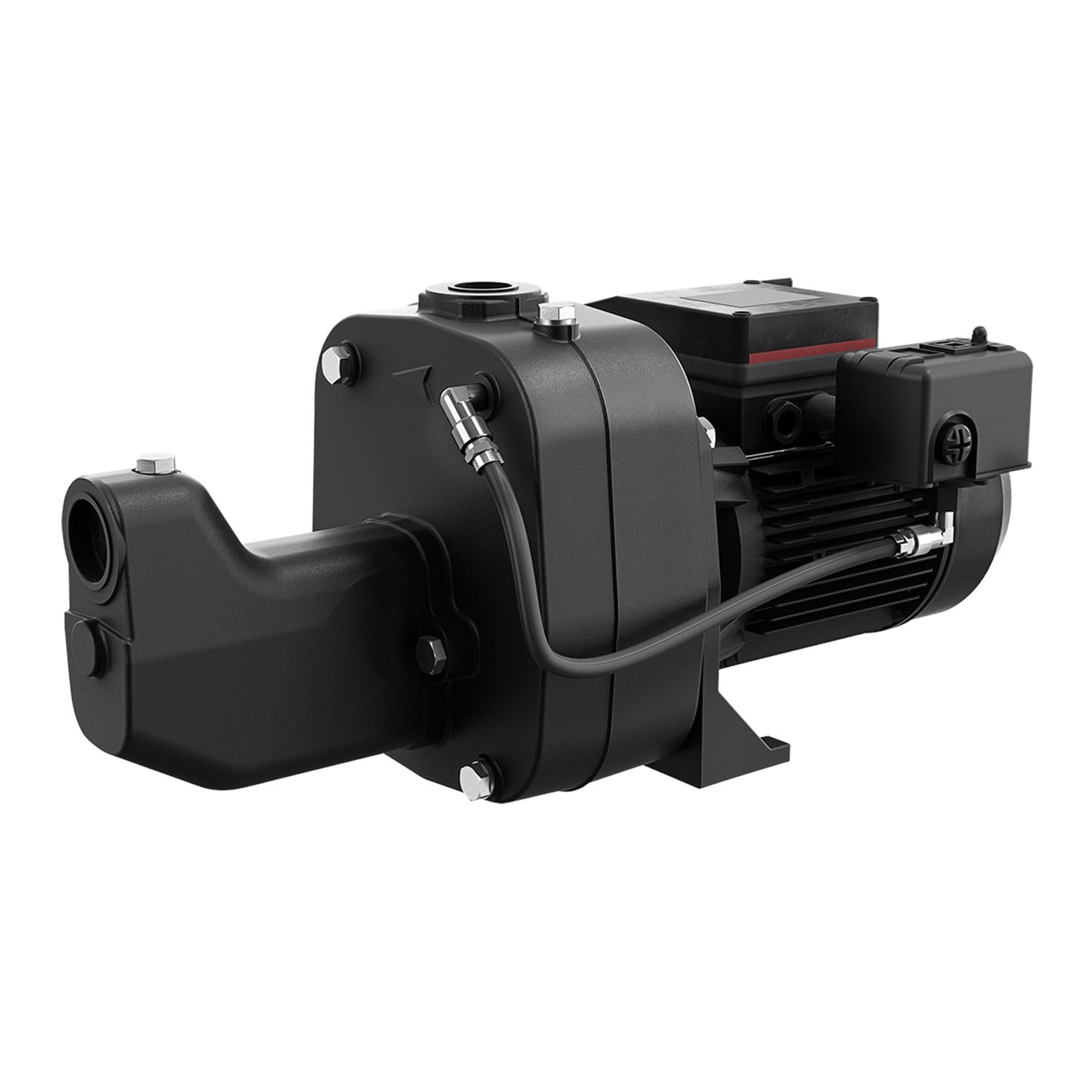

The Grundfos 97855091 (JP15S-CI PS) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 220-230V, 1.0-Phase, 60 Hz. Applications include Residential groundwater intake, Residential rainwater harvesting, Residential water pressure boosting.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 97855091 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Voltage | 220-230V |
| Phase | 1.0-Phase |
| Frequency | 60 Hz |
| Full Load Current | 8A |
| Insulation Class | F |
| Protection Class (IP) | IP44 |
| Max Operating Pressure | PN 6bar |
| Max Fluid Temperature | 104°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | 1 1/4inch |
| Outlet Connection | 1inch |
| Impeller Material | Composite |
| Housing Material | Cast iron |
| Shaft Seal | CVBP |
| Approvals / Certifications | CSA |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 220-230V, 1.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5710625878568
- Applications
- Pressure boosting
- Approvals
- CSA
- Approvals and markings
- 61 m
- Battery back-up
- 61 m
- Capacitor size - run
- 32 µF/450 V
- Colour
- 61 m
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP44
- Flow range
- 61 m
- Gross weight
- 70.6 lb
- Head max
- 61 m
- Housing
- Cast iron
- Impeller
- Composite
- Insulation class (IEC 85)
- F
- Length
- 61 m
- Liquid temperature range
- 32 .. 104 °F
- Mains frequency
- 60 Hz
- Material code
- A
- Material Pricing Group
- 9
- Maximum operating pressure
- 6 bar
- Motor
- 61 m
- Net weight
- 70.6 lb
- Number of leads
- 61 m
- Pipework connection
- 61 m
- Power 1
- 1700 W
- Power input - P1
- 1700 W
- Pressure retention valve
- 61 m
- Primary shaft seal
- CVBP
- Product family
- JP PS
- Pump housing
- Cast iron
- Pump inlet
- NPT 1,25
- Pump outlet
- NPT 1
- Pump version
- A
- Pumped liquid
- Water
- Range of ambient temperature
- 14 .. 104 °F
- Rated current
- 0.3333333333333333
- Rated voltage
- 1 x 220-230 V
- Real Time
- 1 Available on 1/5/2024 Plant: Allentown Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
- Sens.interface
- 61 m
- Type of cable plug
- NONE
- Valve type
- 61 m
- Version
- A
