Jet Pump Motor, ODP Enclosure, 0.75 HP, 3600 RPM, 230/460V, 56C Frame, C-Face With Removable Base

WorldWide ElectricSKU: ODPJ34-36-56CB

Price:
Sale price$302.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

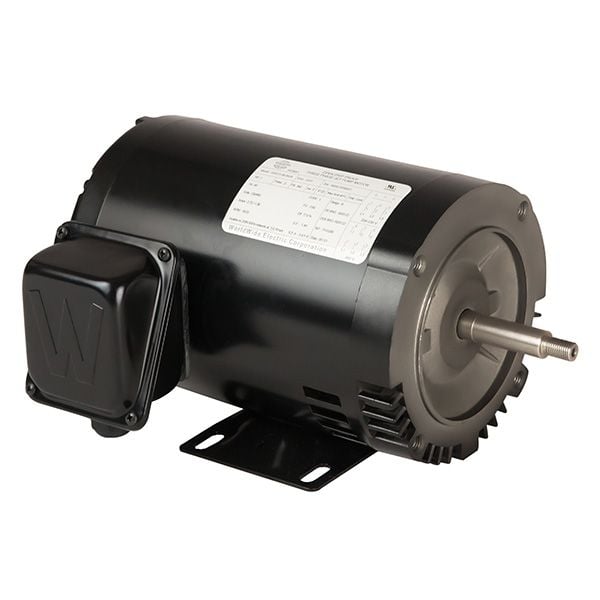

WorldWide Electric Jet Pump Motor - ODP Enclosure

Introducing the WorldWide Electric Jet Pump Motor, designed for optimal performance in various pumping applications. This robust motor features a 0.75 HP power rating and operates at a high speed of 3600 RPM, ensuring efficient water movement for your needs. With a voltage rating of 230/460V and a 56C frame, this C-Face motor comes with a removable base for easy installation and maintenance.

Ideal for jet pump applications, this ODP (Open Drip Proof) enclosure motor is built to withstand the rigors of demanding environments while providing reliable operation. Whether you're replacing an old motor or upgrading your system, this product is a perfect choice.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don't hesitate to reach out if you're having trouble finding the right item!

SKU: ODPJ34-36-56CB

Tags: Electric Motors, Jet Pump - ODP, Jet Pump Motors, Pump Motors, World Wide Electric Motors & Drives

Subcategory Jet Pump Motors
Approximate Weight (lbs) 23.6
Degree of Protection IP23
Enclosure Type ODP
FL Efficiency (%) 76.8
Frame Size 56C
Full Load Amps 1
Horsepower 0.75
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Shaft Type Keyed Shaft
Voltage 230/460

Motor Curves
