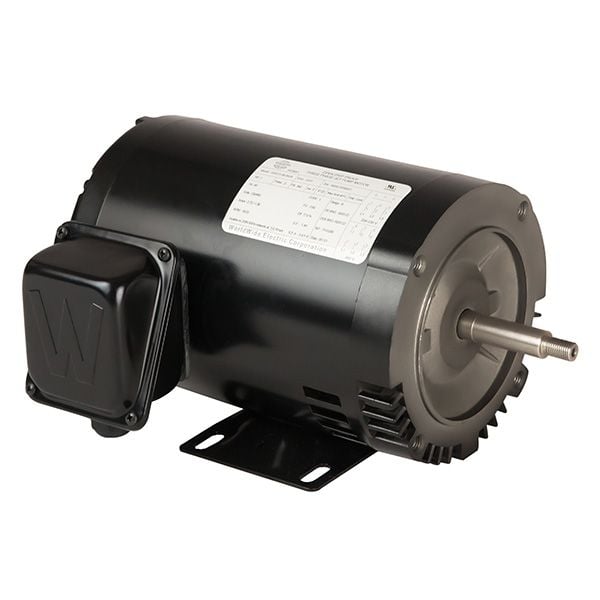

Jet Pump Motor, ODP Enclosure, 0.5 HP, 3600 RPM, 230/460V, 56J Frame, C-Face With Removable Base

WorldWide ElectricSKU: ODPJ12-36-56JB

Price:
Sale price$276.23
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Jet Pump Motor - ODP Enclosure

Introducing the WorldWide Electric Jet Pump Motor, designed for reliable performance in various pumping applications. This 0.5 HP motor operates at 3600 RPM and is compatible with both 230V and 460V power supplies, making it a versatile choice for your needs. The 56J frame and C-face design with a removable base ensure easy installation and maintenance.

Whether you're replacing an old motor or upgrading your system, this jet pump motor is engineered for efficiency and durability. Pump-Stop is your preferred source for replacement pumps and parts, ensuring you find the right fit for your application.

For assistance, please check your current pump for the exact part number or SKU that matches this product (SKU: ODPJ12-36-56JB). If you have any questions or need help finding the right item, don't hesitate to call us at (781) 281-8905.

Subcategory Jet Pump Motors
Approximate Weight (lbs) 21.6
Degree of Protection IP23
Enclosure Type ODP
FL Efficiency (%) 73.4
Frame Size 56J
Full Load Amps 0.9
Horsepower 0.5
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Shaft Type Threaded Shaft
Voltage 230/460

Motor Curves
