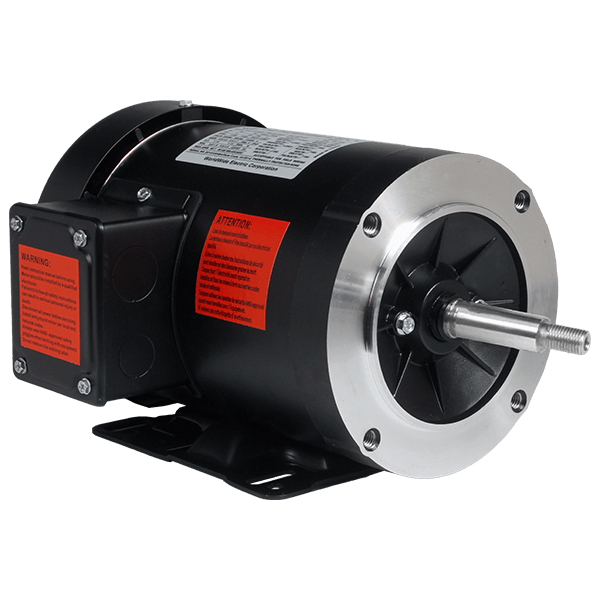

Jet Pump Motor, 3 HP, 3600 RPM, 230/460V, 56J Frame, C-Face With Removable Base 460V 60HZ Three Phase 3 HP 56°C

WorldWide ElectricSKU: NATJE3-36-56JB

Price:
Sale price$412.40
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Jet Pump Motor - 3 HP

Introducing the NATJE 3 HP Jet Pump Motor from WorldWide Electric, designed for high performance and reliability. This robust motor operates at 3600 RPM and is suitable for 3-phase applications with a voltage range of 208-230/460V and a frequency of 60 Hz. With a 1.15 service factor, this motor ensures optimal efficiency and durability.

Key features include:

  • 56C Frame for versatile mounting options
  • Totally Enclosed Fan Cooled (TEFC) design for enhanced protection against dust and moisture
  • Constructed from rolled steel for added strength and longevity
  • C-Face removable base for easy installation and maintenance
  • Threaded shaft for secure coupling with pumps

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor (SKU: NATJE3-36-56JB). If you encounter any difficulties, our team is here to help you find the perfect solution.

Category Electric Motors
Subcategory Jet Pump Motors
Approximate Weight (lbs) 39
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 86.5
Frame Size 56J
Frequency 60/50 HZ*
Full Load Amps 3.69
Horsepower 3
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Shaft Type Threaded Shaft
Voltage 230/460

Motor Curves
