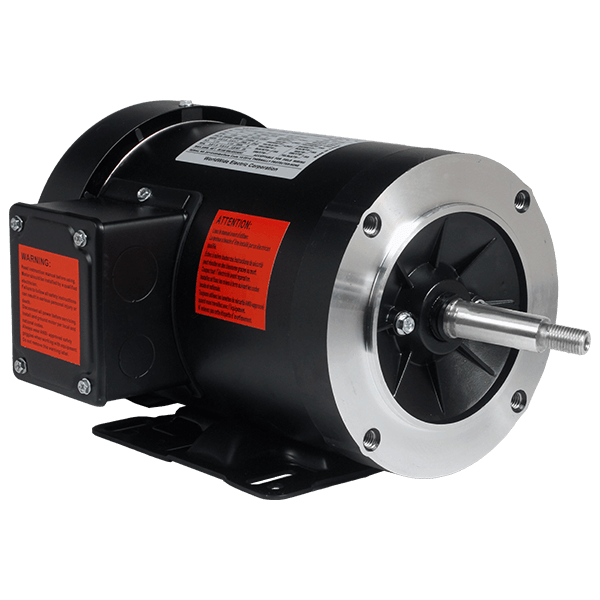

Jet Pump Motor, 2 HP, 3600 RPM, 230/460V, 56J Frame, C-Face With Removable Base 460V 60HZ Three Phase 2 HP 56°C

WorldWide ElectricSKU: NATJE2-36-56JB

Price:
Sale price$323.49
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Jet Pump Motor - 2 HP

Introducing the NATJE 2 HP Jet Pump Motor from WorldWide Electric, designed for high performance and reliability. This robust motor operates at 3600 RPM and is suitable for three-phase applications with a voltage rating of 230/460V. With a 56C frame and a totally enclosed fan-cooled (TEFC) design, this motor ensures optimal efficiency and durability in demanding environments.

Key features include:

  • Power: 2 HP
  • Speed: 3600 RPM
  • Voltage: 230/460V, 60 Hz
  • Frame: 56C
  • Type: C-Face with Removable Base Mounting
  • Construction: Rolled Steel for enhanced strength
  • Efficiency: Premium efficiency for cost savings
  • Shaft: Threaded for easy installation

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the NATJE2-36-56JB to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

Category Electric Motors
Subcategory Jet Pump Motors
Approximate Weight (lbs) 34
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 85.5
Frame Size 56J
Frequency 60/50 HZ*
Full Load Amps 2.61
Horsepower 2
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Shaft Type Threaded Shaft
Voltage 230/460
