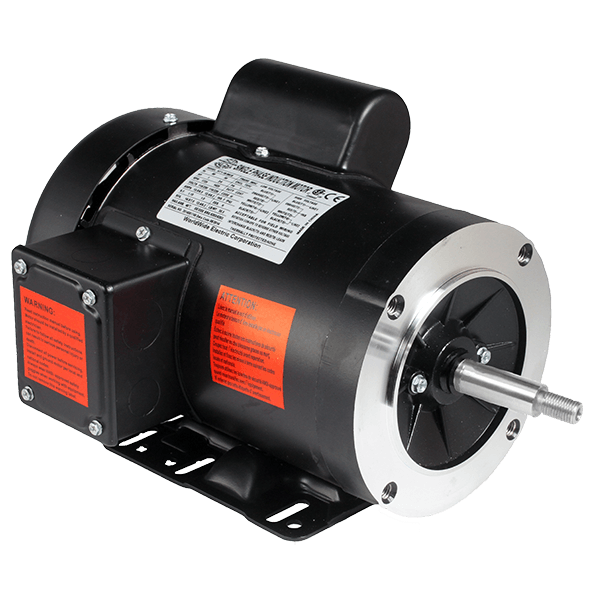

Jet Pump Motor, 2 HP, 3600 RPM, 115/230V, 56J Frame, C-Face With Removable Base 230V 60HZ Single Phase 2 HP 56°C

WorldWide ElectricSKU: NTJ2-36-56JB

Price:
Sale price$348.88
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Jet Pump Motor - 2 HP

Introducing the WorldWide Electric Jet Pump Motor, a powerful and efficient solution for your pumping needs. This 2 HP motor operates at 3600 RPM and is designed for single-phase applications with a voltage range of 115/230V. Built with a robust 56C frame and a Totally Enclosed Fan Cooled (TEFC) design, this motor ensures durability and reliability in various environments.

Key features include:

  • 2 HP power output
  • 3600 RPM speed for optimal performance
  • 115/230V voltage compatibility
  • 56C frame for easy installation
  • C-Face removable base for versatile mounting options
  • Threaded shaft for secure connections
  • Standard efficiency for cost-effective operation

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor (SKU: NTJ2-36-56JB). If you encounter any difficulties, our team is here to help you find the perfect solution.

Category Electric Motors
Subcategory Jet Pump Motors
Approximate Weight (lbs) 37
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 75.0
Frame Size 56J
Frequency 60/50 HZ*
Full Load Amps 8.6
Horsepower 2
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Single-Phase
RPM 3600
Service Factor 1.15
Shaft Type Threaded Shaft
Voltage 115/230

Motor Curves
