Jet Pump Motor, 1 HP, 3600 RPM, 230/460V, 56C Frame, C-Face With Removable Base 460V 60HZ Three Phase 1 HP 56°C

WorldWide ElectricSKU: NATJE1-36-56CB

Price:
Sale price$239.15
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

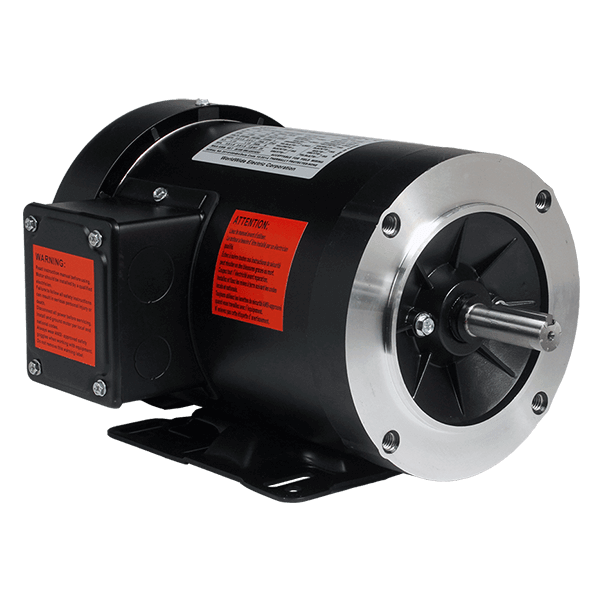

WorldWide Electric Jet Pump Motor - 1 HP

Introducing the WorldWide Electric Jet Pump Motor, a high-performance solution designed for reliable operation in various pumping applications. This 1 HP motor operates at 3600 RPM and is compatible with 230/460V power supply, making it an ideal choice for both residential and commercial use.

Key features include:

  • 56C Frame for easy installation and compatibility
  • TEFC (Totally Enclosed Fan Cooled) design for enhanced durability and protection against environmental factors
  • Premium Efficiency for reduced energy consumption and lower operating costs
  • C-Face Removable Base for versatile mounting options
  • Keyed Shaft for secure coupling with pumps

This motor is built from rolled steel to ensure longevity and withstand demanding conditions. With a service factor of 1.15, it provides reliable performance even under heavy loads.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and don’t hesitate to reach out if you need help locating the right item.

Upgrade your pumping system with the WorldWide Electric Jet Pump Motor today!

Supplier Part Number 8501.51.6040
Category Electric Motors
Subcategory Jet Pump Motors
Approximate Weight (lbs) 23
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 77.0
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 1.5
Horsepower 1
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Shaft Type Keyed Shaft
Voltage 230/460
